Universal handle bar, bail arm for enclosures
Scroll

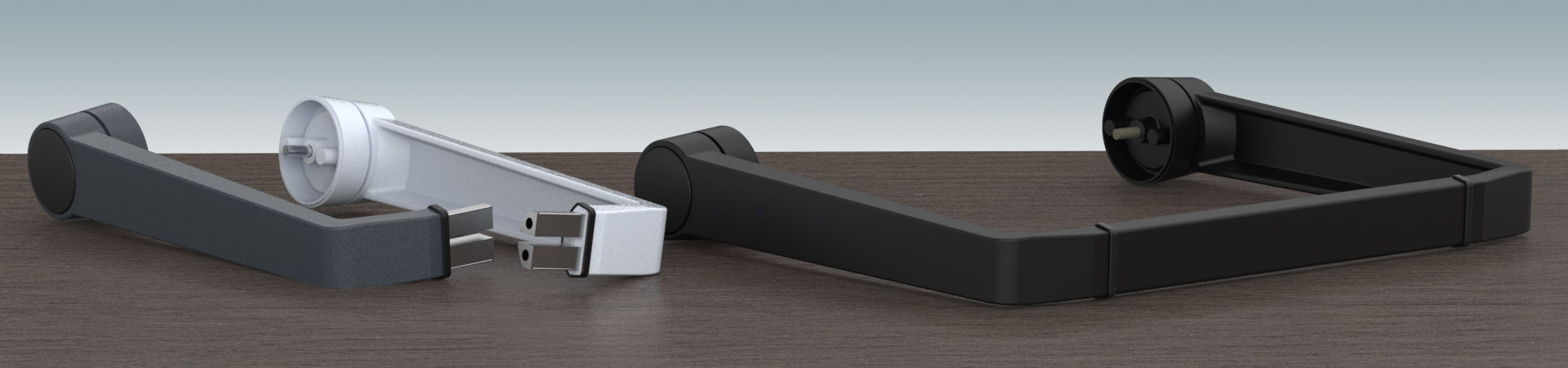

Universal Bail arms

  • Tilt and swivel carry handle bars/bail arms made of diecast zinc
  • With matching aluminum profile, cut to the correct width for your enclosure, and supplied as a separate component.
Generate PDF
  • Browse Full List
  • Catalog Documents

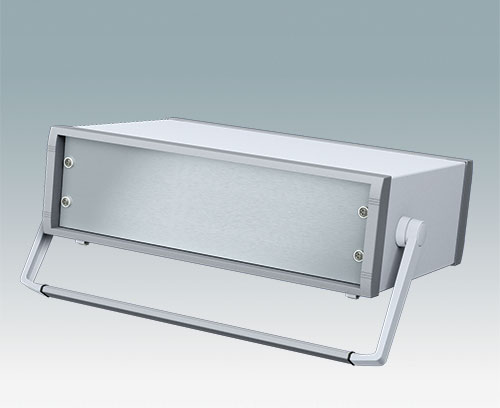

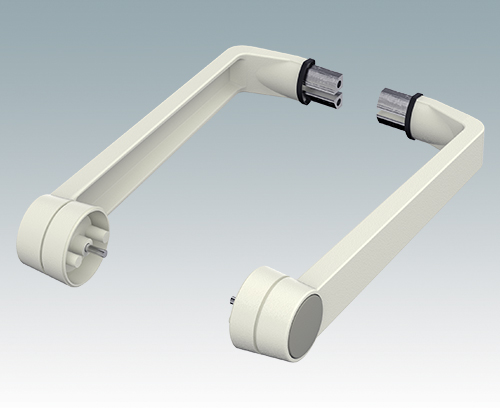

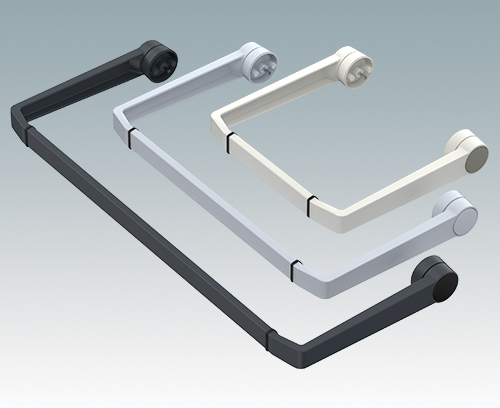

A9300014 Side arm kit

A9300014

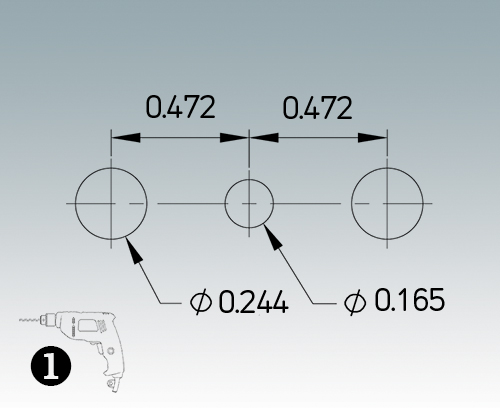

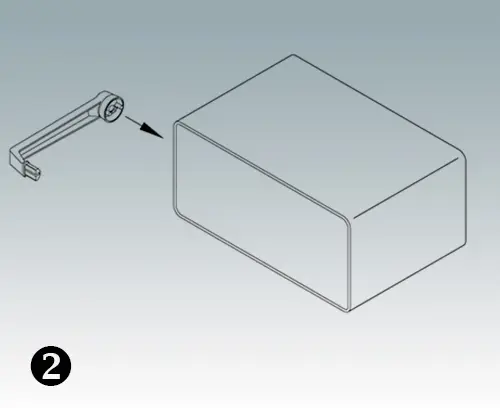

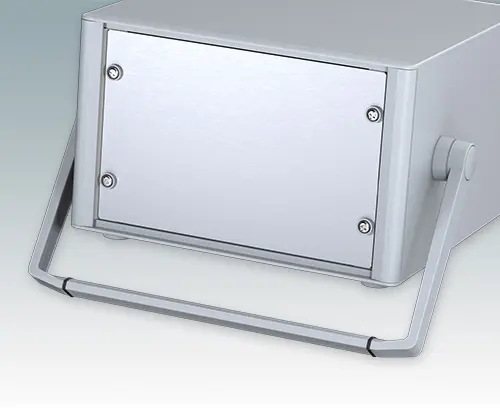

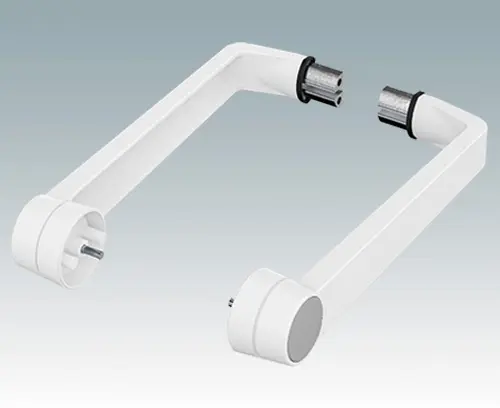

Side arm kit For canting and carrying the enclosure. Strong push-button ratchet with 30° indexing. The enclosure must be machined with three holes on each side in order to fit the side arm kit (see drilling details). A separate aluminum handle profile fits between these two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure). The handle profiles are available in a range of matching colors. In order to improve the stability, we recommend glueing the handle profiles to the side arms.

Supply 2 side arms (RAL 9002), 2 push-buttons (RAL 7032), 2 fastenings kits

Close

A9300014

Side arm kit
product added to your basket
Zinc
Off-white RAL 9002

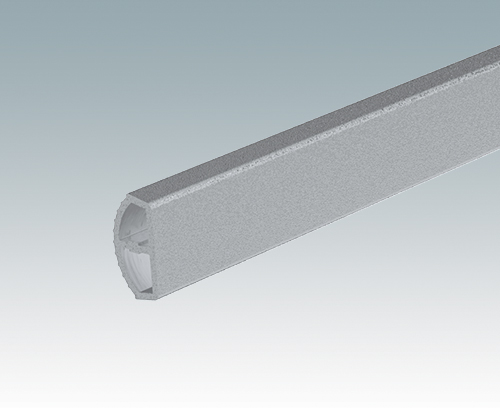

M50930-xxx Handle profile, RAL 9006

M50930-xxx

Handle profile, RAL 9006

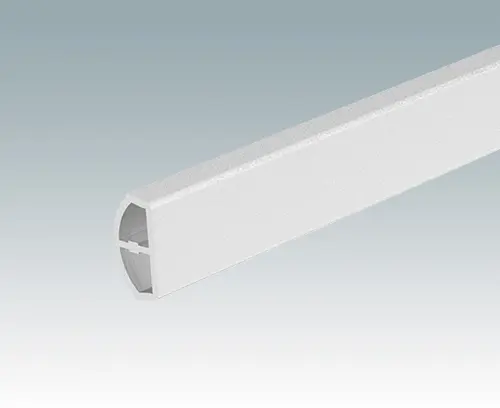

Aluminum handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure).

How to order: replace xxx in the part number with the length required. Example: 350 mm wide enclosure, handle profile length is 324 mm (350-26). So the part number will be M50930-324 with the handle painted in RAL 9006. If the enclosure dimension is 350.5 mm the part number would be M50930-324.5 with the handle painted in RAL 9006.

Supply Handle profile

Close

M50930-xxx

Handle profile, RAL 9006
product added to your basket
Aluminum
Silver metallic RAL 9006

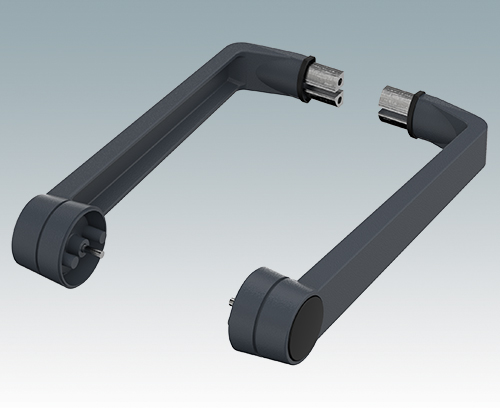

M5093004 Side arm kit

M5093004

Side arm kit For canting and carrying the enclosure. Strong push-button ratchet with 30° indexing. The enclosure must be machined with three holes on each side in order to fit the side arm kit (see drilling details). A separate aluminum handle profile fits between these two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure). The handle profiles are available in a range of matching colors. In order to improve the stability, we recommend glueing the handle profiles to the side arms.

Supply 2 side arms (RAL 7016), 2 push-buttons (RAL 9005), 2 fastenings kits

Close

M5093004

Side arm kit
product added to your basket
Zinc
Anthracite RAL 7016

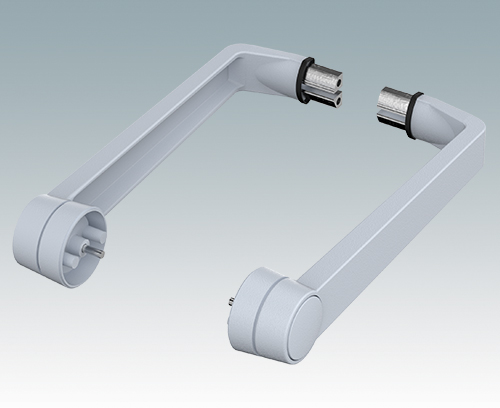

M5093005 Side arm kit

M5093005

Side arm kit For canting and carrying the enclosure. Strong push-button ratchet with 30° indexing. The enclosure must be machined with three holes on each side in order to fit the side arm kit (see drilling details). A separate aluminum handle profile fits between these two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure). The handle profiles are available in a range of matching colors. In order to improve the stability, we recommend glueing the handle profiles to the side arms.

Supply 2 side arms (RAL 7035), 2 push-buttons (RAL 7035), 2 fastenings kits

Close

M5093005

Side arm kit
product added to your basket
Zinc
Light gray RAL 7035

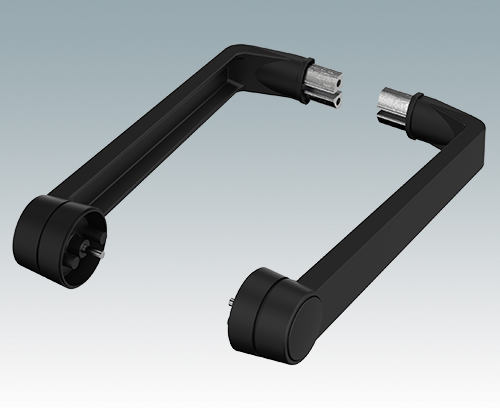

M5093009 Side arm kit

M5093009

Side arm kit For canting and carrying the enclosure. Strong push-button ratchet with 30° indexing. The enclosure must be machined with three holes on each side in order to fit the side arm kit (see drilling details). A separate aluminum handle profile fits between these two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure). The handle profiles are available in a range of matching colors. In order to improve the stability, we recommend glueing the handle profiles to the side arms.

Supply 2 side arms, 2 fastenings screws

Close

M5093009

Side arm kit
product added to your basket
Zinc
Black RAL 9005
m50934-xxx_tisw

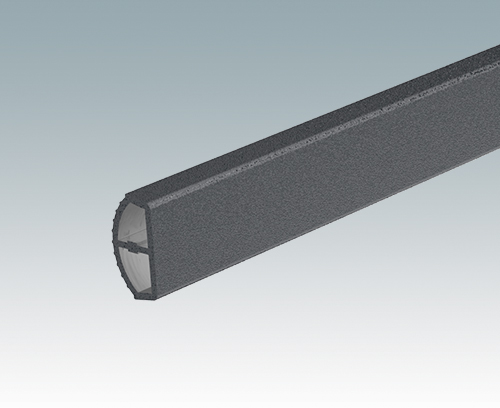

M50934-xxx

Handle profile, RAL 7016

Aluminum handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure).

How to order: replace xxx in the part number with the length required. Example: 350 mm wide enclosure, handle profile length is 324 mm (350-26). So the part number will be M50934-324 with the handle painted in RAL 7016. If the enclosure dimension is 350.5 mm the part number would be M50934-324.5 with the handle painted in RAL 7016.

Supply Handle profile

Close

M50934-xxx

Handle profile, RAL 7016
product added to your basket
Aluminum
Anthracite RAL 7016

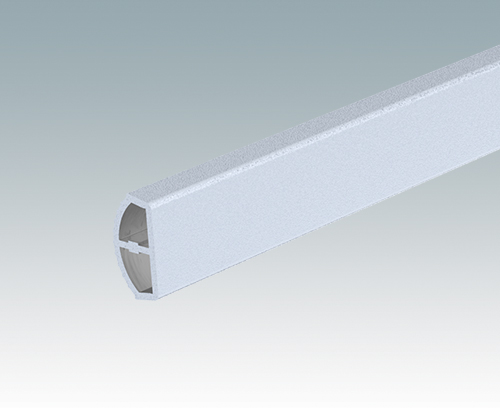

M50935-xxx Handle profile, RAL 7035

M50935-xxx

Handle profile, RAL 7035

Aluminum handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure).

How to order: replace xxx in the part number with the length required. Example: 350 mm wide enclosure, handle profile length is 324 mm (350-26). So the part number will be M50935-324 with the handle painted in RAL 7035. If the enclosure dimension is 350.5 mm the part number would be M50935-324.5 with the handle painted in RAL 7035.

Supply Handle profile

Close

M50935-xxx

Handle profile, RAL 7035
product added to your basket
Aluminum
Light gray RAL 7035

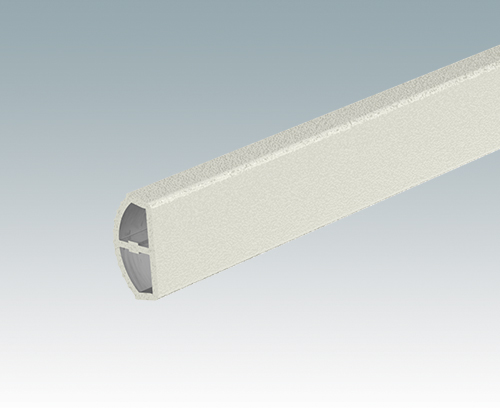

M50937-xxx Handle profile, RAL 9002

M50937-xxx

Handle profile, RAL 9002

Aluminum handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure).

How to order: replace xxx in the part number with the length required. Example: 350 mm wide enclosure, handle profile length is 324 mm (350-26). So the part number will be M50937-324 with the handle painted in RAL 9002. If the enclosure dimension is 350.5 mm the part number would be M50937-324.5 with the handle painted in RAL 9002.

Supply Handle profile

Close

M50937-xxx

Handle profile, RAL 9002
product added to your basket
Aluminum
Off-white RAL 9002
M50939-xxx Handle profile, RAL 9005

M50939-xxx

Handle profile, RAL 9005

Aluminum handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure).

How to order: replace xxx in the part number with the length required. Example: 350 mm wide enclosure, handle profile length is 324 mm (350-26). So the part number will be M50939-324 with the handle painted in RAL 9005. If the enclosure dimension is 350.5 mm the part number would be M50939-324.5 with the handle painted in RAL 9005.

Supply Handle profile

Close

M50939-xxx

Handle profile, RAL 9005
product added to your basket
Aluminum
Black RAL 9005
