M6119285 19

M6119285

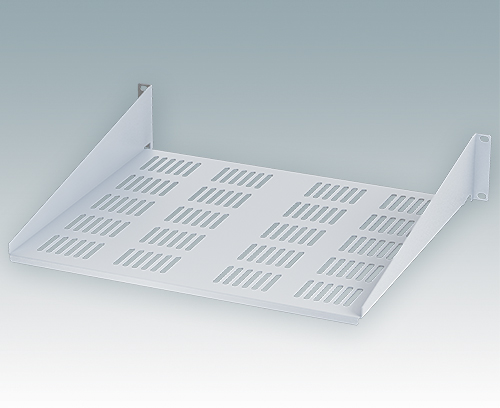

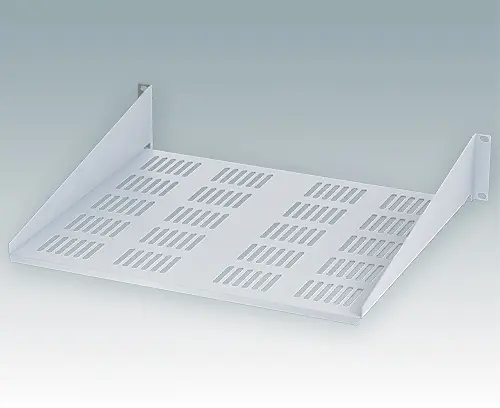

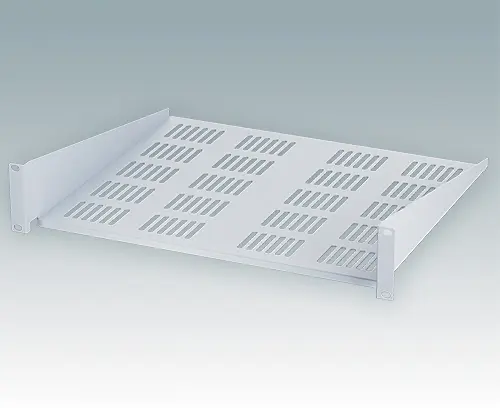

19"x2U Cantilever Rack Shelf

Universal 19" cantilever rack shelf designed to mount to any standard 19" rack or cabinet. Allows easy installation of equipment that does not have any built-in rack mounting facilities. The shelf is made of CR4 mild steel and is painted in a tough powder polyester paint finish. Slots in the bottom aid in-rack ventilation. Other sizes can be made to order.

Version

With ventilation

Supply

Cantilever rack shelf

  • Components/Accessories

Accessory

M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light gray RAL 7035
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
Light gray RAL 7035
Standards
DIN 41494
REACH compliant
IEC 60297-3
RoHS compliant
Height
3.469″
88.1 mm
Width
19.000″
482.6 mm
Depth
15.748″
400 mm
Height Unit
2 U

Catalog Pages

Drawings

3D Models

Weight/1 part
2 kg
Customs tariff number
(METCASE product)
73269098
Country of manufacture
U.K.
