M6010001 Front panel 3Ux10.5
Scroll

M6010001

Front panel 3Ux10.5"

Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply

Front panel

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6010001

Please select the product details you would like to include in the PDF.

Close
  • To be used for
M6010305 INSTRUMET 10.5" 3Ux13.78"

M6010305

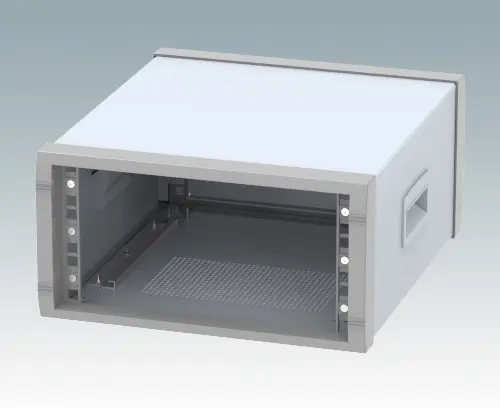

INSTRUMET 10.5" 3Ux13.78" Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With side handles

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6010305

INSTRUMET 10.5" 3Ux13.78"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x11.93″x13.78″
M6010315 INSTRUMET 10.5" 3Ux13.78"

M6010315

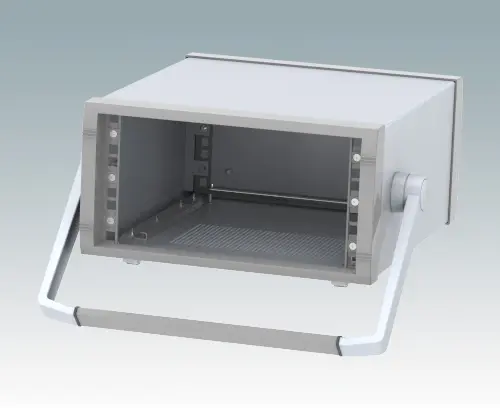

INSTRUMET 10.5" 3Ux13.78" Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With handle/bail arm

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6010315

INSTRUMET 10.5" 3Ux13.78"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x11.93″x13.78″
M6610344 TECHNOMET 10.5" 3Ux13"

M6610344

TECHNOMET 10.5" 3Ux13" Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC103 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

Close

M6610344

TECHNOMET 10.5" 3Ux13"
product added to your basket
Aluminum
Anthracite RAL 7016
6.17″x12.72″x12.99″
M6610345 TECHNOMET 10.5" 3Ux13"

M6610345

TECHNOMET 10.5" 3Ux13" Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC103 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

Close

M6610345

TECHNOMET 10.5" 3Ux13"
product added to your basket
Aluminum
Light gray RAL 7035
6.17″x12.72″x12.99″
M6610354 TECHNOMET 10.5" 3Ux13"

M6610354

TECHNOMET 10.5" 3Ux13" Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a bail arm and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC103H with handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), bail arm kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and gray plastic cup washer (x4). Supplied assembled.

Close

M6610354

TECHNOMET 10.5" 3Ux13"
product added to your basket
Aluminum
Anthracite RAL 7016
6.17″x12.72″x12.99″
M6610355 TECHNOMET 10.5" 3Ux13"

M6610355

TECHNOMET 10.5" 3Ux13" Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a bail arm and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC103H with handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), bail arm kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and gray plastic cup washer (x4). Supplied assembled.

Close

M6610355

TECHNOMET 10.5" 3Ux13"
product added to your basket
Aluminum
Light gray RAL 7035
6.17″x12.72″x12.99″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Matt anodized
Standards
DIN 41494
REACH compliant
IEC 60297-3
RoHS compliant
Width
10.598″
269.2 mm
Height
0.118″
3 mm
Depth
5.217″
132.5 mm
Height Unit
3 U

Catalog Pages

Drawings

3D Models

Weight/1 part
0.28 kg
Customs tariff number
(METCASE product)
76061293
Country of manufacture
U.K.
