M6019010 Front panel 1Ux19
Scroll

M6019010

Front panel 1Ux19"

Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply

Panel

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6019010

Please select the product details you would like to include in the PDF.

Close
  • To be used for

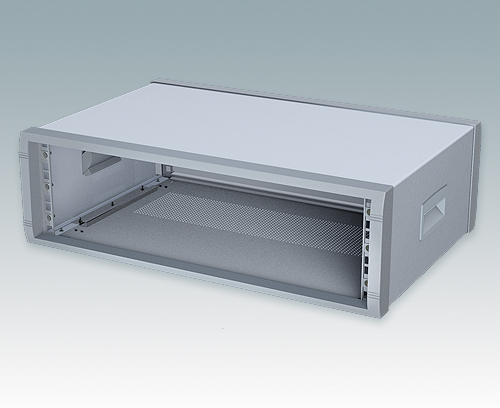

M6019305 INSTRUMET 19" 3Ux13.78"

M6019305

INSTRUMET 19" 3Ux13.78" Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With side handles

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6019305

INSTRUMET 19" 3Ux13.78"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x20.31″x13.78″

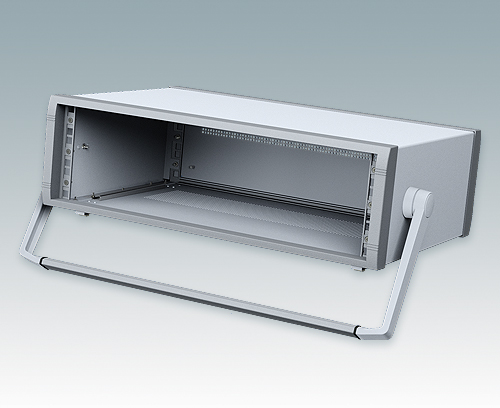

M6019315 INSTRUMET 19" 3Ux13.78"

M6019315

INSTRUMET 19" 3Ux13.78" Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With handle/bail arm

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6019315

INSTRUMET 19" 3Ux13.78"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x20.31″x13.78″

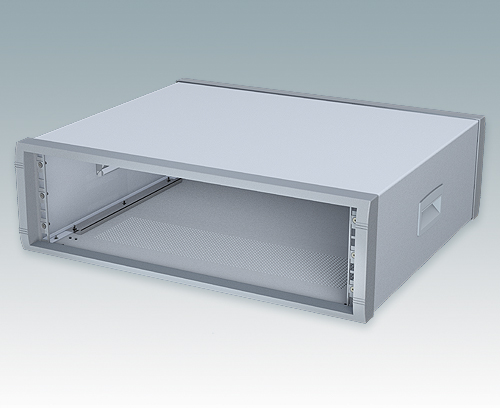

M6019325 INSTRUMET 19" 3Ux17.72"

M6019325

INSTRUMET 19" 3Ux17.72" Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With side handles

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6019325

INSTRUMET 19" 3Ux17.72"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x20.31″x17.72″

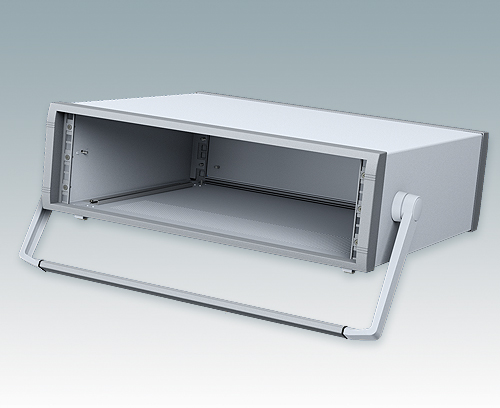

M6019335 INSTRUMET 19" 3Ux17.72"

M6019335

INSTRUMET 19" 3Ux17.72" Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With handle/bail arm

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6019335

INSTRUMET 19" 3Ux17.72"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x20.31″x17.72″

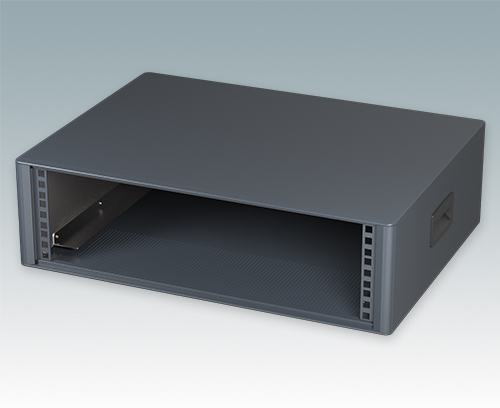

M6619344 TECHNOMET 19" 3Ux15.74"

M6619344

TECHNOMET 19" 3Ux15.74" Modern and highly attractive 19" instrument enclosure for mounting 3U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC193 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

Close

M6619344

TECHNOMET 19" 3Ux15.74"
product added to your basket
Aluminum
Anthracite RAL 7016
6.13″x21.22″x15.75″

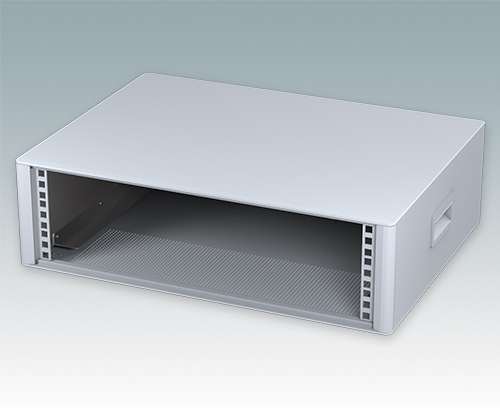

M6619345 TECHNOMET 19'' 3Ux15.74"

M6619345

TECHNOMET 19'' 3Ux15.74" Modern and highly attractive 19" instrument enclosure for mounting 3U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC193 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and gray plastic cup washer (x4). Supplied assembled.

Close

M6619345

TECHNOMET 19'' 3Ux15.74"
product added to your basket
Aluminum
Light gray RAL 7035
6.13″x21.22″x15.75″

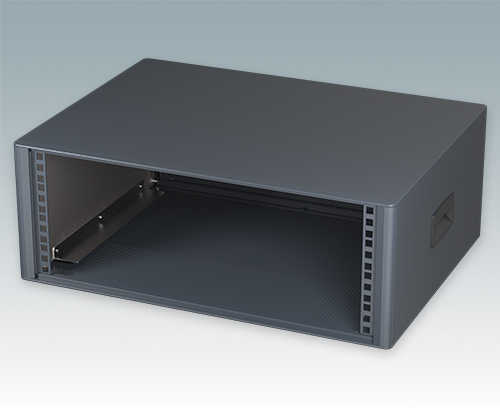

M6619444 TECHNOMET 19'' 4Ux15.74"

M6619444

TECHNOMET 19'' 4Ux15.74" Modern and highly attractive 19" instrument enclosure for mounting 4U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC194 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

Close

M6619444

TECHNOMET 19'' 4Ux15.74"
product added to your basket
Aluminum
Anthracite RAL 7016
7.87″x21.22″x15.75″

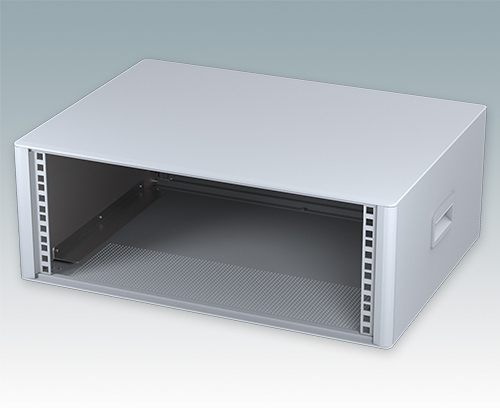

M6619445 TECHNOMET 19'' 4Ux15.74"

M6619445

TECHNOMET 19'' 4Ux15.74" Modern and highly attractive 19" instrument enclosure for mounting 4U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC194 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and gray plastic cup washer (x4). Supplied assembled.

Close

M6619445

TECHNOMET 19'' 4Ux15.74"
product added to your basket
Aluminum
Light gray RAL 7035
7.87″x21.22″x15.75″

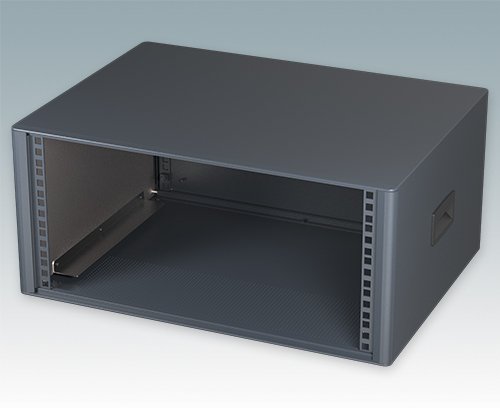

M6619544 TECHNOMET 19" 5Ux15.74"

M6619544

TECHNOMET 19" 5Ux15.74"

Modern and highly attractive 19" instrument enclosure for mounting 5U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC195 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and gray plastic cup washer (x4). Supplied assembled.

Close

M6619544

TECHNOMET 19" 5Ux15.74"
product added to your basket
Aluminum
Anthracite RAL 7016
9.63″x21.22″x15.75″
M6619545 TECHNOMET 19" 5Ux15.74"

M6619545

TECHNOMET 19" 5Ux15.74"

Modern and highly attractive 19" instrument enclosure for mounting 5U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC195 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and gray plastic cup washer (x4). Supplied assembled.

Close

M6619545

TECHNOMET 19" 5Ux15.74"
product added to your basket
Aluminum
Light gray RAL 7035
9.63″x21.22″x15.75″

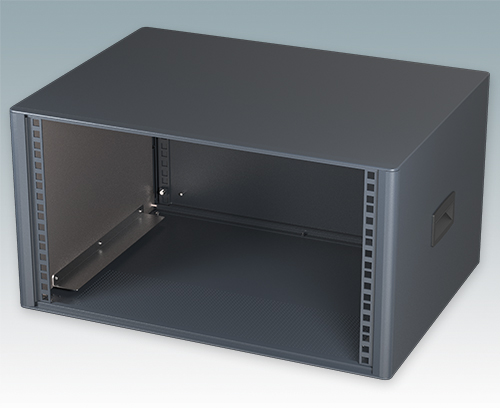

M6619644 TECHNOMET 19'' 6Ux15.74"

M6619644

TECHNOMET 19'' 6Ux15.74" Modern and highly attractive 19" instrument enclosure for mounting 6U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC196 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

Close

M6619644

TECHNOMET 19'' 6Ux15.74"
product added to your basket
Aluminum
Anthracite RAL 7016
11.37″x21.22″x15.75″
M6619645 TECHNOMET 19'' 6Ux15.74"

M6619645

TECHNOMET 19'' 6Ux15.74" Modern and highly attractive 19" instrument enclosure for mounting 6U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC196 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and gray plastic cup washer (x4). Supplied assembled.

Close

M6619645

TECHNOMET 19'' 6Ux15.74"
product added to your basket
Aluminum
Light gray RAL 7035
11.37″x21.22″x15.75″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Matt anodized
Standards
DIN 41494
REACH compliant
IEC 60297-3
RoHS compliant
Width
19.000″
482.6 mm
Height
0.118″
3 mm
Depth
1.717″
43.6 mm
Height Unit
1 U

Catalog Pages

Drawings

3D Models

Weight/1 part
0.17 kg
Customs tariff number
(METCASE product)
76061293
Country of manufacture
U.K.
