M0000700 Flush Head Fixing Studs

M0000700

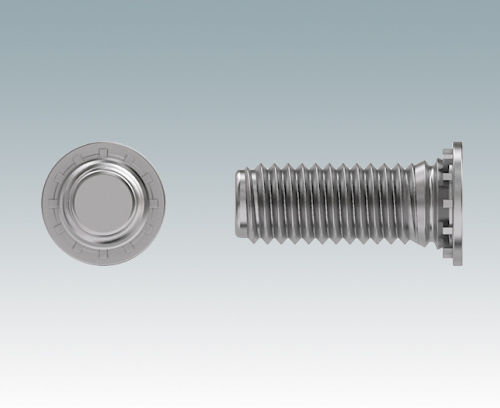

Flush Head Fixing Studs

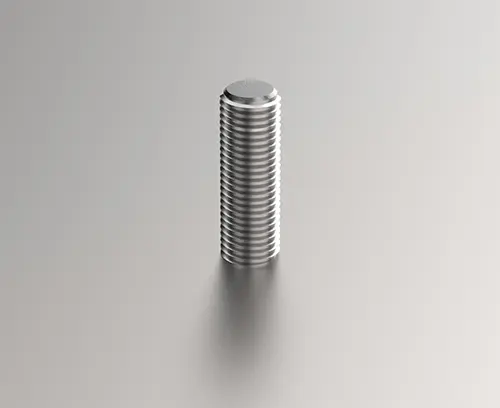

Flush mounted fixing stud which is press fitted to a hole in the panel.

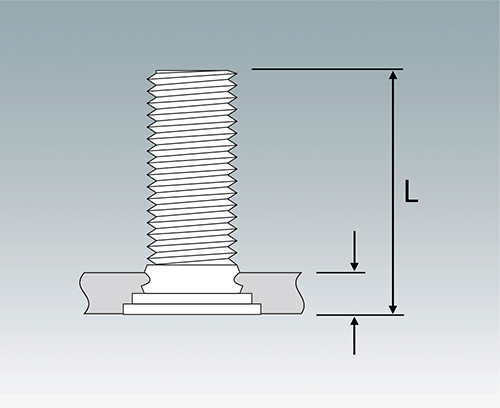

Thread Size Lengths (inches) Mounting Hole (inches)
M2 0.236 | 0.314 | 0.393 | 0.472 | 0.629 | 0.708 | 0.787 Ø.078
M2.5 0.236 | 0.314 | 0.393 | 0.472 | 0.590 | 0.708 | 0.787 Ø.098
M3 0.196 | 0.236 | 0.314 | 0.393 | 0.472 | 0.590 | 0.629 | 0.708 | 0.787 | 0.866 | 0.98 | 1.181, 1.377 Ø.118
M3.5 0.314 | 0.393 | 0.472 | 0.590 | 0.629 Ø.137
M4 0.236 | 0.314 | 0.393 | 0.472 | 0.590 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 | 1.102 | 1.181 | 1.377 | 1.496 | 1.771 | 1.968 Ø.157
M5 0.314 | 0.393 | 0.472 | 0.590 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 | 1.102 | 1.181 | 1.377 | 1.496 | 1.968 Ø.196
M6 0.314 | 0.393 | 0.472 | 0.590 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 | 1.102 | 1.181 | 1.377 | 1.496 | 1.771 | 1.968 Ø.236

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Standards
REACH compliant
RoHS compliant

Catalog Pages

Weight/1 part
1 g
