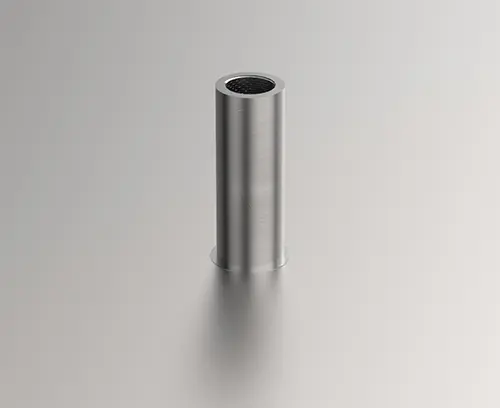

M0000702 Blind Standoffs

M0000702

Blind Standoffs

Blind fixing standoff which is press fitted to a hole in the panel.

Thread Size Lengths (inches) Mounting Hole (inches)
M2 0.393 Ø.165
M2.5 0.236 | 0.314 | 0.393 | 0.472 | 0.551 | 0.629 Ø.165
M3 0.196 | 0.236 | 0.275 | 0.314 | 0.393 | 0.472 | 0.551 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 Ø.165
M4 0.236 | 0.314 | 0.393 | 0.472 | 0.551 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 Ø.283
M5 0.236 | 0.314 | 0.393 | 0.472 | 0.551 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 Ø.283

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Standards
REACH compliant
RoHS compliant

Catalog Pages

Weight/1 part
1 g
