M0000703 Concealed Head Standoffs

M0000703

Concealed Head Standoffs

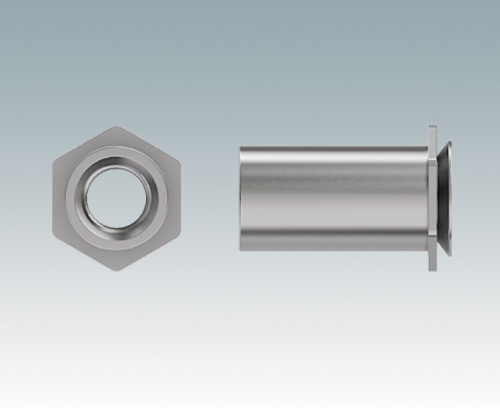

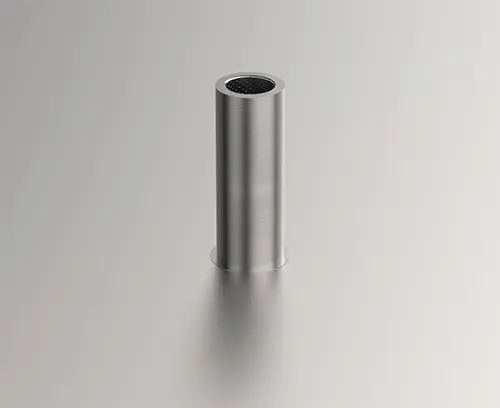

Concealed head fixing standoff which is press fitted to a hole in the panel.

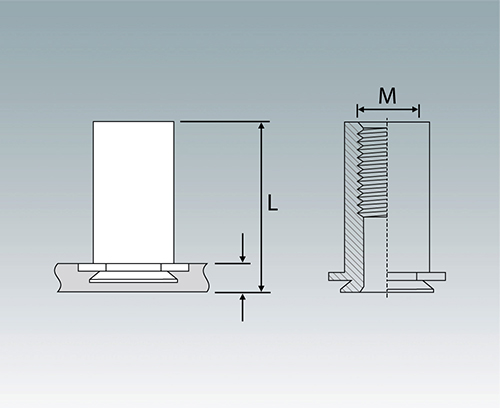

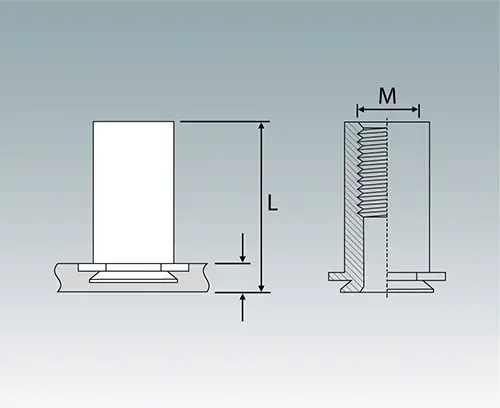

Panel Thickness Thread Size Lengths (inches)
1.6 mm (.062") M3 0.157 | 0.236 | 0.314 | 0.393 | 0.472 | 0.629 | 0.787
2.4 mm (.094") M3 0.157 | 0.236 | 0.314 | 0.393 | 0.472 | 0.629 | 0.787
1.6 mm (.62") M4 0.236
2.4 mm (.94") M4 0.236 | 0.314 | 0.393

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Standards
REACH compliant
RoHS compliant

Catalog Pages

Weight/1 part
1 g
