M0000721 Right Angle Panel Nuts

M0000721

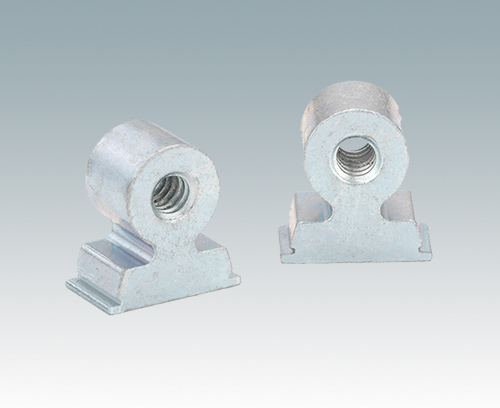

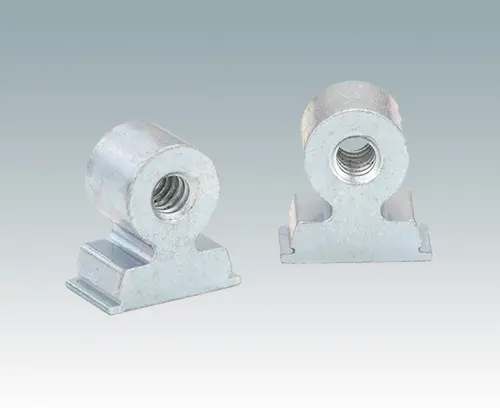

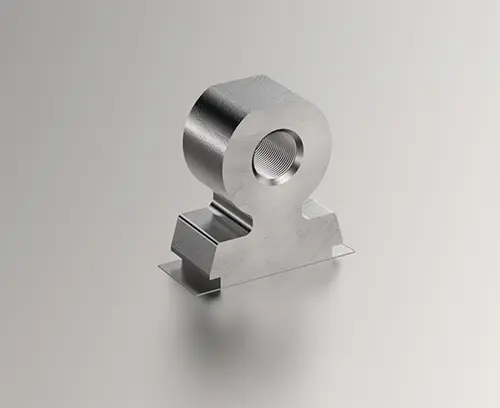

Right Angle Panel Nuts

Threaded right angle fastener which is press fitted into a rectangular hole in the panel.

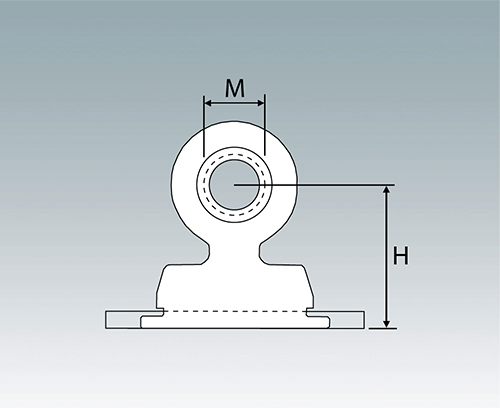

Thread Size Width (inches) Fixing Hole Height (inches) Mounting Hole (inches)
M3 0.113 0.275 0.314 x 0.118
M3 0.153 0.275 0.314 x 0.157
M3 0.231 0.275 0.314 x 0.236
M4 0.153 0.354 0.393 x 0.157
M4 0.271 0.354 0.393 x 0.275
M4 0.350 0.354 0.393 x 0.354

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Standards
REACH compliant
RoHS compliant

Catalog Pages

Weight/1 part
1 g
