M5700613 Front panel kit (3/3H)
Scroll

M5700613

Front panel kit (3/3H)

Front panel kit for Unimet 3/3H and Unimet-Plus 3/3H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply

Front panel, 2 trims (fixings supplied with the cases)

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5700613

Please select the product details you would like to include in the PDF.

Close
  • To be used for

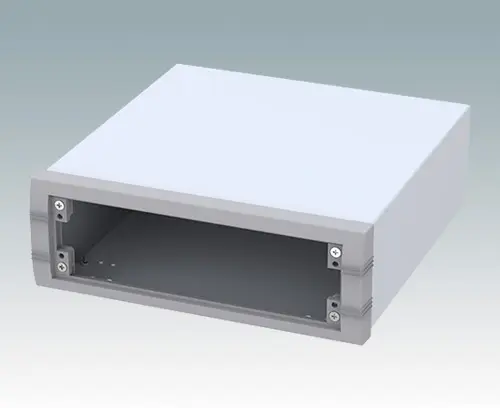

M5625105 UNIMET 3

M5625105

UNIMET 3 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.

Close

M5625105

UNIMET 3
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.84″x10.24″x3.35″

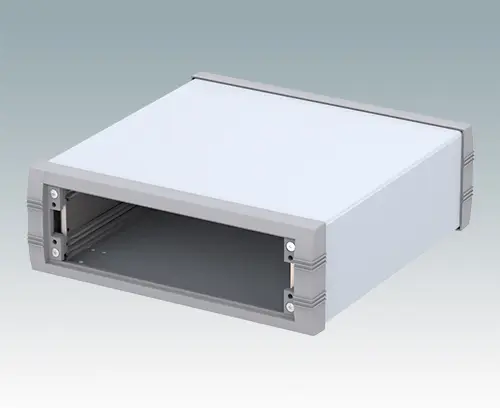

M5625115 UNIMET-PLUS 3

M5625115

UNIMET-PLUS 3 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5625115

UNIMET-PLUS 3
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.84″x10.35″x3.35″

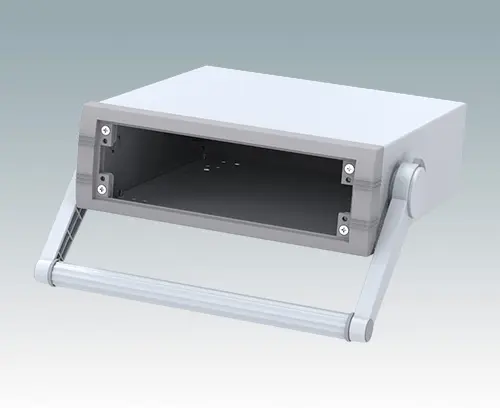

M5625125 UNIMET 3H

M5625125

UNIMET 3H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5625125

UNIMET 3H
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.84″x10.24″x3.35″
M5625135 UNIMET-PLUS 3H

M5625135

UNIMET-PLUS 3H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5625135

UNIMET-PLUS 3H
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.84″x10.35″x3.35″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Matt anodized
Standards
REACH compliant
RoHS compliant
Width
8.642″
219.5 mm
Height
0.079″
2 mm
Depth
2.563″
65.1 mm

Catalog Pages

Drawings

3D Models

Weight/1 part
0.08 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
U.K.
