M6019325 INSTRUMET 19
Scroll

M6019325

INSTRUMET 19" 3Ux17.72"

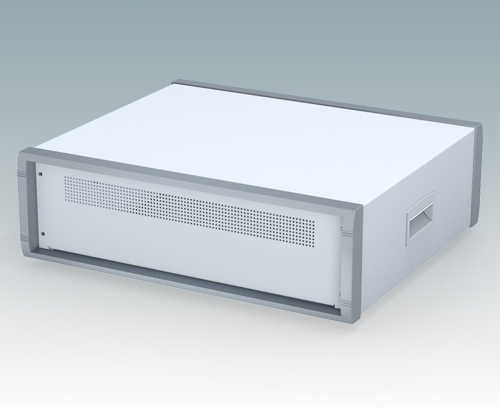

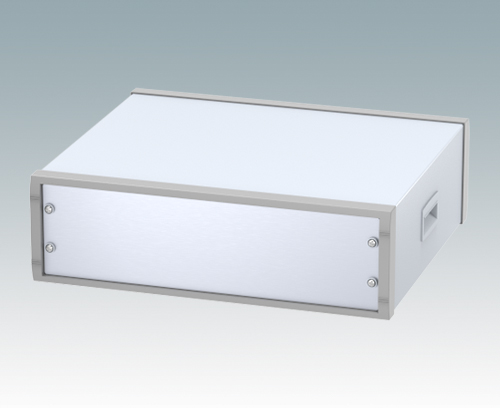

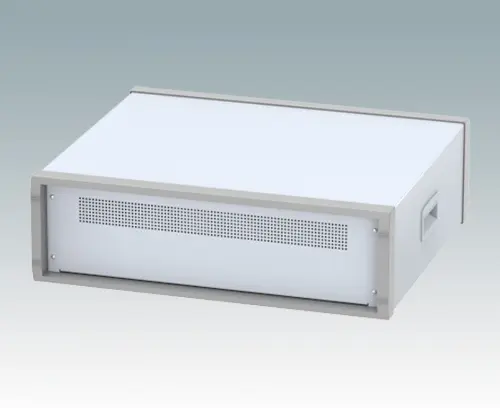

Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version

With side handles

Supply

Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6019325

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light gray RAL 7035
M6019001 Front panel 3Ux19"

M6019001

Front panel 3Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

Close

M6019001

Front panel 3Ux19"
product added to your basket
Aluminum
Matt anodized
19.00″x0.12″x5.22″
M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019010

Front panel 1Ux19"
product added to your basket
Aluminum
Matt anodized
19.00″x0.12″x1.72″
M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1

Version With ventilation slots

Supply Panel

Close

M6019011

Front panel 1Ux19" vented
product added to your basket
Aluminum
Matt anodized
19.00″x0.12″x1.72″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Light gray/window gray RAL 7035/7040
Standards
DIN 41494
REACH compliant
IEC 60297-3
RoHS compliant
Height
6.181″
157 mm
Width
20.315″
516 mm
Depth
17.717″
450 mm
Height Unit
3 U

Catalog Pages

Drawings

3D Models

Weight/1 part
4.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
