M6610345 TECHNOMET 10.5
Scroll

M6610345

TECHNOMET 10.5" 3Ux13"

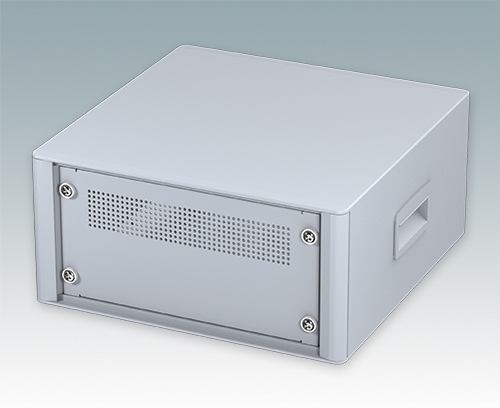

Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version

RC103 with side handles

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6610345

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light gray RAL 7035
M6010001 Front panel 3Ux10.5"

M6010001

Front panel 3Ux10.5" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

Close

M6010001

Front panel 3Ux10.5"
product added to your basket
Aluminum
Matt anodized
10.60″x0.12″x5.22″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Light gray RAL 7035
Standards
DIN 41494
REACH compliant
IEC 60297-3
RoHS compliant
Height
6.165″
156.6 mm
Width
12.717″
323 mm
Depth
12.992″
330 mm
Height Unit
3 U

Catalog Pages

Drawings

3D Models

Weight/1 part
3 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
