M6619545 TECHNOMET 19
Scroll

M6619545

TECHNOMET 19" 5Ux15.74"

Modern and highly attractive 19" instrument enclosure for mounting 5U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

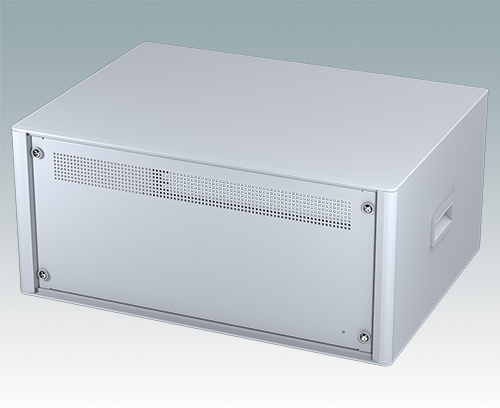

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version

RC195 with side handles

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and gray plastic cup washer (x4). Supplied assembled.

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6619545

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light gray RAL 7035
M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019010

Front panel 1Ux19"
product added to your basket
Aluminum
Matt anodized
19.00″x0.12″x1.72″
M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1

Version With ventilation slots

Supply Panel

Close

M6019011

Front panel 1Ux19" vented
product added to your basket
Aluminum
Matt anodized
19.00″x0.12″x1.72″
M6019050 Front panel 5Ux19"

M6019050

Front panel 5Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019050

Front panel 5Ux19"
product added to your basket
Aluminum
Matt anodized
19.00″x0.12″x8.72″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Light gray RAL 7035
Standards
DIN 41494
REACH compliant
IEC 60297-3
RoHS compliant
Height
9.626″
244.5 mm
Width
21.220″
539 mm
Depth
15.748″
400 mm
Height Unit
5 U

Catalog Pages

Drawings

3D Models

Weight/1 part
5.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
