M5301502 Front panel M200
Scroll

M5301502

Front panel M200

Anodized aluminum front panel for UNIDESK M200 cases

Supply

Panel (fixing screws supplied with cases).

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5301502

Please select the product details you would like to include in the PDF.

Close
  • To be used for

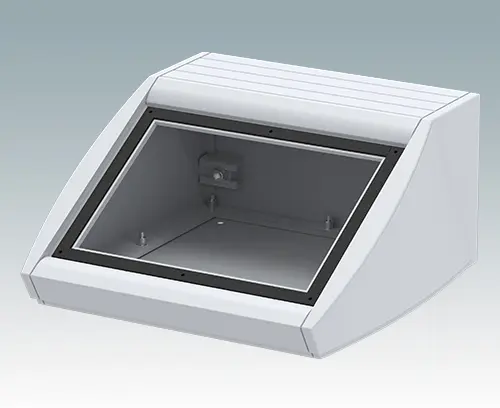

M5320105 UNIDESK M200 IP 54

M5320105

UNIDESK M200 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

Close

M5320105

UNIDESK M200 IP 54
product added to your basket
Aluminum
Light gray RAL 7035
7.87″x7.87″x4.02″
IP 54

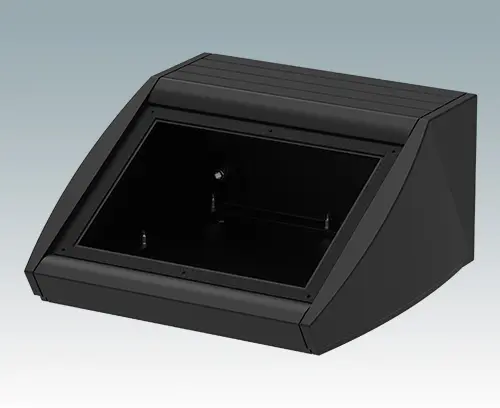

M5320109 UNIDESK M200 IP 54

M5320109

UNIDESK M200 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

Close

M5320109

UNIDESK M200 IP 54
product added to your basket
Aluminum
Black RAL 9005
7.87″x7.87″x4.02″
IP 54

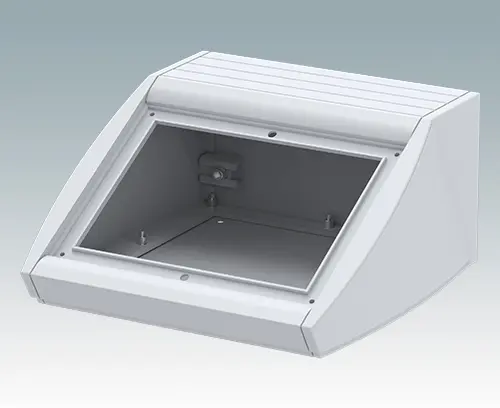

M5320115 UNIDESK M200

M5320115

UNIDESK M200 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

Close

M5320115

UNIDESK M200
product added to your basket
Aluminum
Light gray RAL 7035
7.87″x7.87″x4.02″
M5320119 UNIDESK M200

M5320119

UNIDESK M200 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

Close

M5320119

UNIDESK M200
product added to your basket
Aluminum
Black RAL 9005
7.87″x7.87″x4.02″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Matt anodized
Standards
REACH compliant
RoHS compliant
Width
6.693″
170 mm
Height
0.079″
2 mm
Depth
4.843″
123 mm

Catalog Pages

Assembly Instructions (Group)

Drawings

3D Models

Weight/1 part
0.11 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
U.K.
