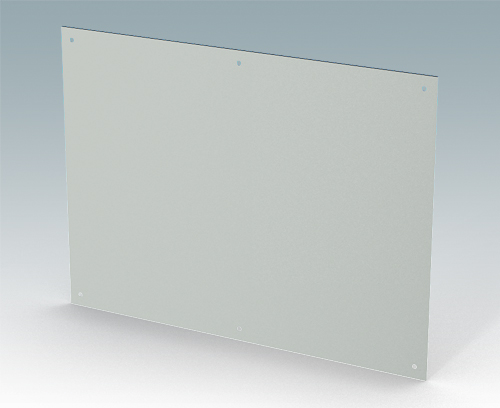

M5804140 Mounting plate kit L

M5804140

Mounting plate kit L

Internal mounting plate kit for DATAMET L enclosures. For mounting PCBs and electronic assemblies. The mounting plate is fitted to pre-punched holes in the enclosure rear panel with the nylon pillars and screws supplied in the kit.

Supply

Mounting plate, 6 M3 polyamide pillars and 12 M3 fixing screws.

  • To be used for

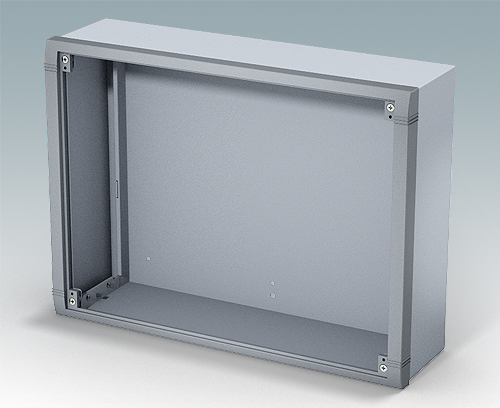

M5840105 Datamet L

M5840105

Datamet L Modern aluminum wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear panel. Order front panels separately.

Supply Front bezel, top panel, L shaped rear section, assembly screws, front panel screws.

Close

M5840105

Datamet L
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
15.75″x11.81″x4.59″

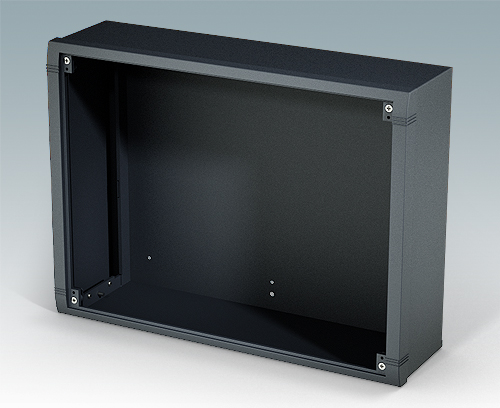

M5840109 Datamet L

M5840109

Datamet L Modern aluminum wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear panel. Order front panels separately.

Supply Front bezel, top panel, L shaped rear section, assembly screws, front panel screws.

Close

M5840109

Datamet L
product added to your basket
Aluminum
Black RAL 9005
15.75″x11.81″x4.59″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
Matt anodized
Standards
REACH compliant
RoHS compliant
Width
12.795″
325 mm
Depth
9.449″
240 mm
Height
0.059″
1.5 mm

Catalog Pages

Drawings

3D Models

Weight/1 part
0.33 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
U.K.
