M5840109 Datamet L
Scroll

M5840109

Datamet L

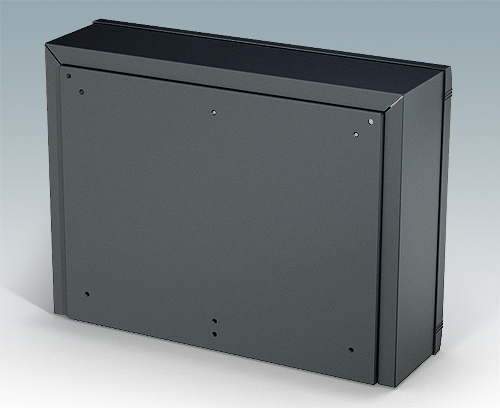

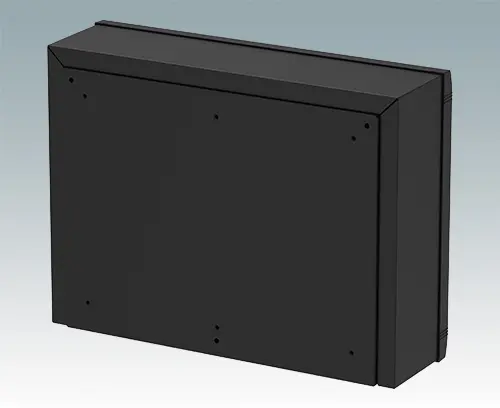

Modern aluminum wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear panel. Order front panels separately.

Supply

Front bezel, top panel, L shaped rear section, assembly screws, front panel screws.

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5840109

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm fixing screws.

Close

M5600001

PCB mounting kit
product added to your basket
PA 6
Black RAL 9005
M5600010 PCB Fixing Screws, M3

M5600010

PCB Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB Fixing Screws, M3
product added to your basket
Steel
Zinc coated
0.24″
M5800040 Front panel L

M5800040

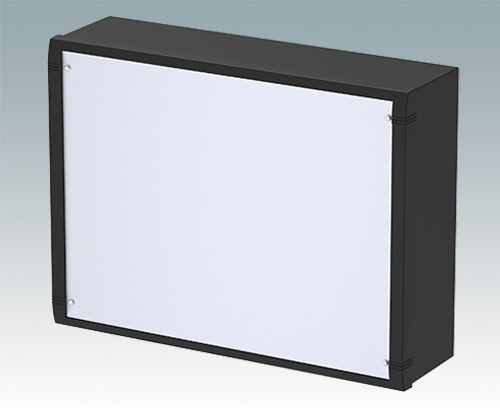

Front panel L Anodized aluminum front panel for DATAMET L enclosures.

Supply Front panel (fixings supplied with the cases).

Close

M5800040

Front panel L
product added to your basket
Aluminum
Matt anodized
14.57″x0.08″x11.00″
M5804140 Mounting plate kit L

M5804140

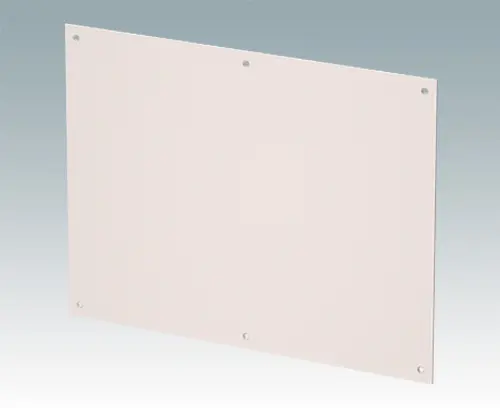

Mounting plate kit L Internal mounting plate kit for DATAMET L enclosures. For mounting PCBs and electronic assemblies. The mounting plate is fitted to pre-punched holes in the enclosure rear panel with the nylon pillars and screws supplied in the kit.

Supply Mounting plate, 6 M3 polyamide pillars and 12 M3 fixing screws.

Close

M5804140

Mounting plate kit L
product added to your basket
Aluminum
Matt anodized
12.80″x9.45″x0.06″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Black RAL 9005
Standards
REACH compliant
RoHS compliant
Width
15.748″
400 mm
Height
11.811″
300 mm
Depth
4.587″
116.5 mm
PCB length, base
9.449″
240 mm
PCB width, base
12.795″
325 mm

Catalog Pages

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
2.1 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
