Unimet-Plus Instrument Enclosures
Scroll

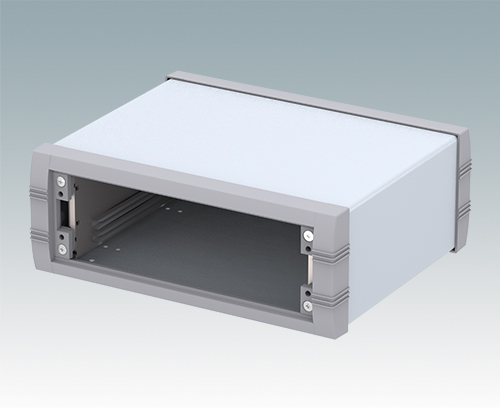

Unimet-Plus

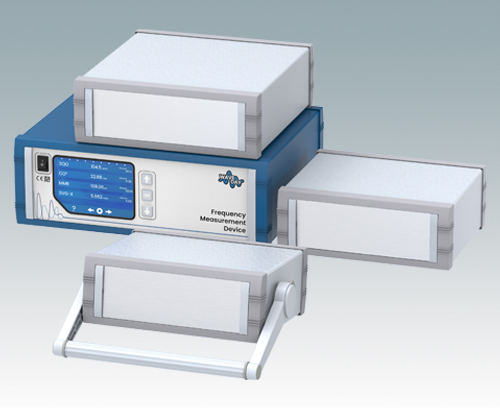

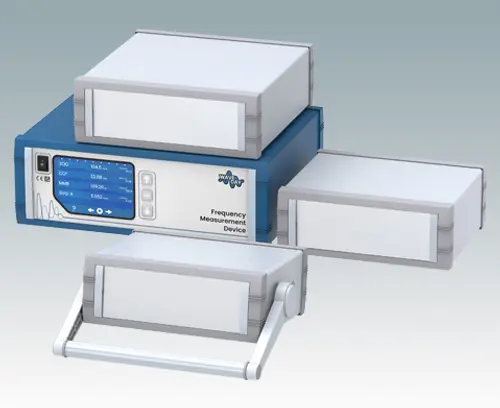

Stylish and versatile instrument enclosures

  • Advanced aluminum instrument enclosures with or without a bail arm
  • Robust and versatile design in six sizes

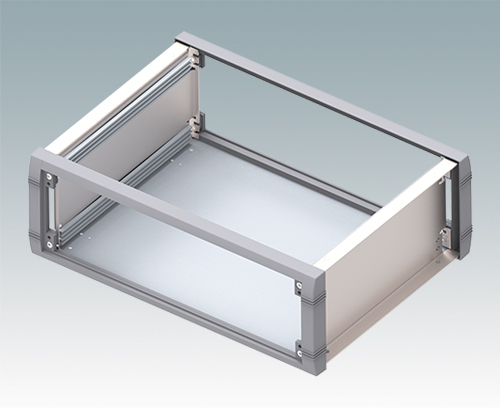

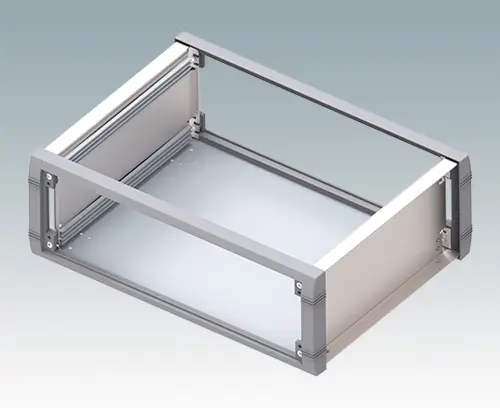

  • Internal chassis with horizontal guide positions for slide-in PCBs

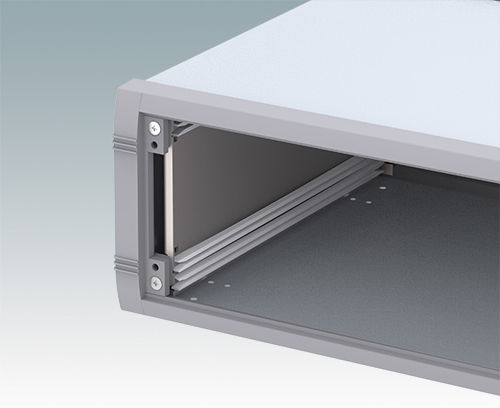

  • Four snap-in polyamide PCB guides included
  • Stylish die cast front and rear bezels assembled to the folded aluminum case body
  • Removable rear panel - recessed for protection of connectors, switches etc.
  • Recessed aluminum front panel (accessory)
  • Four non-slip rubber feet included

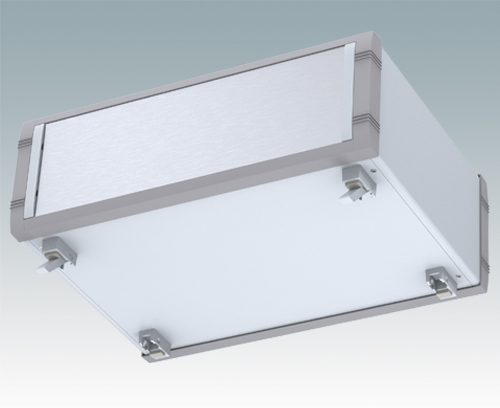

  • Accessory molded tilt feet available.

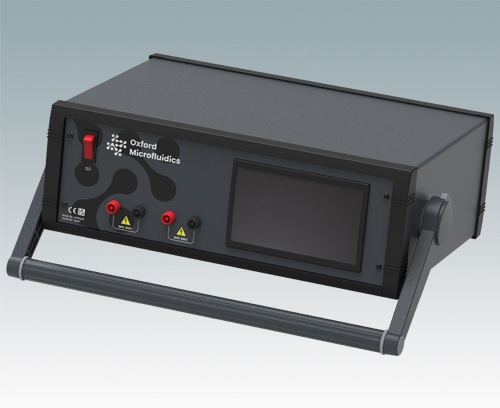

Order your own fully customized version learn more here >>

Generate PDF
  • Video

Application fields

Medical and wellness devices, test and measurement equipment, industrial control, peripheral devices and interfaces, switchboxes, communications and laboratory equipment.
  • Browse Full List
  • Accessories
  • Catalog Documents

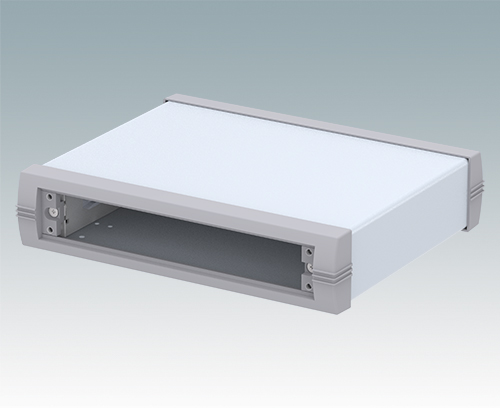

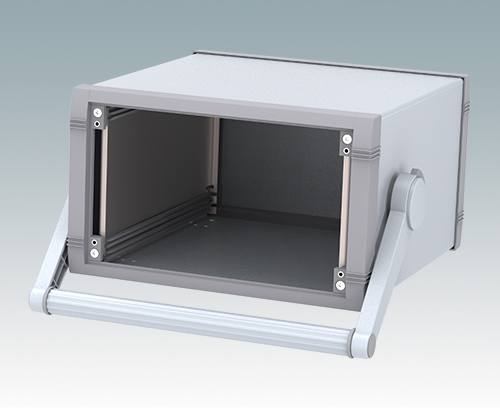

M5623015 UNIMET-PLUS 1

M5623015

UNIMET-PLUS 1 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Two standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4). Supplied assembled.

Close

M5623015

UNIMET-PLUS 1
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.06″x7.60″x1.97″

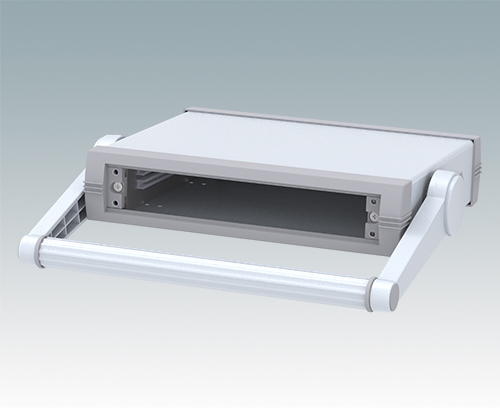

M5623035 UNIMET-PLUS 1H

M5623035

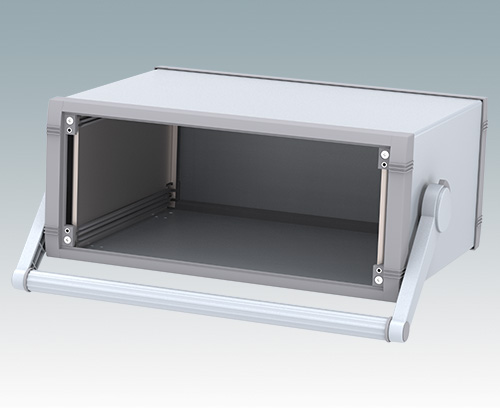

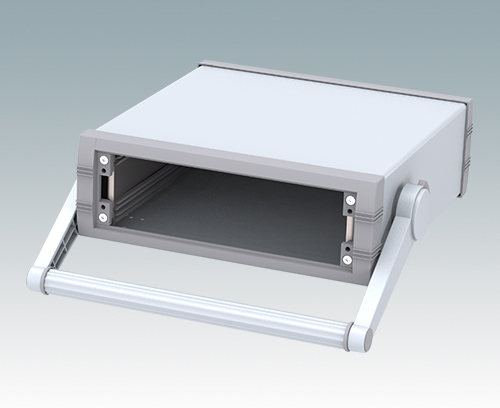

UNIMET-PLUS 1H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4). Supplied assembled.

Close

M5623035

UNIMET-PLUS 1H
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.06″x7.60″x1.97″
M5623115 UNIMET-PLUS 2

M5623115

UNIMET-PLUS 2 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5623115

UNIMET-PLUS 2
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.06″x7.60″x3.35″

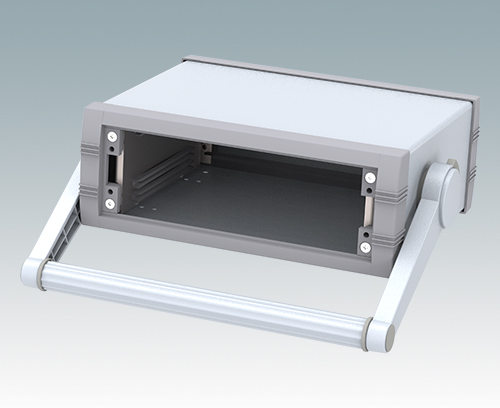

M5623135 UNIMET-PLUS 2H

M5623135

UNIMET-PLUS 2H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5623135

UNIMET-PLUS 2H
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.06″x7.60″x3.35″
M5625115 UNIMET-PLUS 3

M5625115

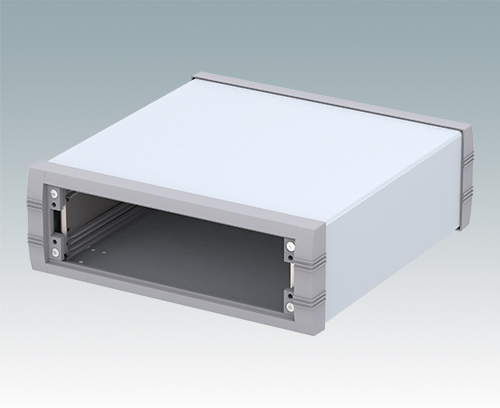

UNIMET-PLUS 3 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5625115

UNIMET-PLUS 3
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.84″x10.35″x3.35″
M5625135 UNIMET-PLUS 3H

M5625135

UNIMET-PLUS 3H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5625135

UNIMET-PLUS 3H
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.84″x10.35″x3.35″
M5625315 UNIMET-PLUS 5

M5625315

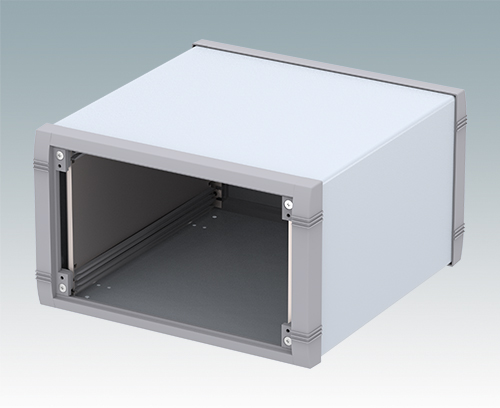

UNIMET-PLUS 5 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5625315

UNIMET-PLUS 5
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.84″x10.35″x5.91″
M5625335 UNIMET-PLUS 5H

M5625335

UNIMET-PLUS 5H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5625335

UNIMET-PLUS 5H
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
9.84″x10.35″x5.91″

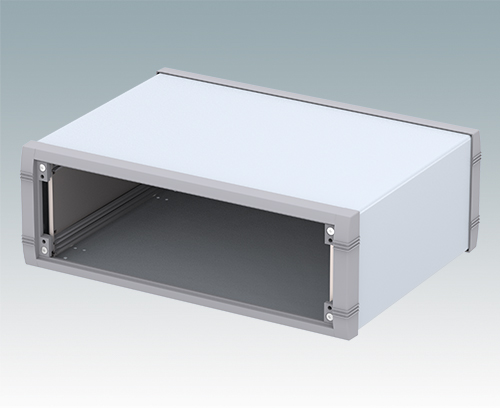

M5635215 UNIMET-PLUS 4

M5635215

UNIMET-PLUS 4 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5635215

UNIMET-PLUS 4
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
13.78″x10.35″x4.72″
M5635235 UNIMET-PLUS 4H

M5635235

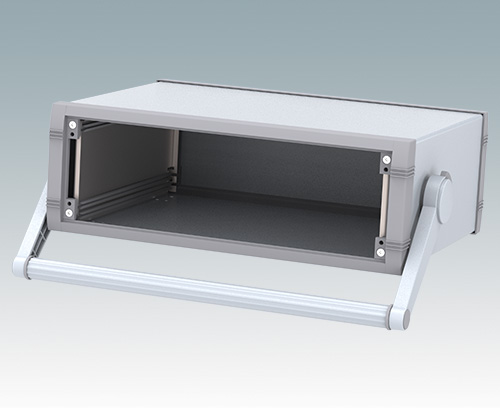

UNIMET-PLUS 4H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5635235

UNIMET-PLUS 4H
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
13.78″x10.35″x4.72″

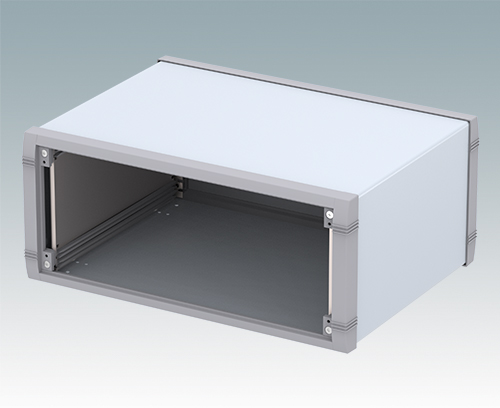

M5635315 UNIMET-PLUS 6

M5635315

UNIMET-PLUS 6 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5635315

UNIMET-PLUS 6
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
13.78″x10.35″x5.91″
M5635335 UNIMET-PLUS 6H

M5635335

UNIMET-PLUS 6H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5635335

UNIMET-PLUS 6H
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
13.78″x10.35″x5.91″
M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm fixing screws.

Close

M5600001

PCB mounting kit
product added to your basket
PA 6
Black RAL 9005
M5600010 PCB Fixing Screws, M3

M5600010

PCB Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB Fixing Screws, M3
product added to your basket
Steel
Zinc coated
0.24″
M5600015 Case Feet Kit 1

M5600015

Case Feet Kit 1 Universal case feet for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness. Call us for a free sample.

Version Without tilt legs.

Supply Foot molding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

Close

M5600015

Case Feet Kit 1
product added to your basket
ABS (UL 94 HB)
Light gray RAL 7035
1.34″x0.67″x0.63″
M5600045 Case Feet Kit 2

M5600045

Case Feet Kit 2 Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs.

Supply Foot molding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

Close

M5600045

Case Feet Kit 2
product added to your basket
ABS (UL 94 HB)
Light gray RAL 7035
1.34″x0.67″x0.63″

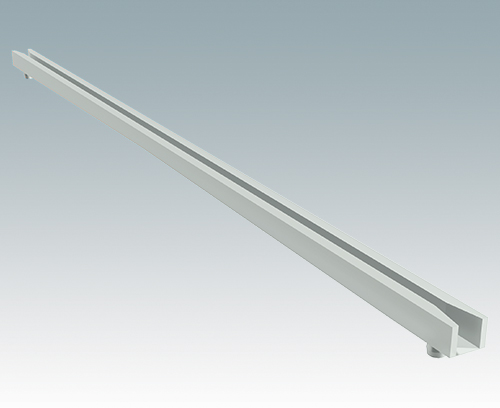

M5700202 PCB guide, 8.50"

M5700202

PCB guide, 8.50" Snap-in PCB guide for 1.6 mm PCBs. See drawing for punching details. Fits to Unimet-Plus 3/3H/4/4H/5/5H/6/6H.

Note: Unimet-Plus enclosures are already supplied with 4 guides as standard.

Supply 1 guide

Close

M5700202

PCB guide, 8.50"
product added to your basket
PA 6/6 (UL 94 V-2)
White

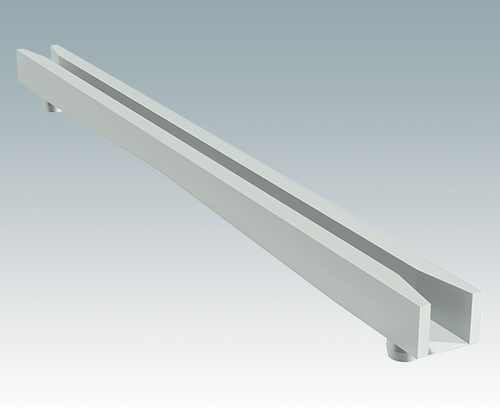

M5700203 PCB guide, 4.00"

M5700203

PCB guide, 4.00" Snap-in PCB guide for 1.6 mm PCBs. See drawing for punching details. Fits to Unimet-Plus 1/1H/2/2H.

Note: Unimet-Plus enclosures are already supplied with 4 guides as standard.

Supply 1 guide

Close

M5700203

PCB guide, 4.00"
product added to your basket
PA 6/6 (UL 94 V-2)
White

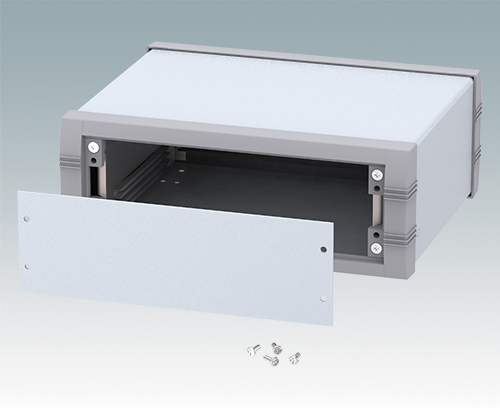

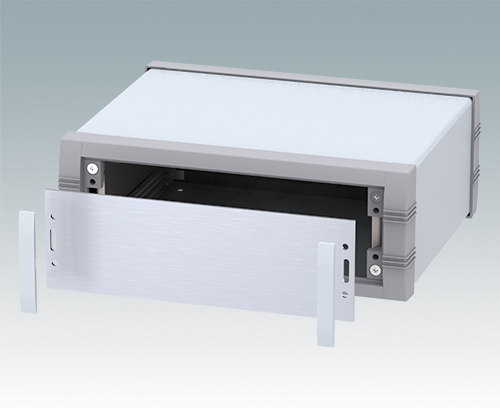

M5700607 Front panel kit (1/1H)
