Unicase Instrument Enclosures
Scroll

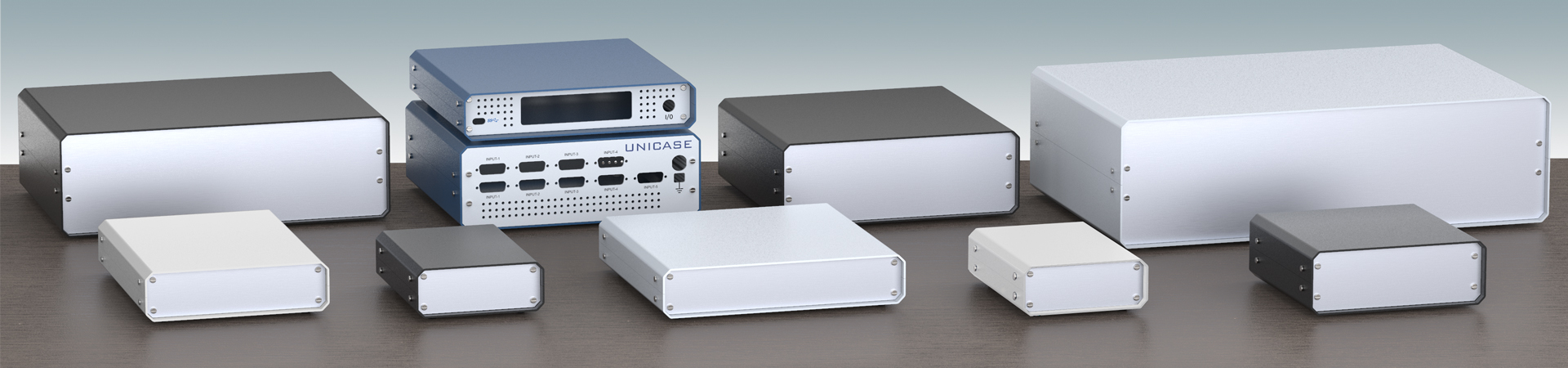

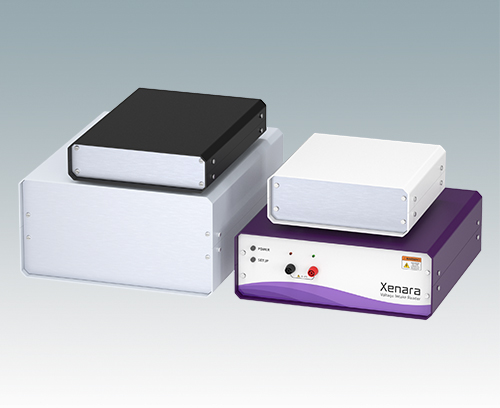

Unicase

Versatile design ideal for customizing

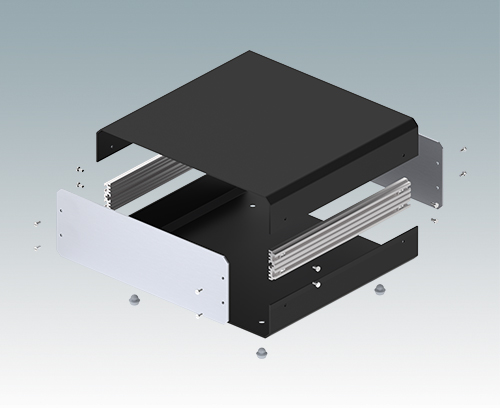

  • Attractive and practical instrument enclosures with simple and fast assembly
  • Easily customized to your exact specifications

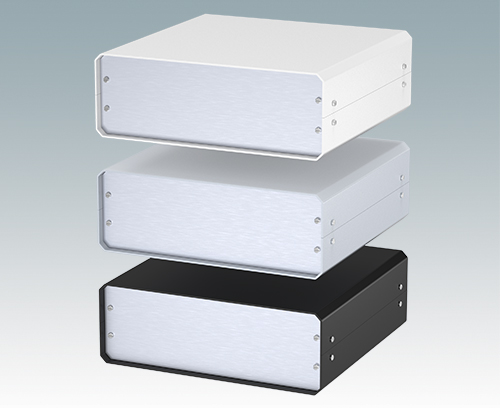

  • Ten standard sizes available in light gray and black

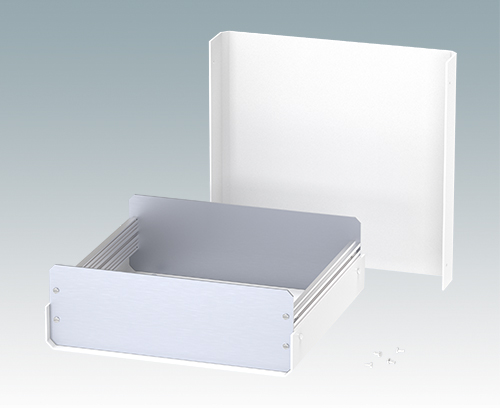

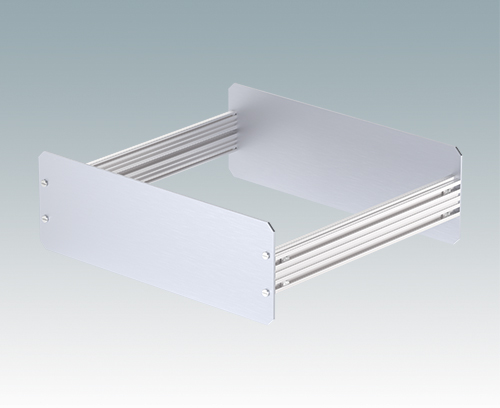

  • Removable internal chassis
  • PCB guide rails in the assembly extrusions
  • Anodized aluminum front and rear panels included
  • Front panels recessed to protect controls

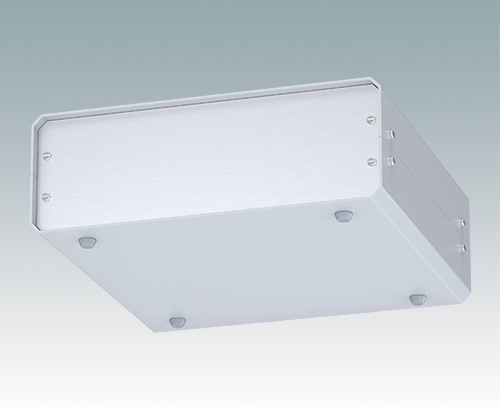

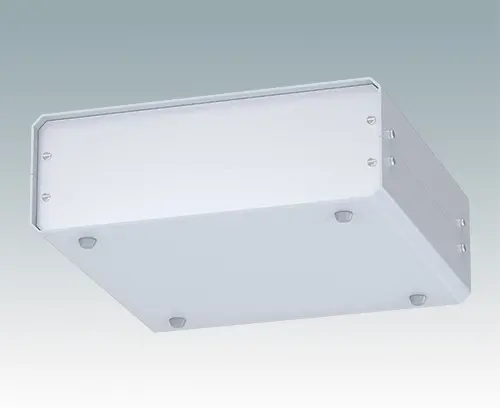

  • Four push-in non-slip rubber feet included.

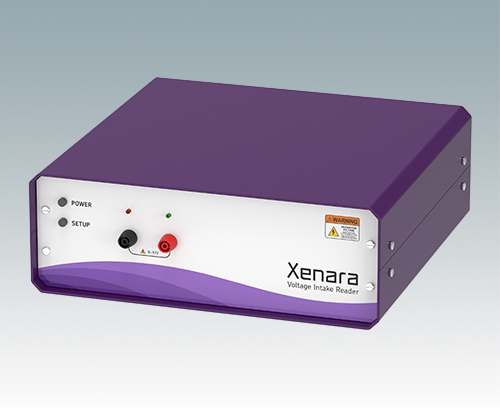

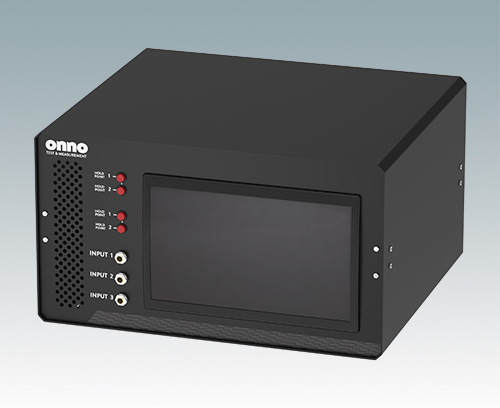

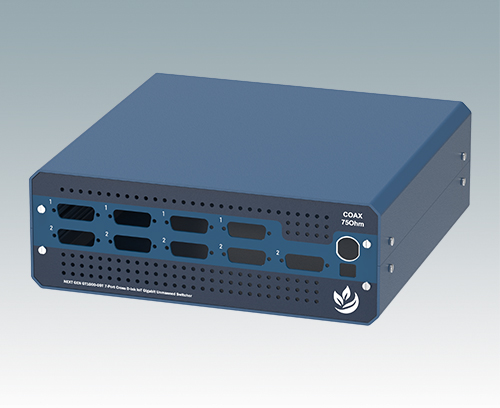

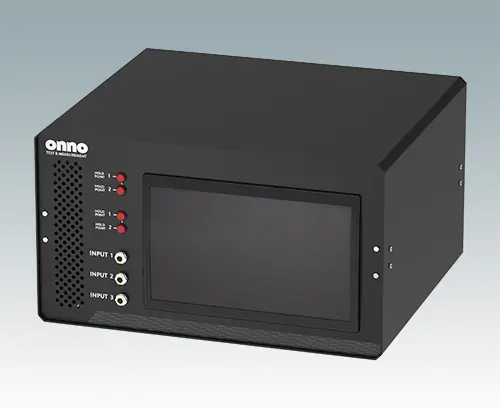

Order your own fully customized version learn more here >>

Generate PDF
  • Video

Application fields

Simple universal enclosures for measuring and control technology, feedback control, peripheral devices and interfaces, switchboxes, modems, medical field and laboratory technology.
  • Browse Full List
  • Accessories
  • Catalog Documents

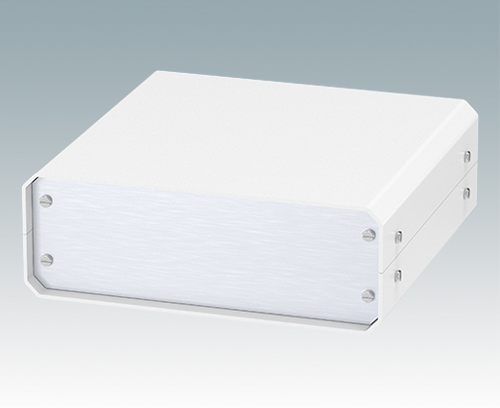

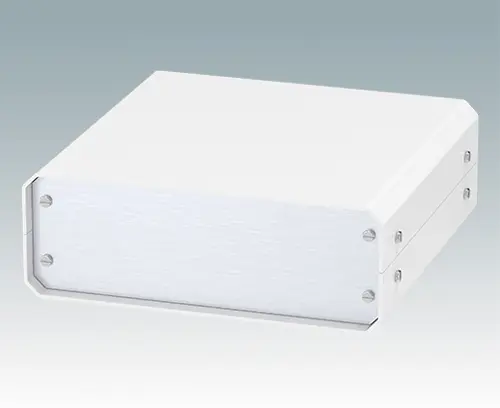

M5501110 UNICASE 1

M5501110

UNICASE 1 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5501110

UNICASE 1
product added to your basket
Aluminum
Light gray RAL 7035
7.28″x7.09″x2.56″
M5501119 UNICASE 1

M5501119

UNICASE 1 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5501119

UNICASE 1
product added to your basket
Aluminum
Black RAL 9005
7.28″x7.09″x2.56″

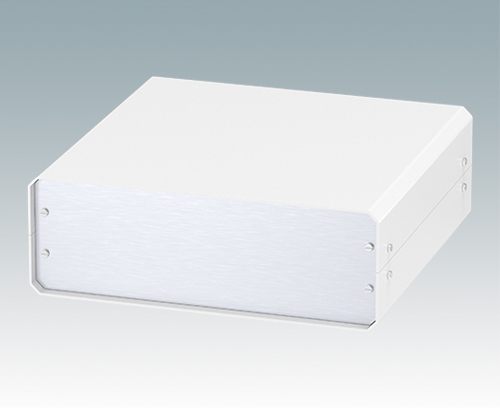

M5502110 UNICASE 2

M5502110

UNICASE 2 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5502110

UNICASE 2
product added to your basket
Aluminum
Light gray RAL 7035
10.24″x9.84″x3.54″
M5502119 UNICASE 2

M5502119

UNICASE 2 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5502119

UNICASE 2
product added to your basket
Aluminum
Black RAL 9005
10.24″x9.84″x3.54″

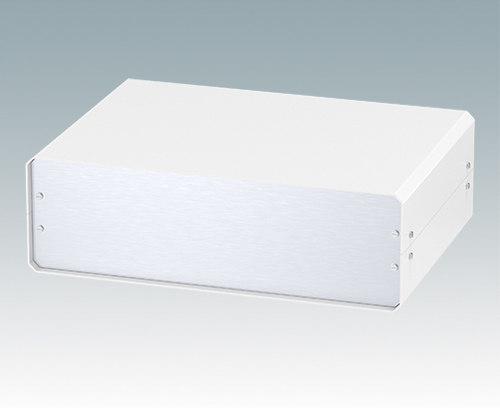

M5503110 UNICASE 3

M5503110

UNICASE 3 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5503110

UNICASE 3
product added to your basket
Aluminum
Light gray RAL 7035
13.78″x9.84″x4.33″
M5503119 UNICASE 3

M5503119

UNICASE 3 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5503119

UNICASE 3
product added to your basket
Aluminum
Black RAL 9005
13.78″x9.84″x4.33″

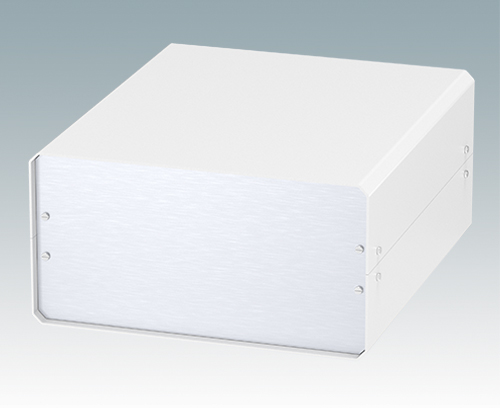

M5504110 UNICASE 4

M5504110

UNICASE 4 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5504110

UNICASE 4
product added to your basket
Aluminum
Light gray RAL 7035
10.28″x11.81″x5.30″
M5504119 UNICASE 4

M5504119

UNICASE 4

Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5504119

UNICASE 4
product added to your basket
Aluminum
Black RAL 9005
10.28″x11.81″x5.30″

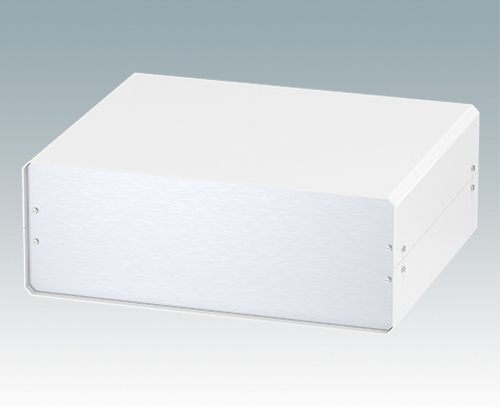

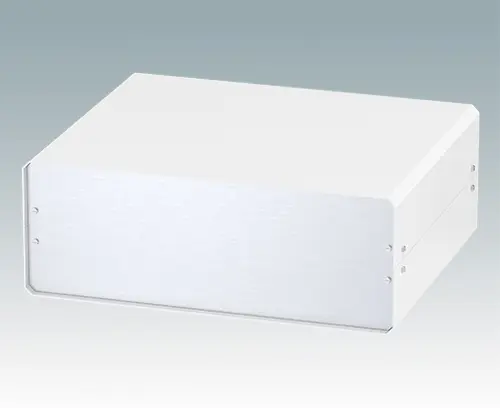

M5505110 UNICASE 5

M5505110

UNICASE 5 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5505110

UNICASE 5
product added to your basket
Aluminum
Light gray RAL 7035
14.45″x11.81″x5.30″
M5505119 UNICASE 5

M5505119

UNICASE 5 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5505119

UNICASE 5
product added to your basket
Aluminum
Black RAL 9005
14.45″x11.81″x5.30″

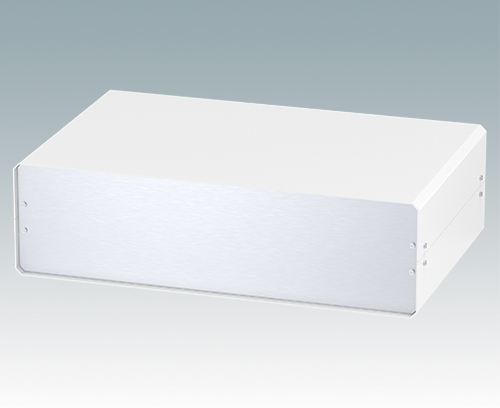

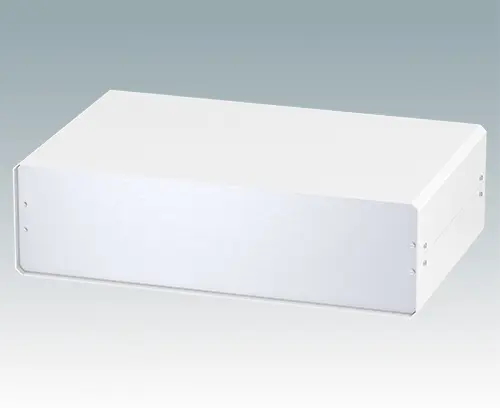

M5506110 UNICASE 6

M5506110

UNICASE 6 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5506110

UNICASE 6
product added to your basket
Aluminum
Light gray RAL 7035
18.66″x11.81″x5.30″
M5506119 UNICASE 6

M5506119

UNICASE 6 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5506119

UNICASE 6
product added to your basket
Aluminum
Black RAL 9005
18.66″x11.81″x5.30″

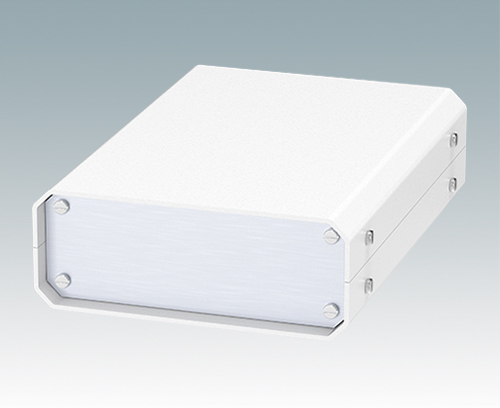

M5511110 UNICASE SL1

M5511110

UNICASE SL1 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5511110

UNICASE SL1
product added to your basket
Aluminum
Light gray RAL 7035
5.12″x7.09″x1.97″
M5511119 UNICASE SL1

M5511119

UNICASE SL1 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5511119

UNICASE SL1
product added to your basket
Aluminum
Black RAL 9005
5.12″x7.09″x1.97″

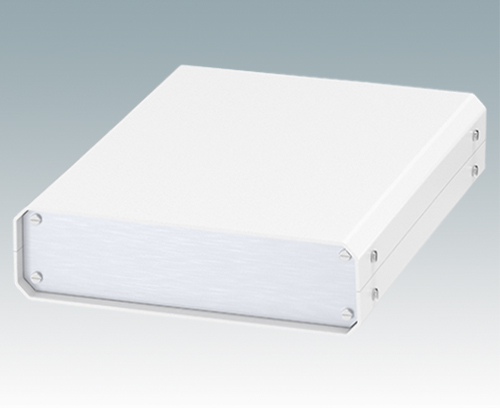

M5512110 UNICASE SL2

M5512110

UNICASE SL2 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5512110

UNICASE SL2
product added to your basket
Aluminum
Light gray RAL 7035
7.28″x9.84″x1.97″
M5512119 UNICASE SL2

M5512119

UNICASE SL2 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5512119

UNICASE SL2
product added to your basket
Aluminum
Black RAL 9005
7.28″x9.84″x1.97″

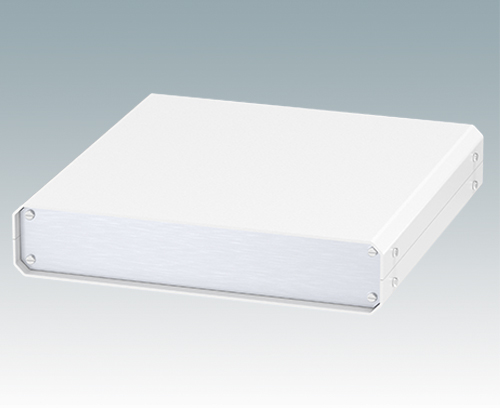

M5513110 UNICASE SL3

M5513110

UNICASE SL3 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5513110

UNICASE SL3
product added to your basket
Aluminum
Light gray RAL 7035
9.84″x9.84″x1.97″
M5513119 UNICASE SL3

M5513119

UNICASE SL3 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5513119

UNICASE SL3
product added to your basket
Aluminum
Black RAL 9005
9.84″x9.84″x1.97″

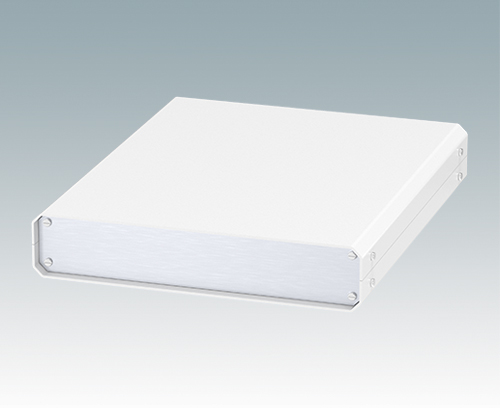

M5514110 UNICASE SL4

M5514110

UNICASE SL4 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5514110

UNICASE SL4
product added to your basket
Aluminum
Light gray RAL 7035
9.84″x11.81″x1.97″
M5514119 UNICASE SL4

M5514119

UNICASE SL4 Attractive and highly versatile aluminum enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodized aluminum front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

Close

M5514119

UNICASE SL4
product added to your basket
Aluminum
Black RAL 9005
9.84″x11.81″x1.97″

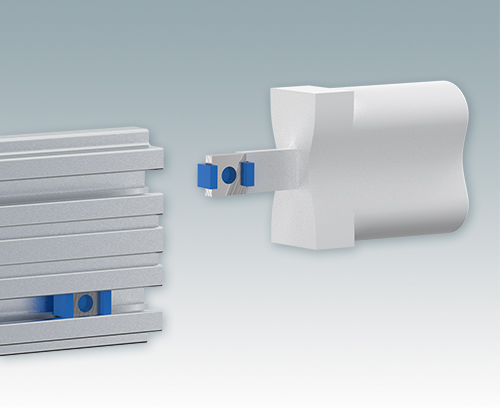

M5500001 Unicase Assembly Tool

M5500001

Unicase Assembly Tool

This assembly tool locates the blue threaded nut holders in the correct position in the UNICASE extrusions profiles. The nut holders are then aligned perfectly with the cover assembly screws every time. This improves assembly time of the enclosures, especially for regular production runs. The tool is 3D printed in tough PA2200 (Nylon).

Supply Assembly tool (x1)

Close

M5500001

Unicase Assembly Tool
product added to your basket
PA 2200 (Polyamide)
White
1.73″x0.51″x1.06″
M5600010 PCB Fixing Screws, M3

M5600010

PCB Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB Fixing Screws, M3
product added to your basket
Steel
Zinc coated
0.24″
