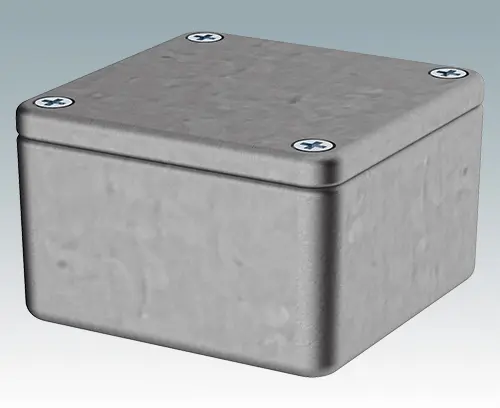

5001-11-NAT Diecast Enclosure
Scroll

5001-11-NAT

Diecast Enclosure

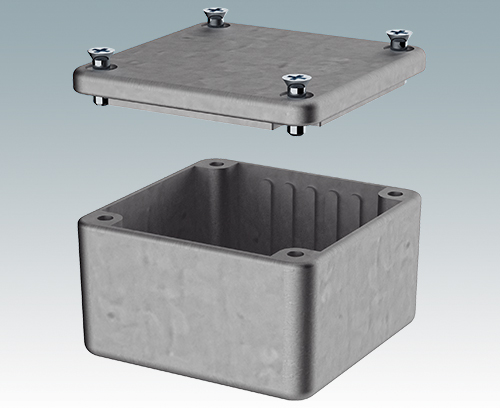

Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply

Base section, lid section, M3 lid screws (x4)

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for 5001-11-NAT

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

5000-KIT Mounting Lugs

5000-KIT

Mounting Lugs External mounting lugs kit for fixing the assembled enclosure to a wall, machine or panel. Adjustable to suit mounting holes.

Supply 4 mounting lugs.

Close

5000-KIT

Mounting Lugs
product added to your basket
Aluminum
Natural finish
FT094-505 Sealing Gasket (NEMA 4)

FT094-517

Sealing Gasket (NEMA 4) Molded sealing gasket which fits between to the base and lid sections.
Close

FT094-517

Sealing Gasket (NEMA 4)
product added to your basket
Rubber
Black
IP 65
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Diecast Aluminum
Protection class
IP 65 opt.
Color
Natural finish
Standards
REACH compliant
RoHS compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
1.969″
50 mm
Width
1.969″
50 mm
Height
1.220″
31 mm
PCB length, base
1.811″
46 mm
PCB width, base
1.811″
46 mm

Drawings

3D Models

Weight/1 part
65 g
Customs tariff number
(METCASE product)
8473302000
Country of manufacture
China
