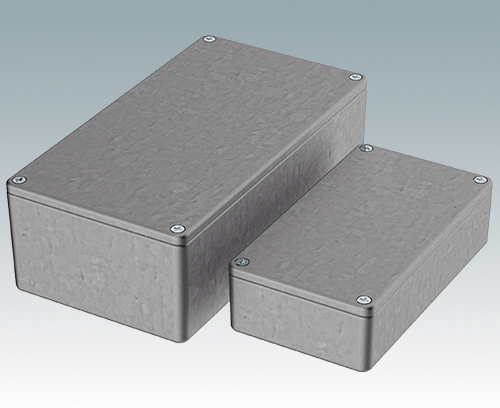

Diecast 5000

Universal diecast aluminum enclosures

  • Versatile diecast boxes for electronics equipment
  • Highly durable and shock resistant design
  • RFI/EMI shielding properties
  • Aluminum alloy ENAC 44200
  • Lid fitted with M3 machine screws
  • Temperature resistance up to 260°C (without sealing)

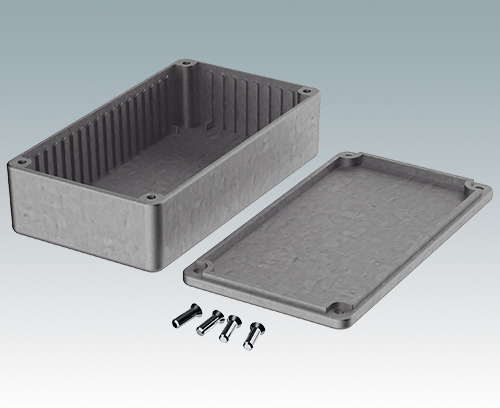

  • Stand-offs and vertical guides in base for locating PCBs and electronic assemblies
  • Optional IP 65 (NEMA 4) sealing gasket

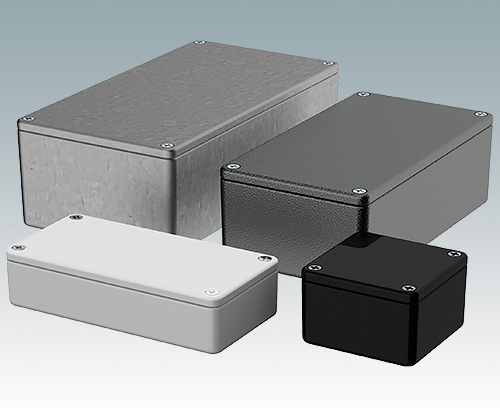

  • Available in natural finish, or painted white or black.

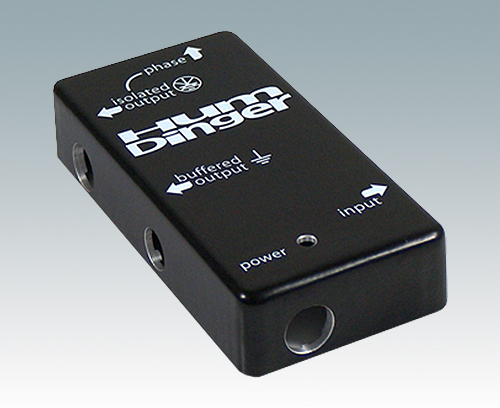

Order your own fully customized version learn more here >>

Generate PDF

Application fields

Remote indoor or outdoor electronic devices, terminal boxes, detectors, cable nodes, RF or wireless equipment, control boxes, instrumentation, test equipment
  • Browse Full List
  • Accessories

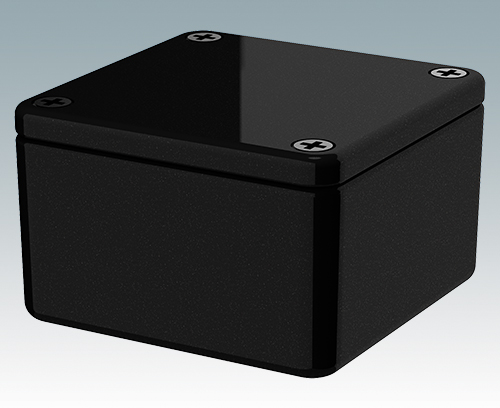

5001-11-BLK Diecast Enclosure

5001-11-BLK

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5001-11-BLK

Diecast Enclosure
product added to your basket
Diecast Aluminum
Black RAL 9004
1.97″x1.97″x1.22″
IP 65 opt.

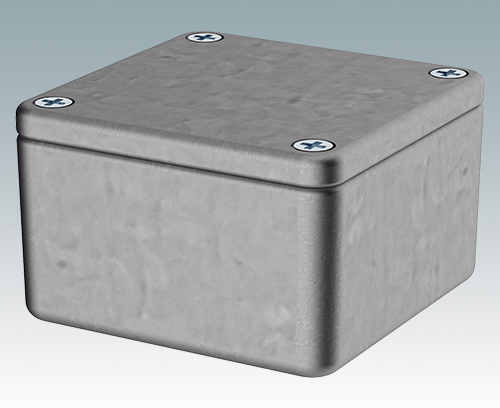

5001-11-NAT Diecast Enclosure

5001-11-NAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5001-11-NAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Natural finish
1.97″x1.97″x1.22″
IP 65 opt.

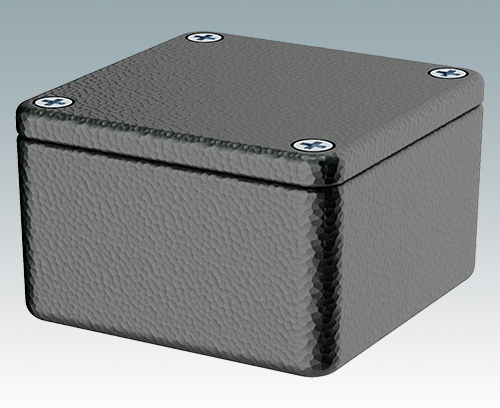

5001-11-PAT Diecast Enclosure

5001-11-PAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5001-11-PAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Hammertone
1.97″x1.97″x1.22″
IP 65 opt.

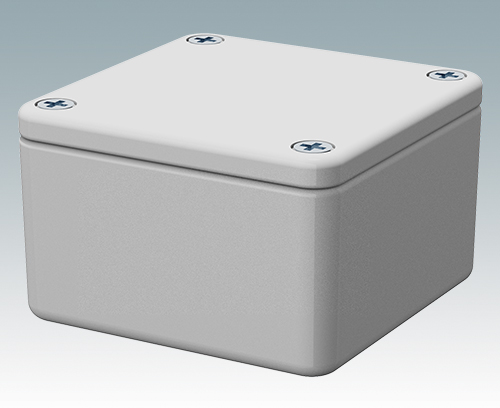

5001-11-WH Diecast Enclosure

5001-11-WH

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5001-11-WH

Diecast Enclosure
product added to your basket
Diecast Aluminum
Pure white RAL 9010
1.97″x1.97″x1.22″
IP 65 opt.

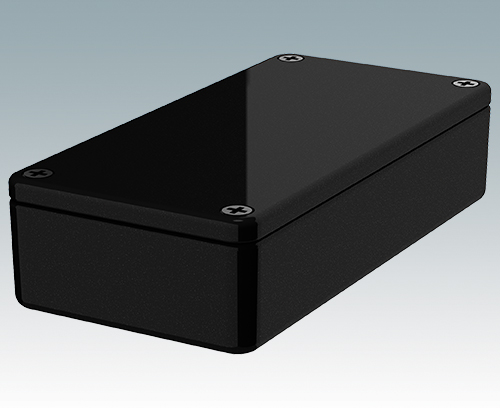

5002-12-BLK Diecast Enclosure

5002-12-BLK

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5002-12-BLK

Diecast Enclosure
product added to your basket
Diecast Aluminum
Black RAL 9004
3.98″x1.97″x0.98″
IP 65 opt.

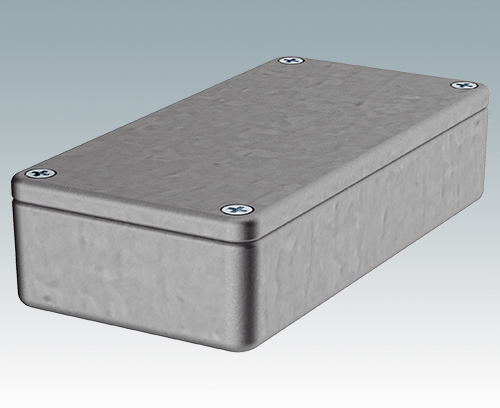

5002-12-NAT Diecast Enclosure

5002-12-NAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5002-12-NAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Natural finish
3.98″x1.97″x0.98″
IP 65 opt.

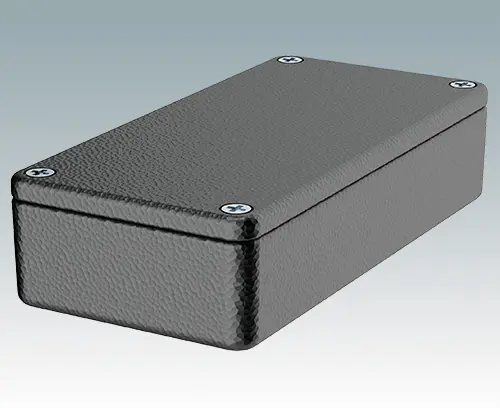

5002-12-PAT Diecast Enclosure

5002-12-PAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5002-12-PAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Hammertone
3.98″x1.97″x0.98″
IP 65 opt.

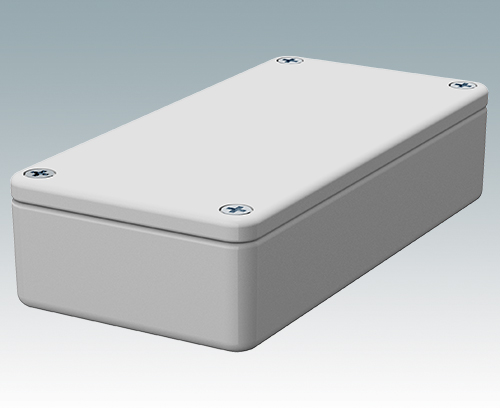

5002-12-WH Diecast Enclosure

5002-12-WH

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5002-12-WH

Diecast Enclosure
product added to your basket
Diecast Aluminum
Pure white RAL 9010
3.98″x1.97″x0.98″
IP 65 opt.

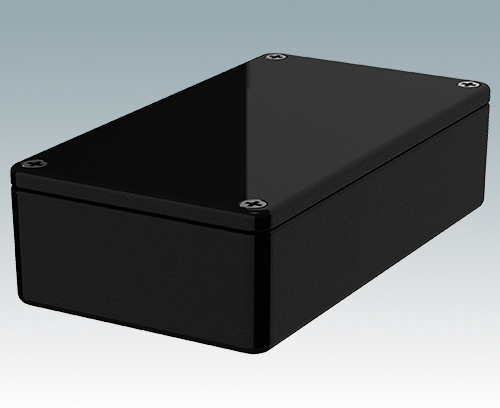

5003-13-BLK Diecast Enclosure

5003-13-BLK

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5003-13-BLK

Diecast Enclosure
product added to your basket
Diecast Aluminum
Black RAL 9004
4.41″x2.44″x1.20″
IP 65 opt.

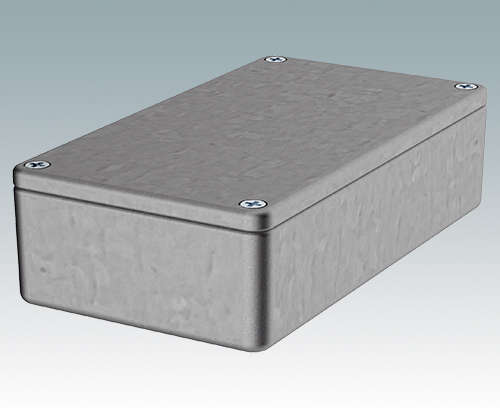

5003-13-NAT Diecast Enclosure

5003-13-NAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5003-13-NAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Natural finish
4.41″x2.44″x1.20″
IP 65 opt.

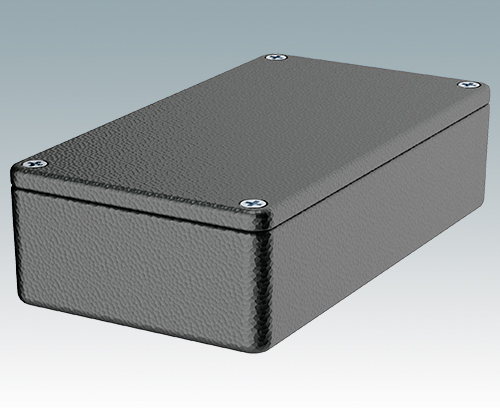

5003-13-PAT Diecast Enclosure

5003-13-PAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5003-13-PAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Hammertone
4.41″x2.44″x1.20″
IP 65 opt.

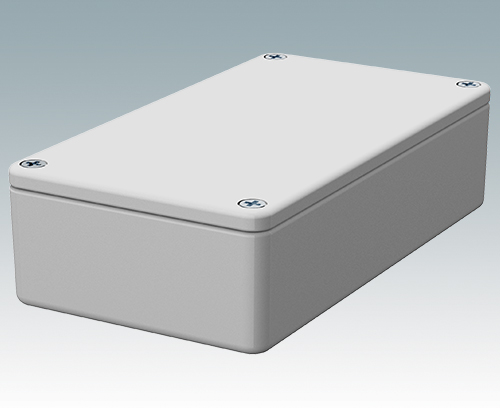

5003-13-WH Diecast Enclosure

5003-13-WH

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5003-13-WH

Diecast Enclosure
product added to your basket
Diecast Aluminum
Pure white RAL 9010
4.41″x2.44″x1.20″
IP 65 opt.

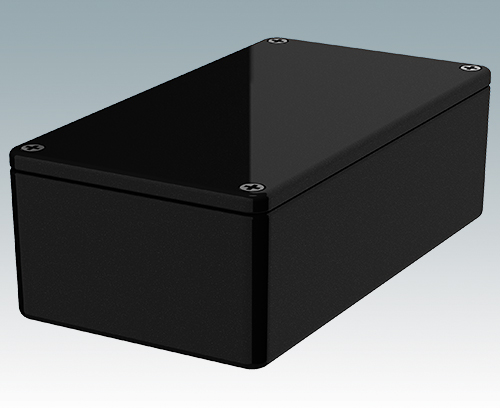

5004-14-BLK Diecast Enclosure

5004-14-BLK

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5004-14-BLK

Diecast Enclosure
product added to your basket
Diecast Aluminum
Black RAL 9004
4.72″x2.60″x1.57″
IP 65 opt.

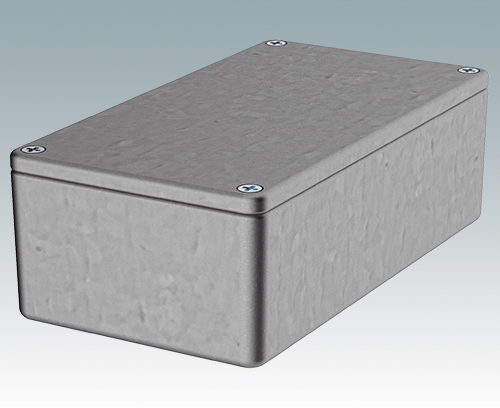

5004-14-NAT Diecast Enclosure

5004-14-NAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5004-14-NAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Natural finish
4.72″x2.60″x1.57″
IP 65 opt.
5004-14-PAT Diecast Enclosure

5004-14-PAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5004-14-PAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Hammertone
4.72″x2.60″x1.57″
IP 65 opt.

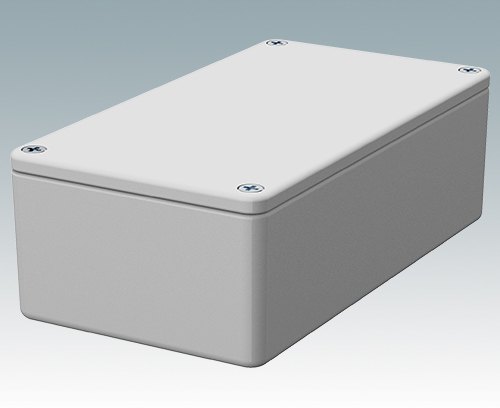

5004-14-WH Diecast Enclosure

5004-14-WH

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5004-14-WH

Diecast Enclosure
product added to your basket
Diecast Aluminum
Pure white RAL 9010
4.72″x2.60″x1.57″
IP 65 opt.

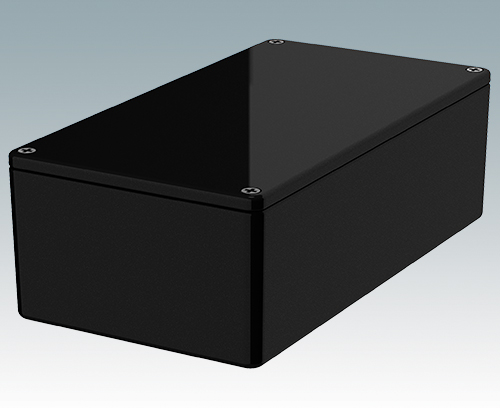

5005-15-BLK Diecast Enclosure

5005-15-BLK

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5005-15-BLK

Diecast Enclosure
product added to your basket
Diecast Aluminum
Black RAL 9004
5.98″x3.23″x1.97″
IP 65 opt.

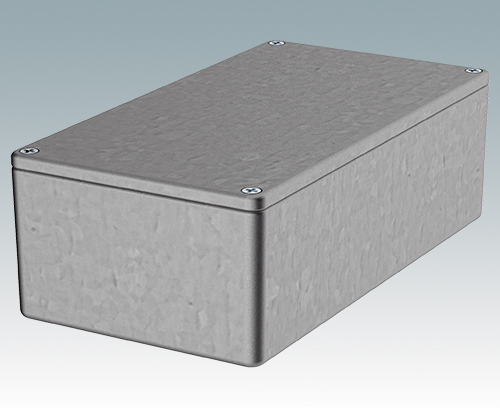

5005-15-NAT Diecast Enclosure

5005-15-NAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5005-15-NAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Natural finish
5.98″x3.23″x1.97″
IP 65 opt.

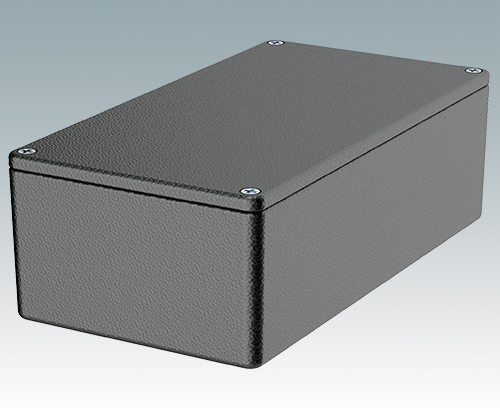

5005-15-PAT Diecast Enclosure

5005-15-PAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5005-15-PAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Hammertone
5.98″x3.23″x1.97″
IP 65 opt.

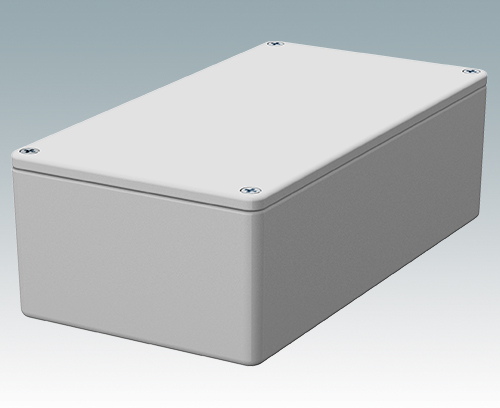

5005-15-WH Diecast Enclosure

5005-15-WH

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5005-15-WH

Diecast Enclosure
product added to your basket
Diecast Aluminum
Pure white RAL 9010
5.98″x3.23″x1.97″
IP 65 opt.

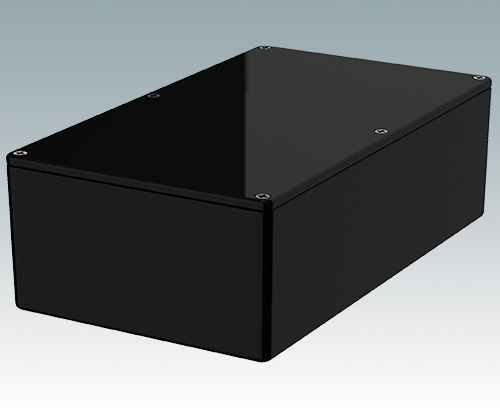

5006-16-BLK Diecast Enclosure

5006-16-BLK

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5006-16-BLK

Diecast Enclosure
product added to your basket
Diecast Aluminum
Black RAL 9004
7.56″x4.41″x2.40″
IP 65 opt.

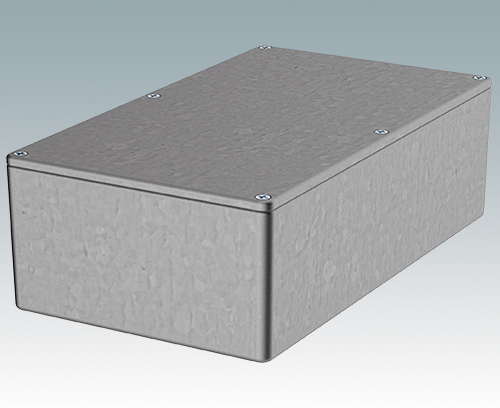

5006-16-NAT Diecast Enclosure

5006-16-NAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5006-16-NAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Natural finish
7.56″x4.41″x2.40″
IP 65 opt.

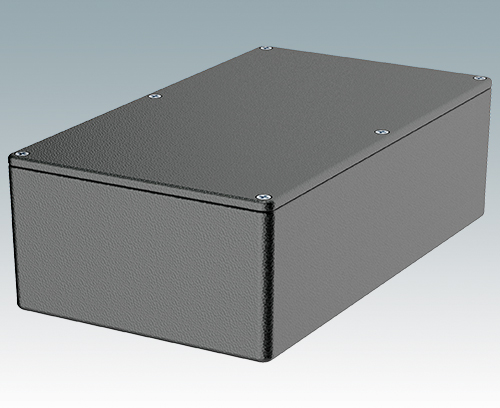

5006-16-PAT Diecast Enclosure

5006-16-PAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5006-16-PAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Hammertone
7.56″x4.41″x2.40″
IP 65 opt.

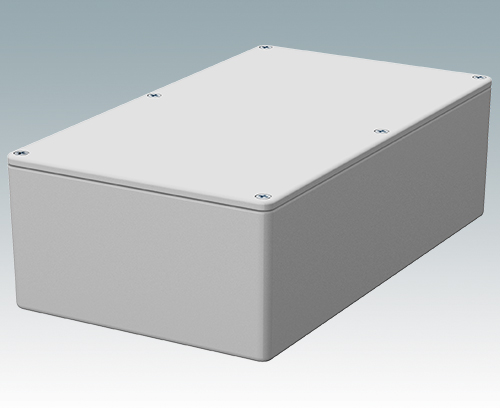

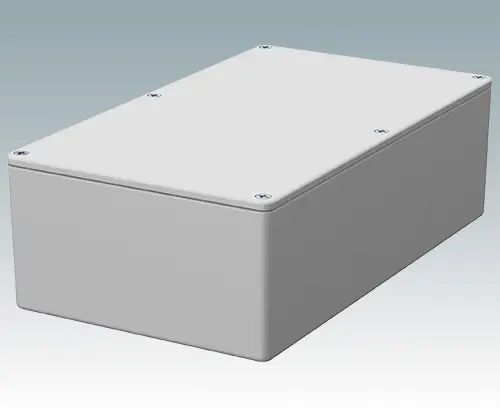

5006-16-WH Diecast Enclosure

5006-16-WH

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5006-16-WH

Diecast Enclosure
product added to your basket
Diecast Aluminum
Pure white RAL 9010
7.56″x4.41″x2.40″
IP 65 opt.

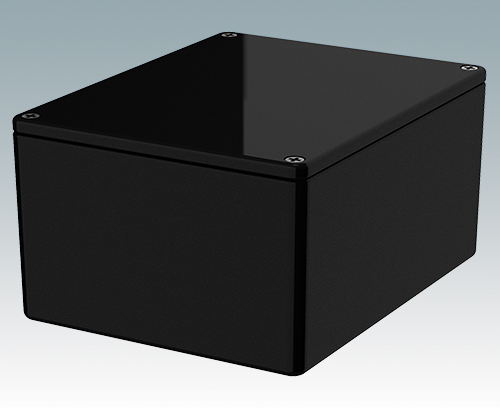

5007-17-BLK Diecast Enclosure

5007-17-BLK

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5007-17-BLK

Diecast Enclosure
product added to your basket
Diecast Aluminum
Black RAL 9004
4.76″x3.74″x2.40″
IP 65 opt.

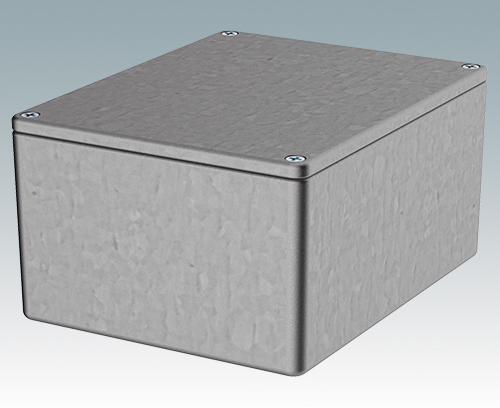

5007-17-NAT Diecast Enclosure

5007-17-NAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5007-17-NAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Natural finish
4.76″x3.74″x2.40″
IP 65 opt.

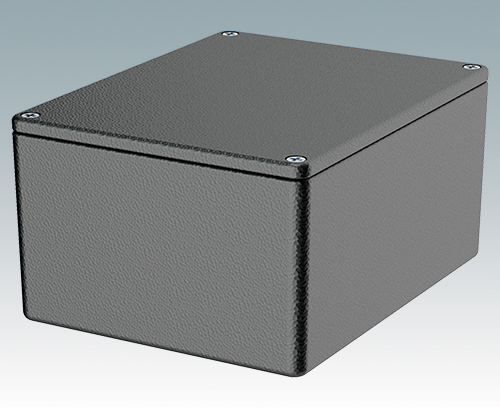

5007-17-PAT Diecast Enclosure

5007-17-PAT

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5007-17-PAT

Diecast Enclosure
product added to your basket
Diecast Aluminum
Hammertone
4.76″x3.74″x2.40″
IP 65 opt.

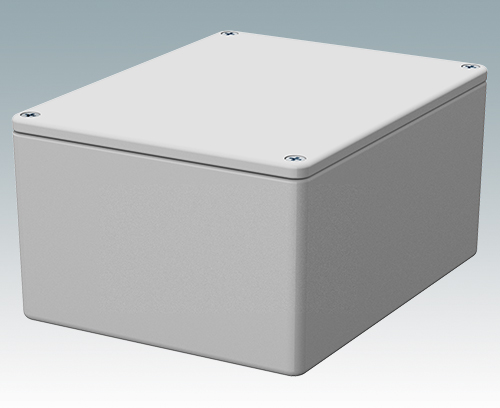

5007-17-WH Diecast Enclosure

5007-17-WH

Diecast Enclosure Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply Base section, lid section, M3 lid screws (x4)

Close

5007-17-WH

Diecast Enclosure
product added to your basket
Diecast Aluminum
Pure white RAL 9010
4.76″x3.74″x2.40″
IP 65 opt.

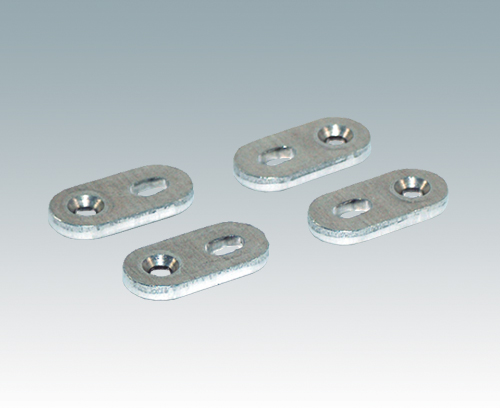

5000-KIT Mounting Lugs

5000-KIT

Mounting Lugs External mounting lugs kit for fixing the assembled enclosure to a wall, machine or panel. Adjustable to suit mounting holes.

Supply 4 mounting lugs.

Close

5000-KIT

Mounting Lugs
product added to your basket
Aluminum
Natural finish

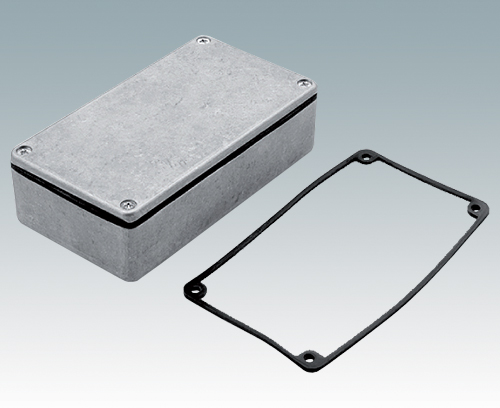

FT094-505 Sealing Gasket (NEMA 4)

FT094-517

Sealing Gasket (NEMA 4) Molded sealing gasket which fits between to the base and lid sections.
Close

FT094-517

Sealing Gasket (NEMA 4)
product added to your basket
Rubber
Black
IP 65
