M7000700 Front Panel A – C218
Scroll

M7000700

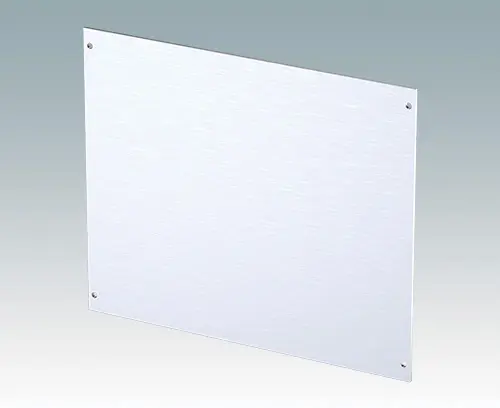

Front Panel A – C218

Anodized front panel for enclosure version C218.

Supply

Front panel (fixings supplied with the cases).

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M7000700

Please select the product details you would like to include in the PDF.

Close
  • To be used for
M7023002 TECHNOMET-CONTROL C218V

M7023002

TECHNOMET-CONTROL C218V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: KTP400, MTP400
TURCK: TX705, TX805
BEIJER: X2 base 5 v2, X2 Pro 4

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M7023002

TECHNOMET-CONTROL C218V
product added to your basket
Aluminum
Traffic Gray A RAL 7042
9.06″x7.09″x3.74″
M7023006 TECHNOMET-CONTROL C218V

M7023006

TECHNOMET-CONTROL C218V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: KTP400, MTP400
TURCK: TX705, TX805
BEIJER: X2 base 5 v2, X2 Pro 4

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M7023006

TECHNOMET-CONTROL C218V
product added to your basket
Aluminum
Traffic white/traffic gray RAL 9016/7042
9.06″x7.09″x3.74″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Matt anodized
Standards
REACH compliant
RoHS compliant
Width
7.953″
202 mm
Height
0.079″
2 mm
Depth
6.724″
170.8 mm

Catalog Pages

Drawings

3D Models

Weight/1 part
0.2 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
U.K.
