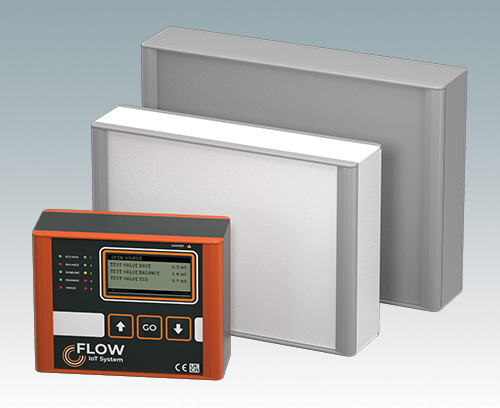

Technomet-Control

Modern, highly versatile VESA-mount enclosures for HMI, electronic controls, instrumentation

  • Advanced aluminum housings developed for the installation of standard displays, panel PCs, HMIs (Siemens, Turck Banner, Beijer, Beckhoff, B&R...) and touchscreens of various sizes
  • Cohesive design in four standard sizes with a slim profile just 3.74" deep

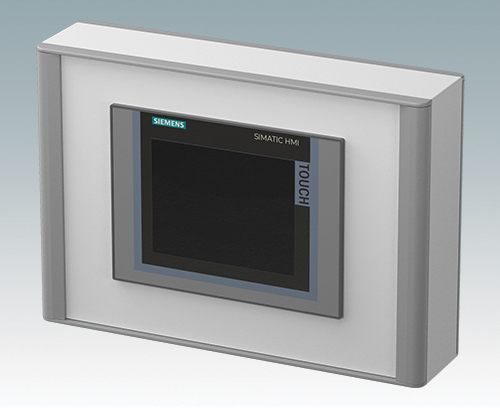

  • Specifically suitable for Siemens TP displays, screen sizes KTP400 to TP1200 – Download datasheet >>
  • Compatible with Turck displays, model types TX705 to TX810 – Download datasheet >>
  • Compatible with Beijer displays model types X2 – Download datasheet >>

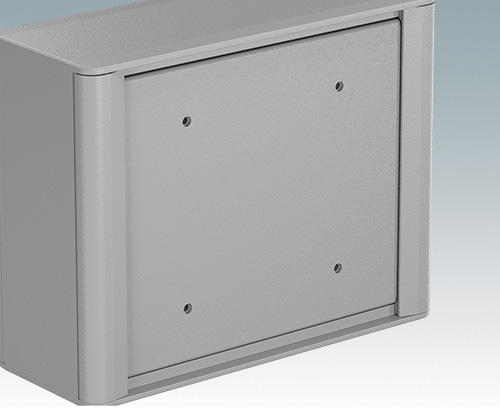

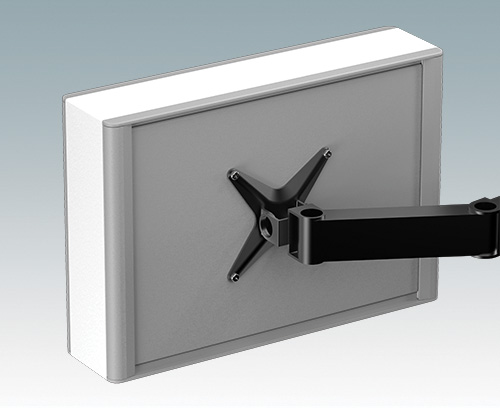

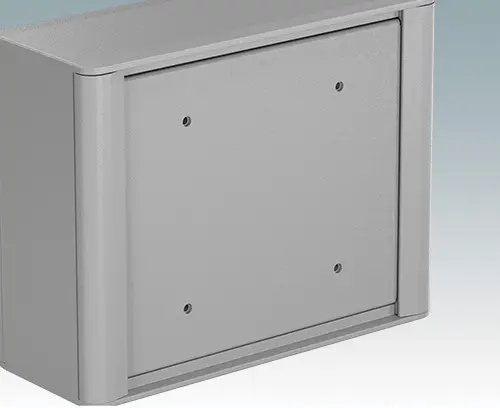

  • Standard VESA MIS-D 100 mounting on the rear for a control arm, wall bracket etc.
  • Diecast front/rear bezels fit flush with the case body for a smooth appearance

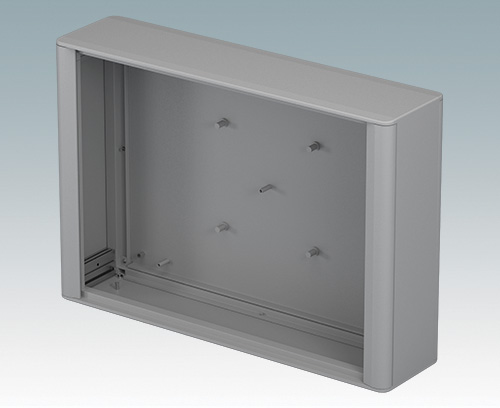

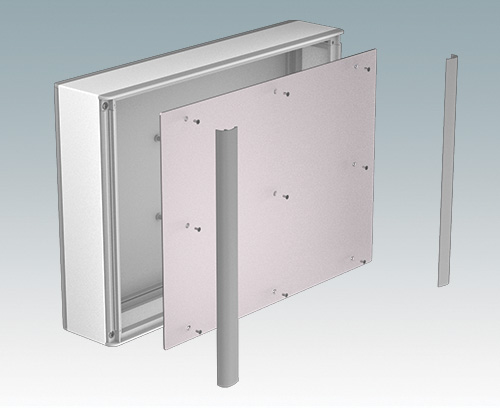

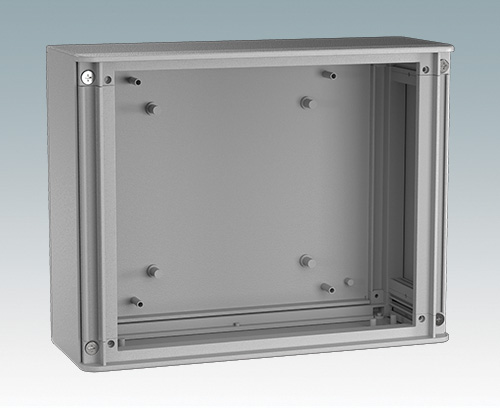

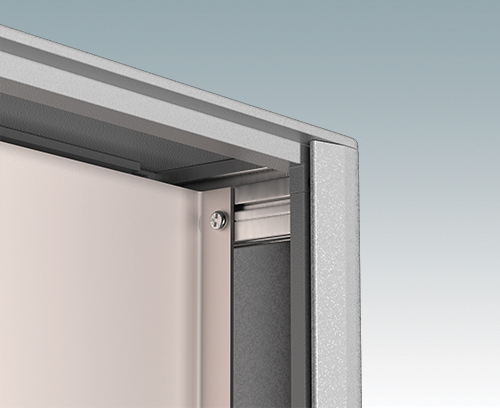

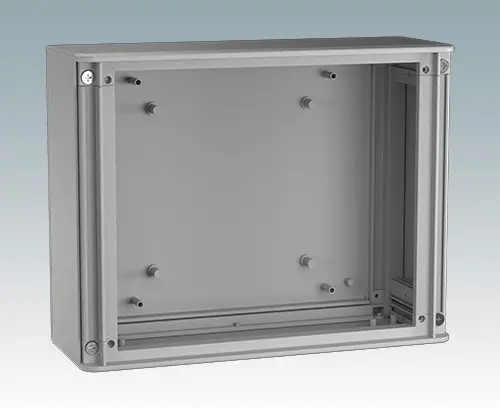

  • Standard internal mounting options – M3 PCB pillars on the rear panel, M3 holes and guide rails in the assembly extrusions for holding internal plates

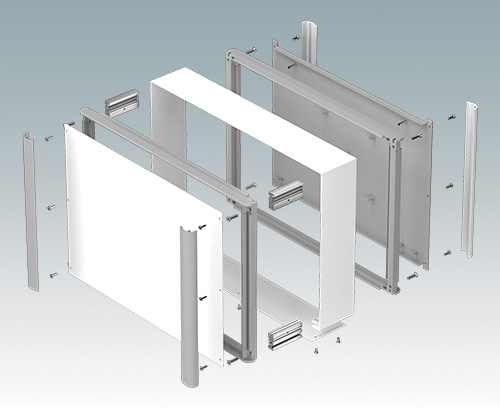

  • Clever internal extrusion design means the product is cost-effective, yet easy to customize in any size, with excellent space for connectors

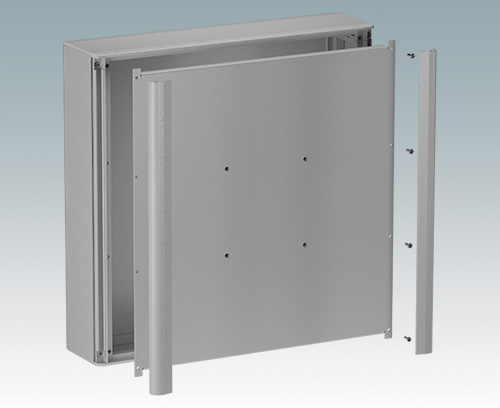

  • Snap-on trims in the front/rear bezels hide all the assembly screws

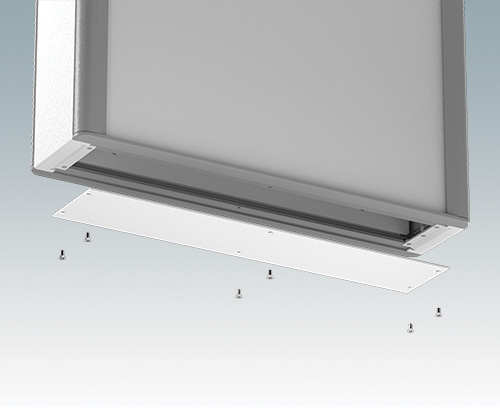

  • Removable base panel on the underside with space for cable entry

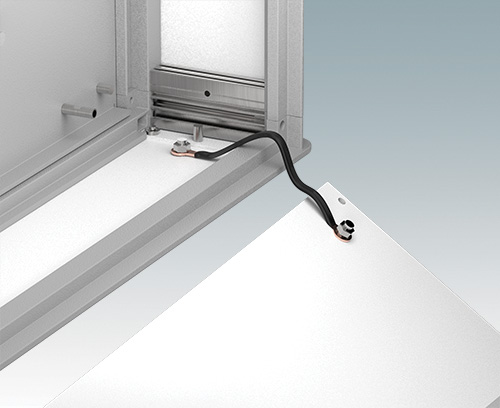

  • All case panels fitted with M4 threaded pillars for earth connections

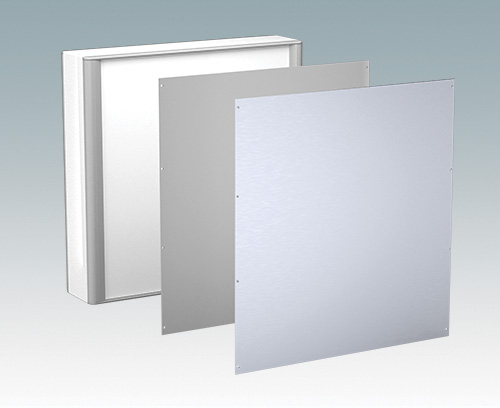

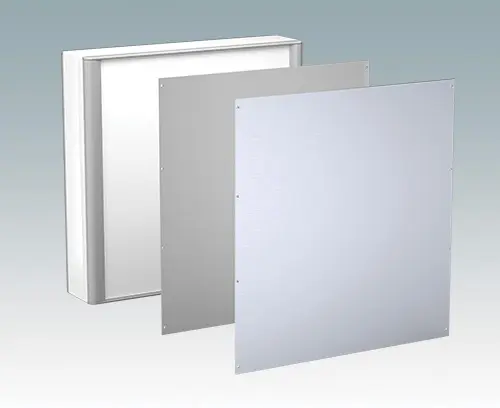

  • Anodized and painted front panels (accessories) – recessed in the bezels to protect displays, keypads etc.

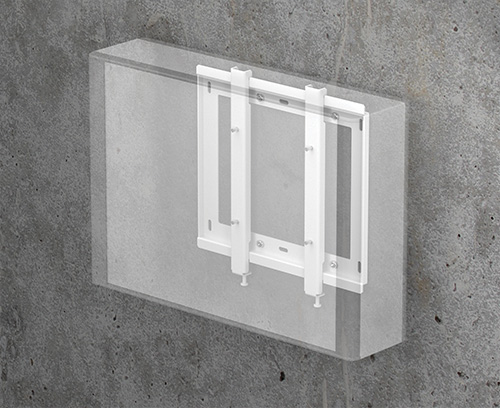

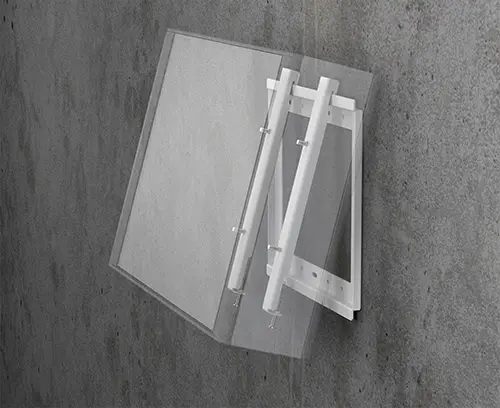

  • Direct wall/machine mounting (with accessory kit)

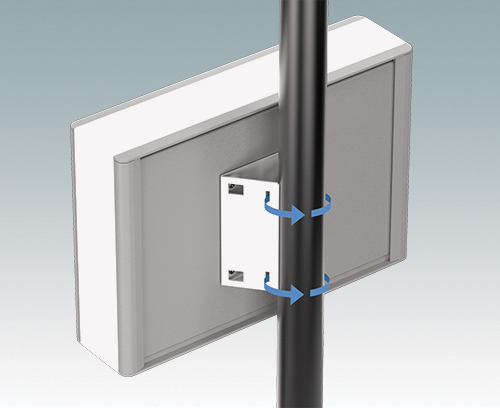

  • Accessory pole mounting bracket for poles ⌀1.97" or larger

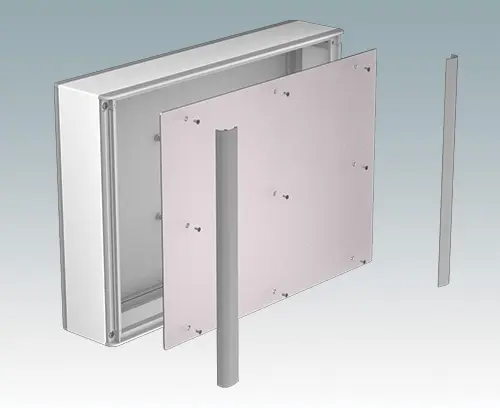

  • Accessory internal mount plate kit.

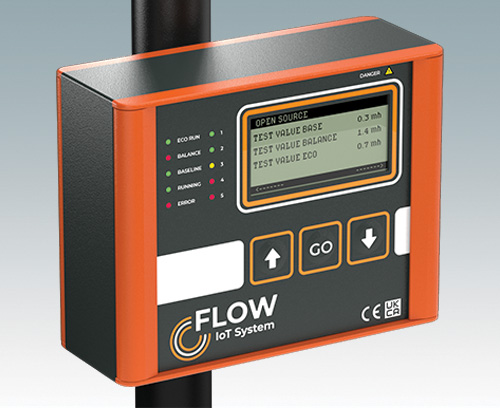

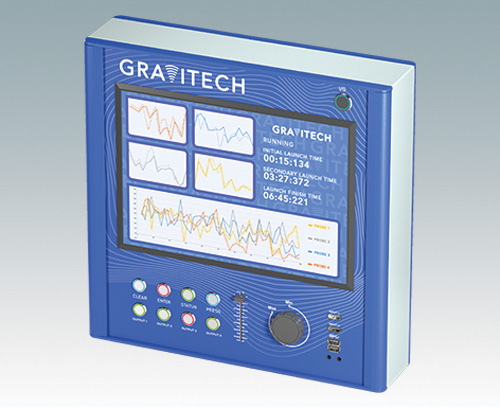

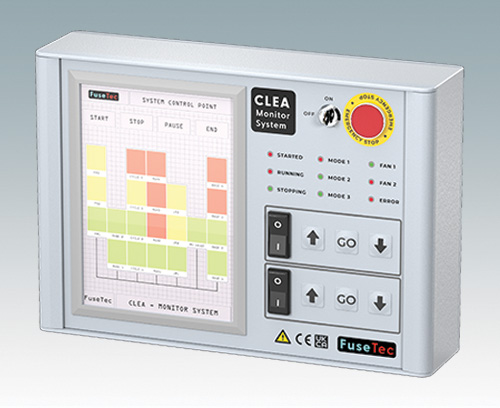

Order your own fully customized version learn more here >>

Generate PDF
  • Video

Application fields

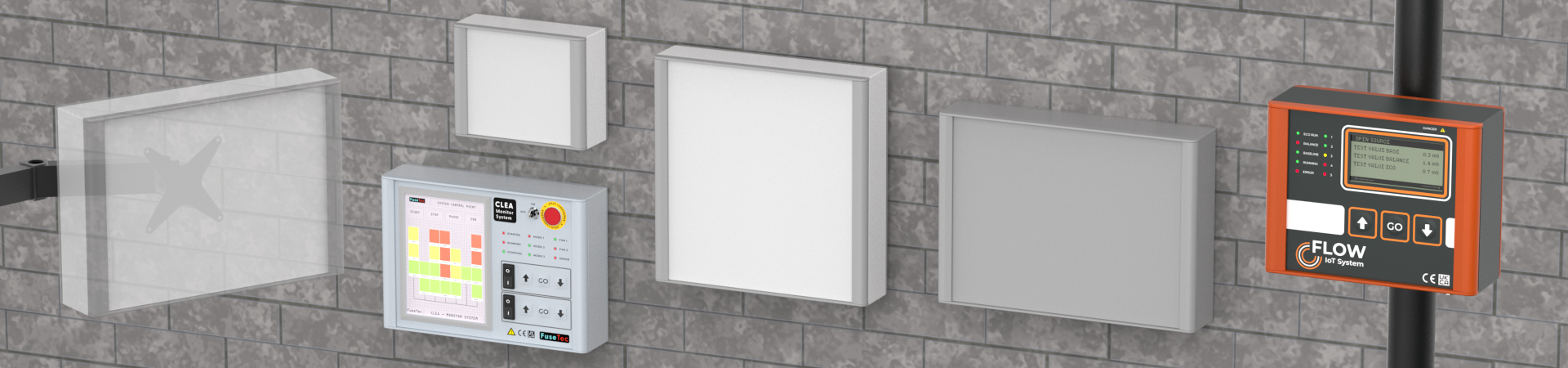

Modern enclosures for indoor applications such as machine control systems, HMI equipment, panel PCs, factory processing, security systems, industrial control, test and measurement devices, point-of-sale terminals, IIoT and detection equipment.
  • Browse Full List
  • Accessories
  • Catalog Documents

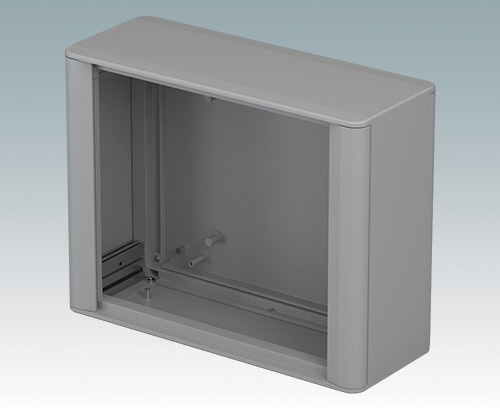

M7023002 TECHNOMET-CONTROL C218V

M7023002

TECHNOMET-CONTROL C218V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: KTP400, MTP400
TURCK: TX705, TX805
BEIJER: X2 base 5 v2, X2 Pro 4

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M7023002

TECHNOMET-CONTROL C218V
product added to your basket
Aluminum
Traffic Gray A RAL 7042
9.06″x7.09″x3.74″

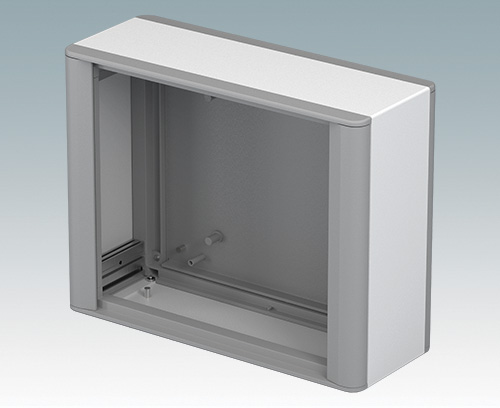

M7023006 TECHNOMET-CONTROL C218V

M7023006

TECHNOMET-CONTROL C218V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: KTP400, MTP400
TURCK: TX705, TX805
BEIJER: X2 base 5 v2, X2 Pro 4

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M7023006

TECHNOMET-CONTROL C218V
product added to your basket
Aluminum
Traffic white/traffic gray RAL 9016/7042
9.06″x7.09″x3.74″
M7036102 TECHNOMET-CONTROL C325V

M7036102

TECHNOMET-CONTROL C325V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.

Close

M7036102

TECHNOMET-CONTROL C325V
product added to your basket
Aluminum
Traffic Gray A RAL 7042
14.17″x9.84″x3.74″

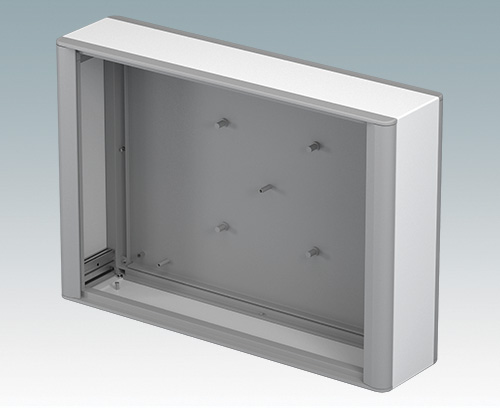

M7036106 TECHNOMET-CONTROL C325V

M7036106

TECHNOMET-CONTROL C325V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.

Close

M7036106

TECHNOMET-CONTROL C325V
product added to your basket
Aluminum
Traffic white/traffic gray RAL 9016/7042
14.17″x9.84″x3.74″

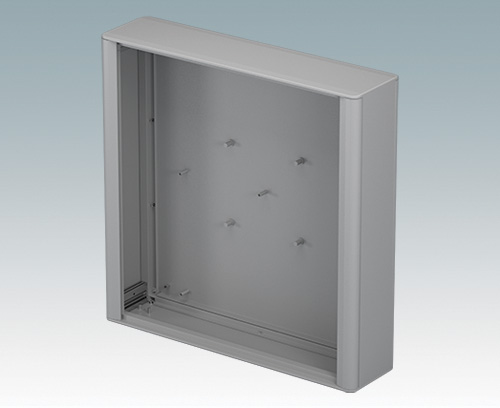

M7036402 TECHNOMET-CONTROL C336V

M7036402

TECHNOMET-CONTROL C336V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x16), M4 x 16 mm (x8). Supplied assembled.

Close

M7036402

TECHNOMET-CONTROL C336V
product added to your basket
Aluminum
Traffic Gray A RAL 7042
14.17″x14.17″x3.74″

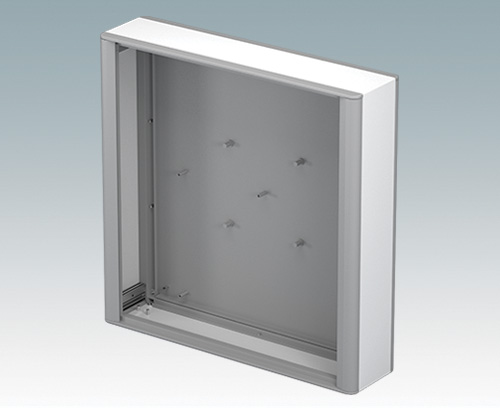

M7036406 TECHNOMET-CONTROL C336V

M7036406

TECHNOMET-CONTROL C336V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x16), M4 x 16 mm (x8). Supplied assembled.

Close

M7036406

TECHNOMET-CONTROL C336V
product added to your basket
Aluminum
Traffic white/traffic gray RAL 9016/7042
14.17″x14.17″x3.74″

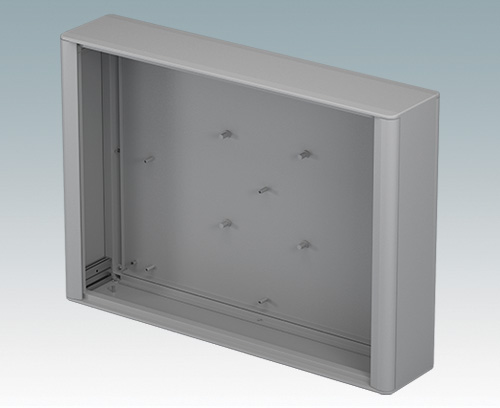

M7042202 TECHNOMET-CONTROL C430V

M7042202

TECHNOMET-CONTROL C430V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP900, MTP1000, TP1200, MTP1200
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10/12

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.

Close

M7042202

TECHNOMET-CONTROL C430V
product added to your basket
Aluminum
Traffic Gray A RAL 7042
16.54″x11.81″x3.74″

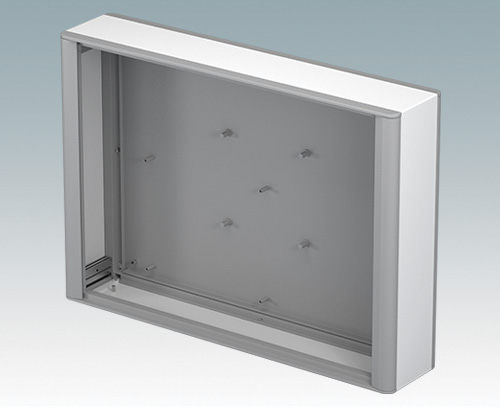

M7042206 TECHNOMET-CONTROL C430V

M7042206

TECHNOMET-CONTROL C430V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP900, MTP1000, TP1200, MTP1200
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10/12

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.

Close

M7042206

TECHNOMET-CONTROL C430V
product added to your basket
Aluminum
Traffic white/traffic gray RAL 9016/7042
16.54″x11.81″x3.74″

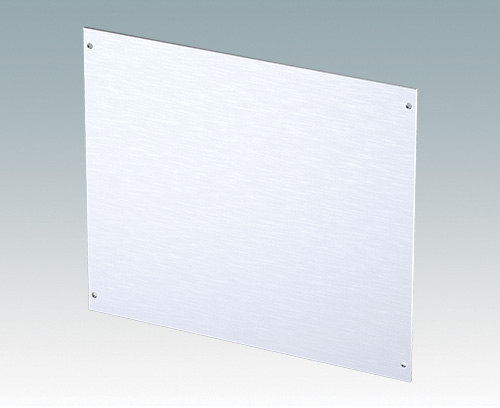

M7000700 Front Panel A – C218

M7000700

Front Panel A – C218 Anodized front panel for enclosure version C218.

Supply Front panel (fixings supplied with the cases).

Close

M7000700

Front Panel A – C218
product added to your basket
Aluminum
Matt anodized
7.95″x0.08″x6.72″

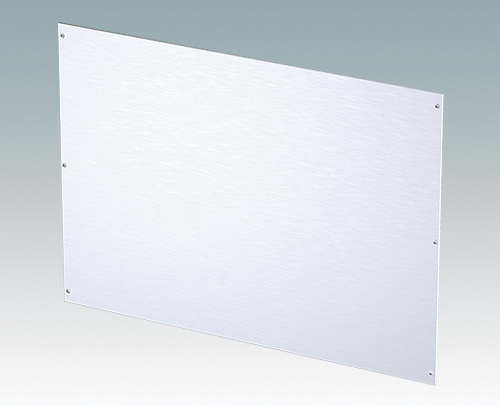

M7000702 Front Panel A – C325

M7000702

Front Panel A – C325 Anodized front panel for enclosure version C325.

Supply Front panel (fixings supplied with the cases).

Close

M7000702

Front Panel A – C325
product added to your basket
Aluminum
Matt anodized
13.07″x0.08″x9.48″

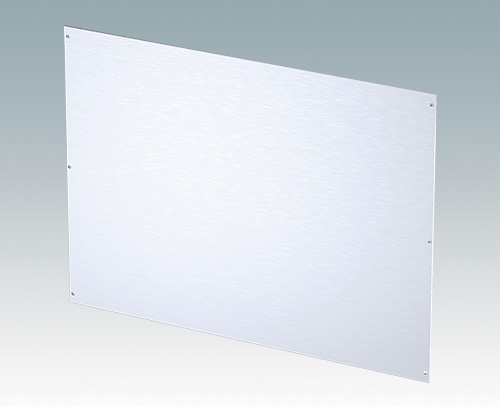

M7000704 Front Panel A – C336

M7000704

Front Panel A – C336 Anodized front panel for enclosure version C336.

Supply Front panel (fixings supplied with the cases).

Close

M7000704

Front Panel A – C336
product added to your basket
Aluminum
Matt anodized
13.07″x0.08″x13.81″

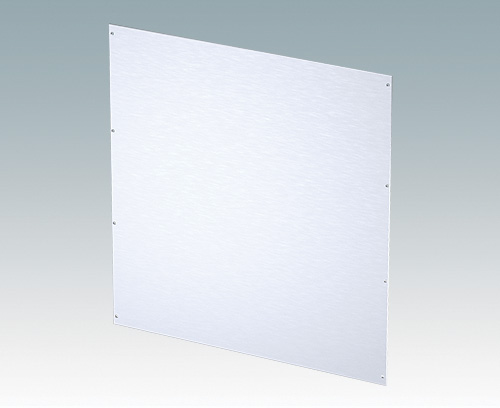

M7000706 Front Panel A – C430

M7000706

Front Panel A – C430 Anodized front panel for enclosure version C430.

Supply Front panel (fixings supplied with the cases).

Close

M7000706

Front Panel A – C430
product added to your basket
Aluminum
Matt anodized
15.43″x0.08″x11.45″

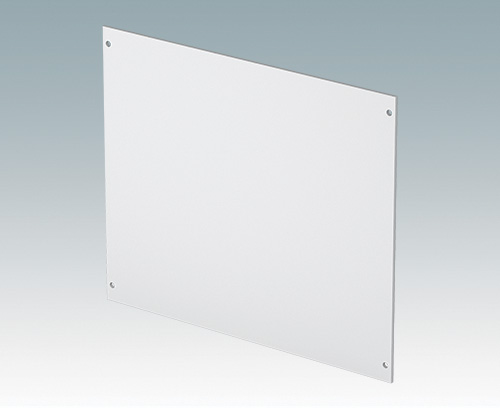

M7000720 Front Panel P – C218

M7000720

Front Panel P – C218 Painted front panel for enclosure version C218.

Supply Front panel (fixings supplied with the cases).

Close

M7000720

Front Panel P – C218
product added to your basket
Aluminum
Traffic White RAL 9016
7.95″x0.08″x6.72″

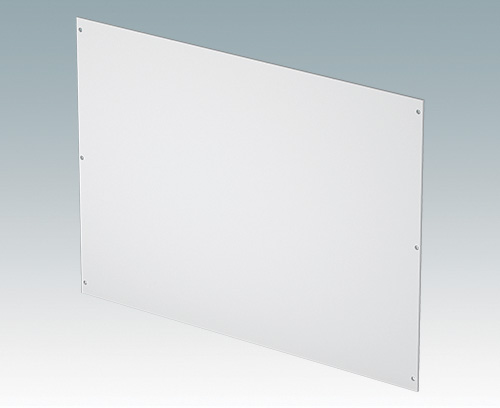

M7000722 Front Panel P – C325

M7000722

Front Panel P – C325 Painted front panel for enclosure version C325.

Supply Front panel (fixings supplied with the cases).

Close

M7000722

Front Panel P – C325
product added to your basket
Aluminum
Traffic White RAL 9016
13.07″x0.08″x9.48″

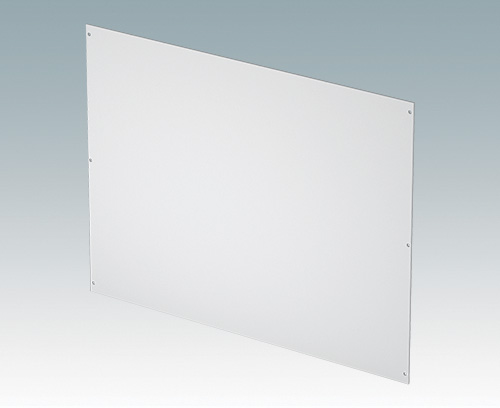

M7000724 Front Panel P – C336

M7000724

Front Panel P – C336 Painted front panel for enclosure version C336.

Supply Front panel (fixings supplied with the cases).

Close

M7000724

Front Panel P – C336
product added to your basket
Aluminum
Traffic White RAL 9016
13.07″x0.08″x13.81″

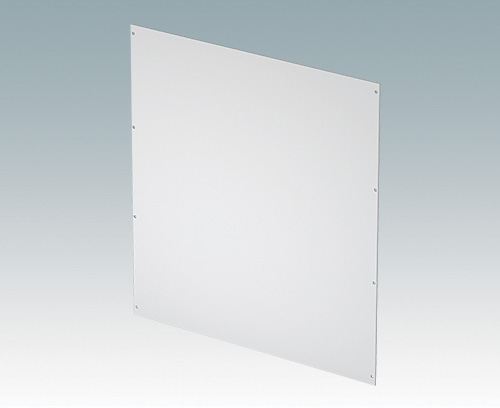

M7000726 Front Panel P – C430

M7000726

Front Panel P – C430 Painted front panel for enclosure version C430.

Supply Front panel (fixings supplied with the cases).

Close

M7000726

Front Panel P – C430
product added to your basket
Aluminum
Traffic White RAL 9016
15.43″x0.08″x11.45″

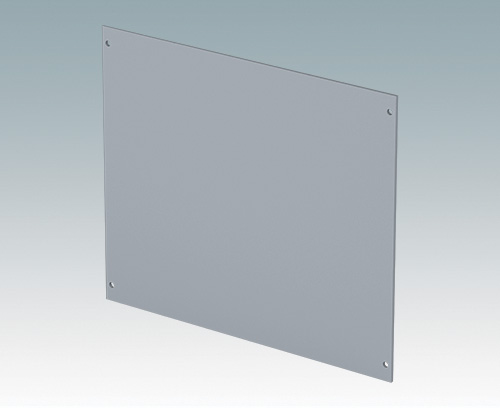

M7000740 Front Panel P – C218

M7000740

Front Panel P – C218 Painted front panel for enclosure version C218.

Supply Front panel (fixings supplied with the cases).

Close

M7000740

Front Panel P – C218
product added to your basket
Aluminum
Traffic Gray A RAL 7042
7.95″x0.08″x6.72″

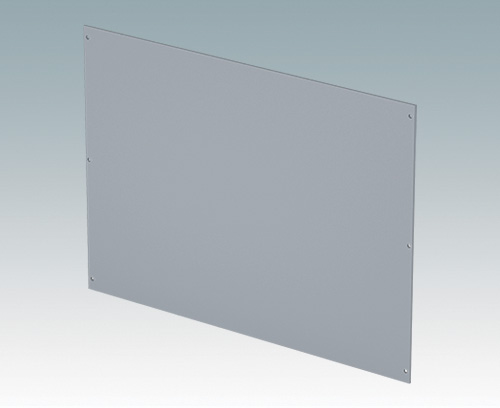

M7000742 Front Panel P – C325

M7000742

Front Panel P – C325 Painted front panel for enclosure version C325.

Supply Front panel (fixings supplied with the cases).

Close

M7000742

Front Panel P – C325
product added to your basket
Aluminum
Traffic Gray A RAL 7042
13.07″x0.08″x9.48″

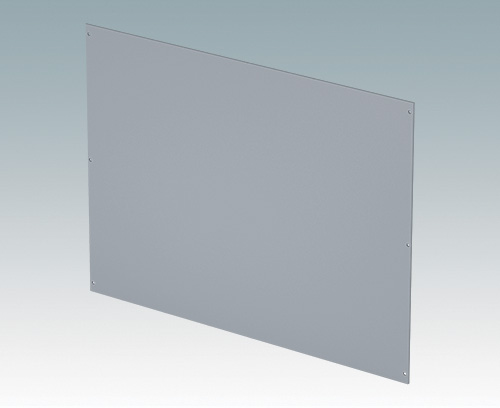

M7000744 Front Panel P – C336

M7000744

Front Panel P – C336 Painted front panel for enclosure version C336.

Supply Front panel (fixings supplied with the cases).

Close

M7000744

Front Panel P – C336
product added to your basket
Aluminum
Traffic Gray A RAL 7042
13.07″x0.08″x13.81″
M7000746 Front Panel P – C430

M7000746

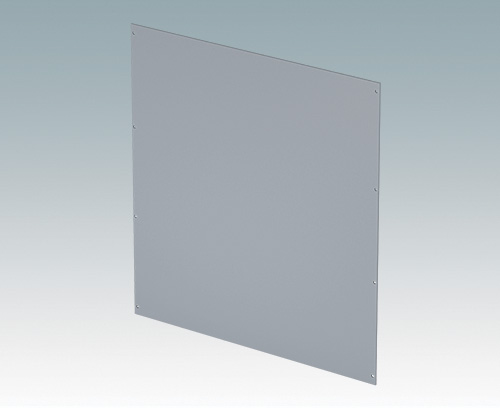

Front Panel P – C430 Painted front panel for enclosure version C430.

Supply Front panel (fixings supplied with the cases).

Close

M7000746

Front Panel P – C430
product added to your basket
Aluminum
Traffic Gray A RAL 7042
15.43″x0.08″x11.45″

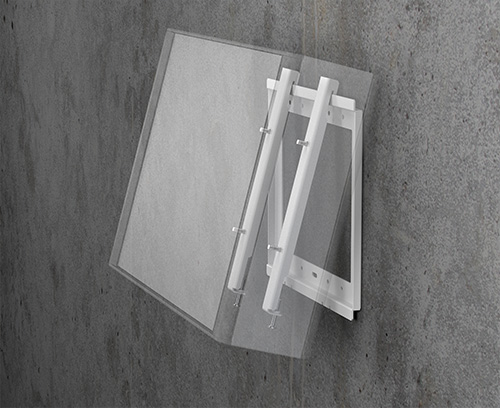

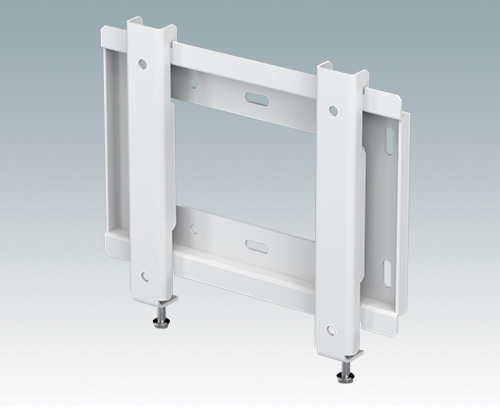

M7000900 Wall Mounting Kit S

M7000900

Wall Mounting Kit S Wall mounting kit for case version C218.

Supply Wall Plate (x1), case bracket (x2), M4 x 6 mm (x4), M4 x 25 mm (x2)

Close

M7000900

Wall Mounting Kit S
product added to your basket
Mild Steel CR4
Traffic White RAL 9016
6.18″x5.71″x0.63″

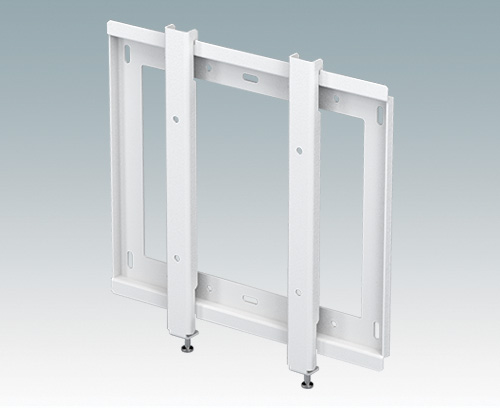

M7000905 Wall Mounting Kit L

M7000905

Wall Mounting Kit L Wall mounting kit for case versions C325, C336 and C430.

Supply Wall plate (x1), case bracket (x2), M4 x 6 mm (x4), M4 x 25 mm (x2)

Close

M7000905

Wall Mounting Kit L
product added to your basket
Mild Steel CR4
Traffic White RAL 9016
8.86″x9.25″x0.63″

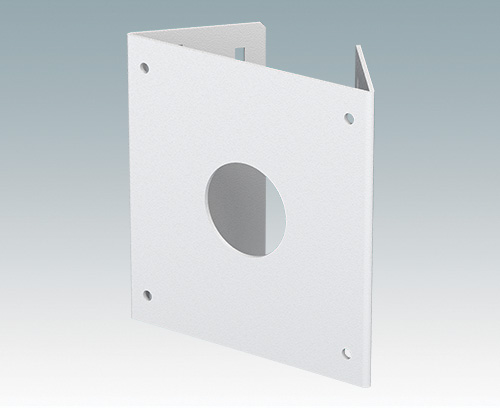

M7000920 Pole Mount Bracket

M7000920

Pole Mount Bracket Pole mounting bracket for fixing the enclosure to a pole ⌀1.97" or larger (mounting straps not included). Fits to the VESA mounting holes on all enclosure versions.

Supply Bracket (x1), M4 x 6 mm (x4)

Close

M7000920

Pole Mount Bracket
product added to your basket
Mild Steel CR4
Traffic White RAL 9016
4.72″x4.92″x1.77″
M7000940 Internal Mounting Plate Kit – C218

M7000940

Internal Mounting Plate Kit – C218 Internal mounting plate kit for enclosure size C218. For mounting heavy PCB assemblies, power supplies etc. Fits to the M3 mounting pillars in the rear panel.

Supply Mounting plate, M3 x 8 (x4)

Close

M7000940

Internal Mounting Plate Kit – C218
product added to your basket
Aluminum
Natural finish
7.13″x6.10″x0.06″

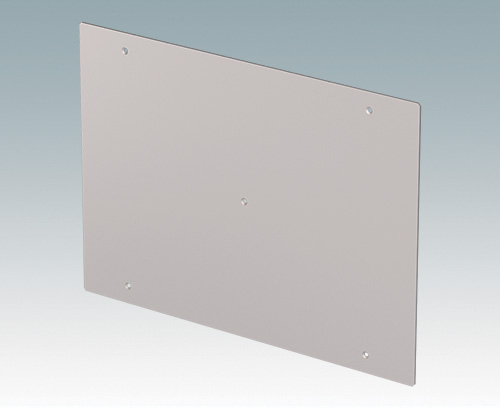

M7000942 Internal Mounting Plate Kit – C325

M7000942

Internal Mounting Plate Kit – C325 Internal mounting plate kit for enclosure size C325. For mounting heavy PCB assemblies, power supplies etc. Fits to the M3 mounting pillars in the rear panel.

Supply Mounting plate, M3 x 8 (x5)

Close

M7000942

Internal Mounting Plate Kit – C325
product added to your basket
Aluminum
Natural finish
12.24″x8.86″x0.06″

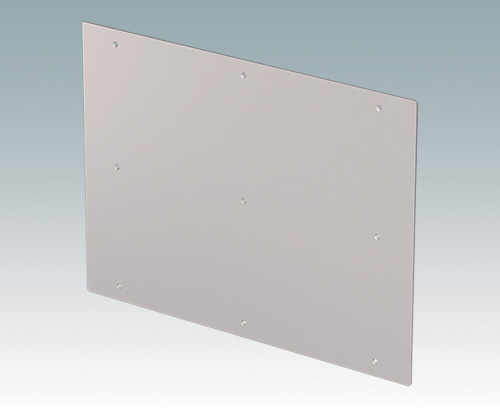

M7000944 Internal Mounting Plate Kit – C336

M7000944

Internal Mounting Plate Kit – C336 Internal mounting plate kit for enclosure size C336. For mounting heavy PCB assemblies, power supplies etc. Fits to the M3 mounting pillars in the rear panel.

Supply Mounting plate, M3 x 8 (x9)

Close

M7000944

Internal Mounting Plate Kit – C336
product added to your basket
Aluminum
Natural finish
12.24″x13.19″x0.06″

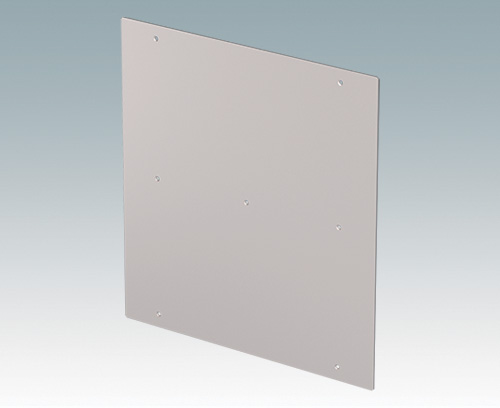

M7000946 Internal Mounting Plate Kit – C430

M7000946

Internal Mounting Plate Kit – C430 Internal mounting plate kit for enclosure size C430. For mounting heavy PCB assemblies, power supplies etc. Fits to the M3 mounting pillars in the rear panel.

Supply Mounting plate, M3 x 8 (x7)

Close

M7000946

Internal Mounting Plate Kit – C430
product added to your basket
Aluminum
Natural finish
14.61″x10.83″x0.06″
