M7036406 TECHNOMET-CONTROL C336V
Scroll

M7036406

TECHNOMET-CONTROL C336V

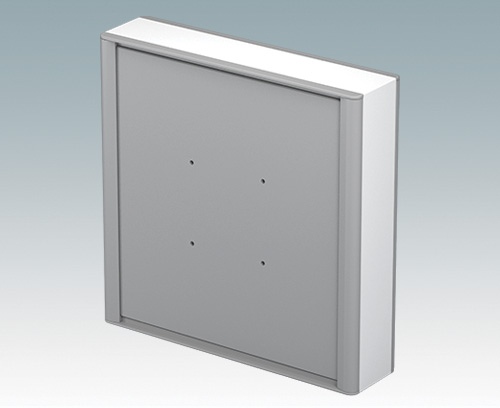

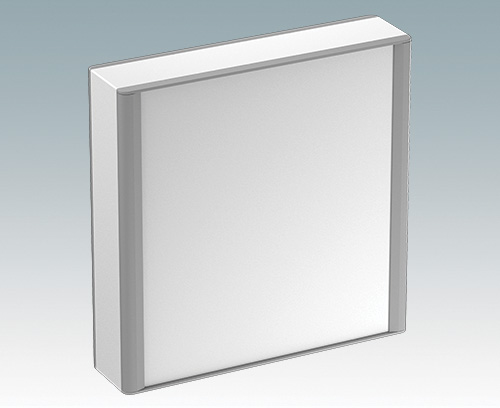

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10

Version

With VESA mount

Supply

Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x16), M4 x 16 mm (x8). Supplied assembled.

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M7036406

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M7000704 Front Panel A – C336

M7000704

Front Panel A – C336 Anodized front panel for enclosure version C336.

Supply Front panel (fixings supplied with the cases).

Close

M7000704

Front Panel A – C336
product added to your basket
Aluminum
Matt anodized
13.07″x0.08″x13.81″
M7000724 Front Panel P – C336

M7000724

Front Panel P – C336 Painted front panel for enclosure version C336.

Supply Front panel (fixings supplied with the cases).

Close

M7000724

Front Panel P – C336
product added to your basket
Aluminum
Traffic White RAL 9016
13.07″x0.08″x13.81″
M7000744 Front Panel P – C336

M7000744

Front Panel P – C336 Painted front panel for enclosure version C336.

Supply Front panel (fixings supplied with the cases).

Close

M7000744

Front Panel P – C336
product added to your basket
Aluminum
Traffic Gray A RAL 7042
13.07″x0.08″x13.81″
M7000905 Wall Mounting Kit L

M7000905

Wall Mounting Kit L Wall mounting kit for case versions C325, C336 and C430.

Supply Wall plate (x1), case bracket (x2), M4 x 6 mm (x4), M4 x 25 mm (x2)

Close

M7000905

Wall Mounting Kit L
product added to your basket
Mild Steel CR4
Traffic White RAL 9016
8.86″x9.25″x0.63″
M7000920 Pole Mount Bracket

M7000920

Pole Mount Bracket Pole mounting bracket for fixing the enclosure to a pole ⌀1.97" or larger (mounting straps not included). Fits to the VESA mounting holes on all enclosure versions.

Supply Bracket (x1), M4 x 6 mm (x4)

Close

M7000920

Pole Mount Bracket
product added to your basket
Mild Steel CR4
Traffic White RAL 9016
4.72″x4.92″x1.77″
M7000944 Internal Mounting Plate Kit – C336

M7000944

Internal Mounting Plate Kit – C336 Internal mounting plate kit for enclosure size C336. For mounting heavy PCB assemblies, power supplies etc. Fits to the M3 mounting pillars in the rear panel.

Supply Mounting plate, M3 x 8 (x9)

Close

M7000944

Internal Mounting Plate Kit – C336
product added to your basket
Aluminum
Natural finish
12.24″x13.19″x0.06″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Traffic white/traffic gray RAL 9016/7042
Standards
REACH compliant
RoHS compliant
VESA MIS-D 100
Width
14.173″
360 mm
Height
14.173″
360 mm
Depth
3.740″
95 mm

Catalog Pages

Drawings

3D Models

Weight/1 part
2.2 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
