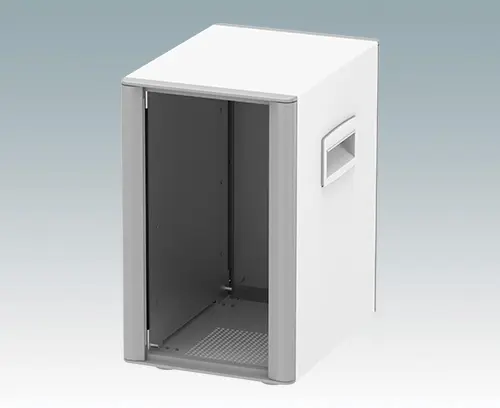

M6417656 Technomet TX124S
Scroll

M6417656

Technomet TX124S

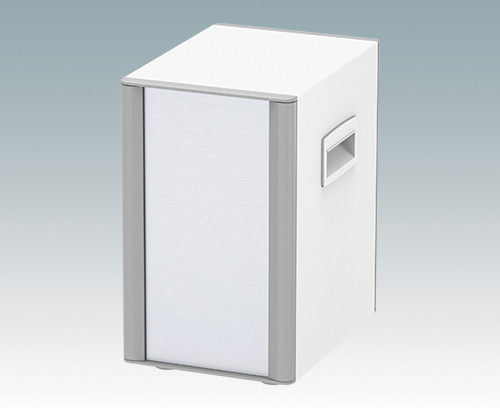

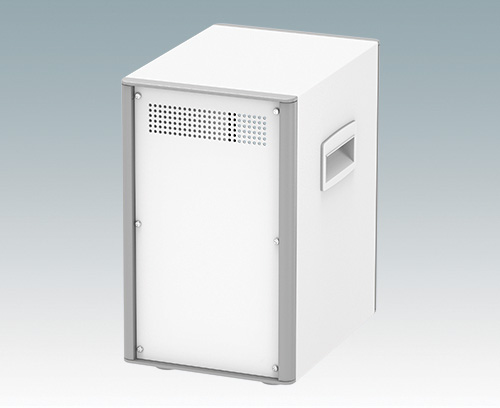

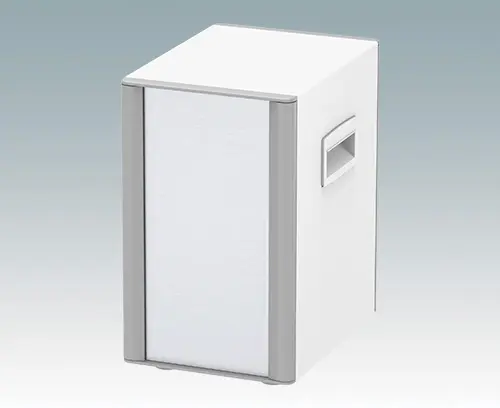

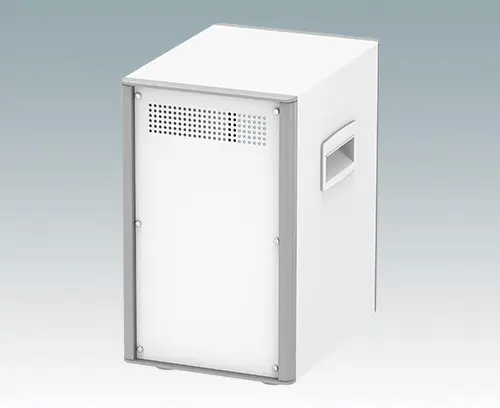

Highly attractive tower style aluminum enclosures for instrumentation. Space-saving footprint maximizes tabletop or workstation space. Modern and cohesive design with no visible fixing screws. Diecast front and rear bezels fit flush in the case body. Snap-on front and rear trims hide the case and front panel screws. Ventilation holes in the base and rear panel. Internal chassis for mounting three or four shelves (accessories) for PCBs and assemblies. M4 earth points on all panels. Supplied with side handles and non-slip ABS feet. Order front panels, shelves and PCB guides separately. Order your own fully customized version.

Version

Tower format

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), M3 x 6 mm (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6417656

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M6400712 Front Panel 124

M6400712

Front Panel 124 Front panel for Technomet TX124S.

Supply Front panel (fixings supplied with the cases).

Close

M6400712

Front Panel 124
product added to your basket
Aluminum
Matt anodized
5.83″x0.08″x10.66″
M6400812 Shelf Kit 124

M6400812

Shelf Kit 124

Internal shelf kit for tower version TX124S. Designed for mounting PCBs and electronic assemblies. The shelf is assembled to the internal chassis using the fixings included in the kit. Up to three shelves can be fitted to the TX124S size tower.

Supply Shelf (1.5 mm natural aluminum), M4 x 12 (x4)

Close

M6400812

Shelf Kit 124
product added to your basket
Aluminum
Natural finish
5.12″x0.59″x8.70″
  • Technical Data
  • 3D-Models & Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Traffic white/traffic gray A RAL 9016/7042
Standards
REACH compliant
RoHS compliant
Width
6.890″
175 mm
Depth
9.449″
240 mm
Height
11.024″
280 mm
PCB length, base
8.740″
222 mm
PCB width, base
5.079″
129 mm

Catalog Pages

Drawings

3D Models

Weight/1 part
2.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
