M5330109 UNIDESK M300 IP 54
Scroll

M5330109

UNIDESK M300 IP 54

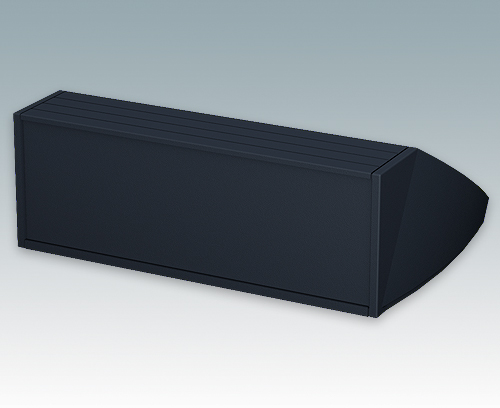

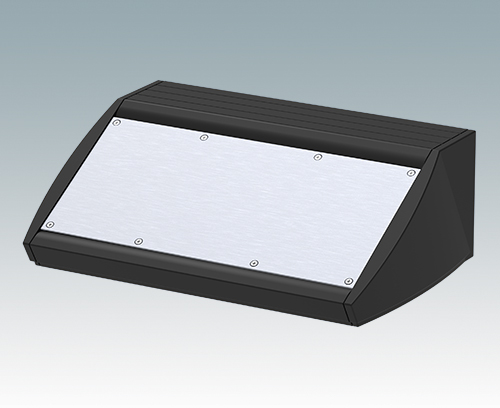

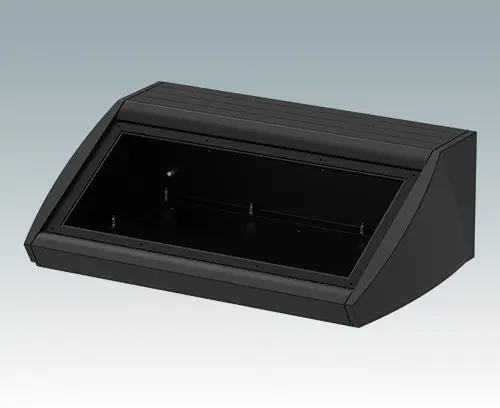

Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version

With sealing gaskets (IP 54)

Supply

Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5330109

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M5301503 Front panel M300

M5301503

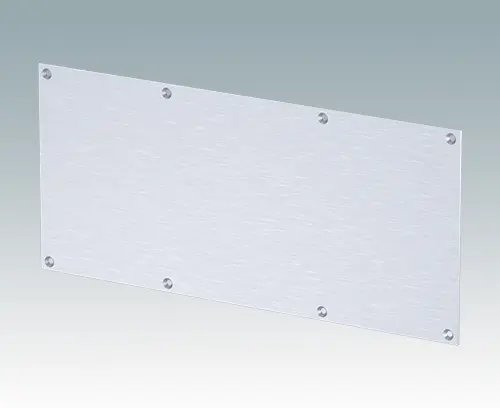

Front panel M300 Anodized aluminum front panel for UNIDESK M300 cases

Supply Panel (fixing screws supplied with cases).

Close

M5301503

Front panel M300
product added to your basket
Aluminum
Matt anodized
10.63″x0.08″x4.84″
M5302213 Wall mount kit M300

M5302213

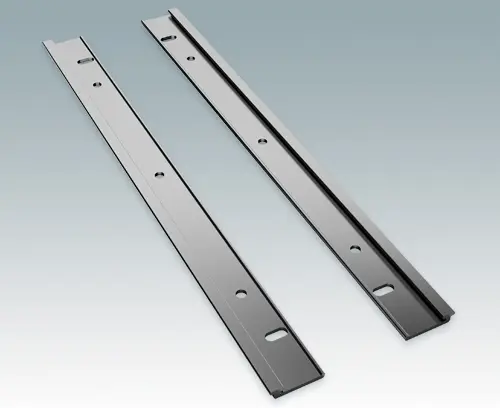

Wall mount kit M300 Wall mounting kit for UNIDESK M300 cases. The two extrusion profiles fit into grooves in the rear or underside of the case. This allows the UNIDESK to be mounting vertically or horizontally on a wall or other surface. The profiles have optional fixing holes to allow for easier adjustment when mounting.

Supply 2 anodized extrusion profiles

Close

M5302213

Wall mount kit M300
product added to your basket
Aluminum
Matt anodized
M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm fixing screws.

Close

M5600001

PCB mounting kit
product added to your basket
PA 6
Black RAL 9005
M5600010 PCB Fixing Screws, M3

M5600010

PCB Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB Fixing Screws, M3
product added to your basket
Steel
Zinc coated
0.24″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Protection class
IP 54
Color
Black RAL 9005
Standards
REACH compliant
RoHS compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
11.811″
300 mm
Depth
7.874″
200 mm
Height
4.016″
102 mm
PCB length, base
5.787″
147 mm
PCB width, base
9.646″
245 mm

Catalog Pages

Assembly Instructions (Group)

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
1.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
