M5619225 UNIMET 19
Scroll

M5619225

UNIMET 19" 2Ux11.02"

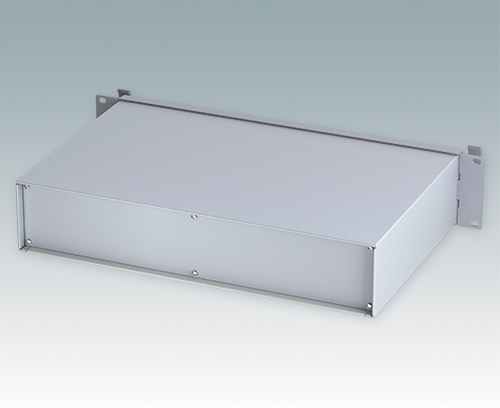

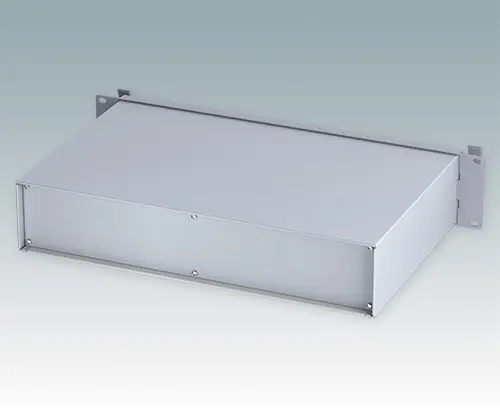

Modern high quality 19" rack case with integrated 'comfort handles'. All aluminum design with highly attractive front bezel and fabricated case body. Removable base and rear panels for easy access. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panel separately.

Supply

19" front bezel, top cover, base panel, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x6), M3 x 8 mm (x6) and M3 x 8 mm (x4). Supplied fully assembled.

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5619225

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm fixing screws.

Close

M5600001

PCB mounting kit
product added to your basket
PA 6
Black RAL 9005
M5600010 PCB Fixing Screws, M3

M5600010

PCB Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB Fixing Screws, M3
product added to your basket
Steel
Zinc coated
0.24″
M5600015 Case Feet Kit 1

M5600015

Case Feet Kit 1 Universal case feet for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness. Call us for a free sample.

Version Without tilt legs.

Supply Foot molding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

Close

M5600015

Case Feet Kit 1
product added to your basket
ABS (UL 94 HB)
Light gray RAL 7035
1.34″x0.67″x0.63″
M5600045 Case Feet Kit 2

M5600045

Case Feet Kit 2 Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs.

Supply Foot molding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

Close

M5600045

Case Feet Kit 2
product added to your basket
ABS (UL 94 HB)
Light gray RAL 7035
1.34″x0.67″x0.63″
M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M5900020 Front panel kit (2U)

M5900020

Front panel kit (2U) Anodized aluminum front panel kit for 2U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5900020

Front panel kit (2U)
product added to your basket
Aluminum
Matt anodized
15.45″x0.08″x2.64″
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light gray RAL 7035
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Light gray/window gray RAL 7035/7040
Standards
DIN 41494
REACH compliant
IEC 60297-3
RoHS compliant
Height
3.465″
88 mm
Width
19.000″
482.6 mm
Depth
11.024″
280 mm
Height Unit
2 U
PCB length, base
9.646″
245 mm
PCB width, base
14.173″
360 mm

Catalog Pages

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
2.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
