INSTALLING SIEMENS, TURCK AND BEIJER DISPLAYS IN TECHNOMET-CONTROL HMI ENCLOSURES

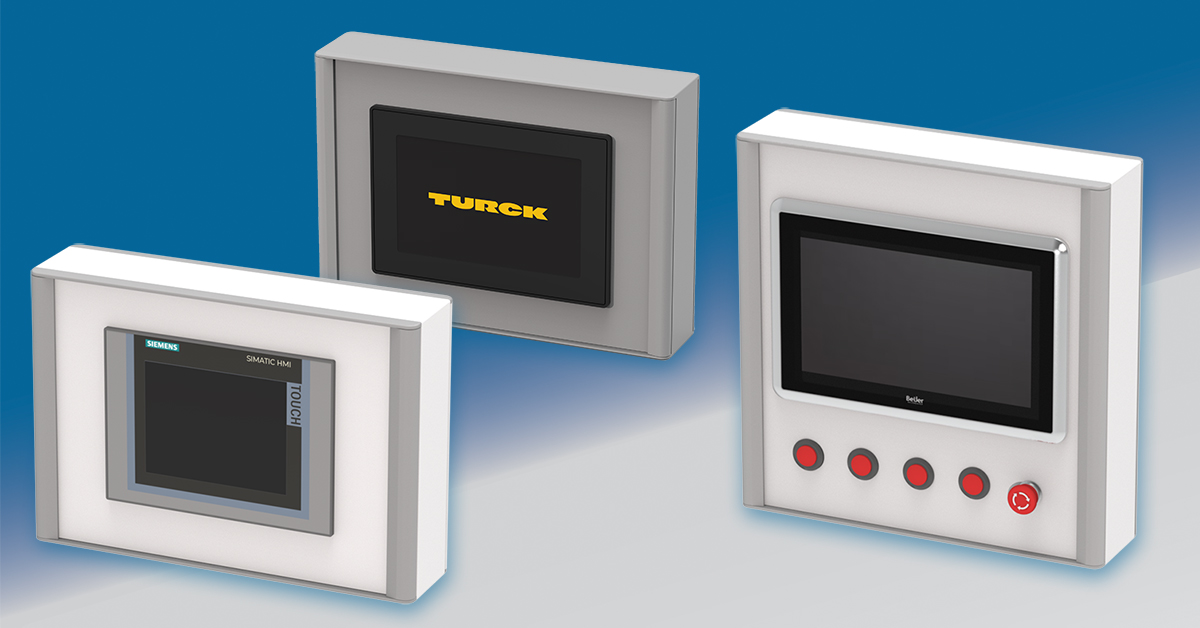

TECHNOMET-CONTROL VESA/WALL/POLE-MOUNT ENCLOSURES FOR TOUCH SCREENS AND DISPLAYS

In this blog we provide the installation details for mounting Siemens, Turck Banner and Beijer displays in TECHNOMET-CONTROL enclosures. (Other compatible displays include Beckhoff and B&R).

Elegant, robust TECHNOMET-CONTROL is our premium aluminum enclosure for VESA-mount electronics: HMI panel PCs, touch screens and standard displays. It can be fitted to suspension arms, walls, poles and brackets.

These attractive aluminum enclosures have a cohesive design featuring stylish flush-fit bezels that showcase the quality and sophistication of the electronics inside. Snap-on trims hide all the assembly screws. Standard VESA MIS-D 100 mountings on the rear panel can be used for mounting the enclosures on machines, walls etc. There is plenty of room for connectors, and the removable base panel offers space for cable entry. All the case panels are fitted with M4 threaded pillars for earth connections. Accessories include wall/machine mounting kits, a pole mounting bracket, front panels and internal mounting plate kits.

TECHNOMET-CONTROL is available in four standard sizes and can be specified in two standard color schemes: traffic gray A (RAL 7042) and traffic white (RAL 9016)/traffic gray A (RAL 7042). Custom sizes and colors can be provided on request.

TECHNOMET-CONTROL RANGE

Use this table to view the ordering information of each TECHNOMET-CONTROL housing referenced in the display installation guides below.

For full technical specifications including drawings and 3D models, see the TECHNOMET-CONTROL range overview page.

TECHNOMET-CONTROL >>

INSTALLING SIEMENS KTP/TP DISPLAYS IN TECHNOMET-CONTROL

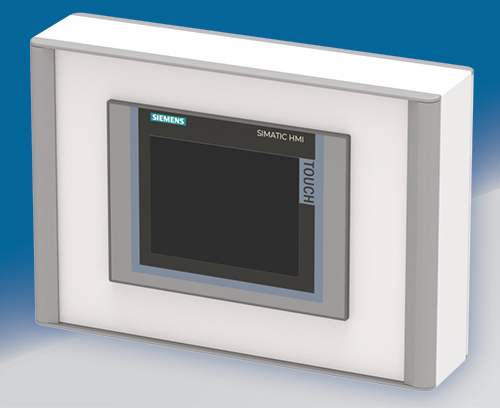

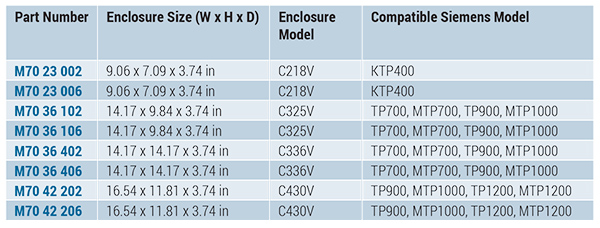

TECHNOMET-CONTROL was developed with Siemens KTP and TP HMI touch screen panels very much in mind. These premium enclosures can accommodate the following Siemens display models: KTP400, TP700, MTP700, TP900, MTP1000, TP1200, MTP1200. View the table below to see which size of TECHNOMET-CONTROL you’ll need for your Siemens display.

FRONT PANEL CUTOUT DETAILS

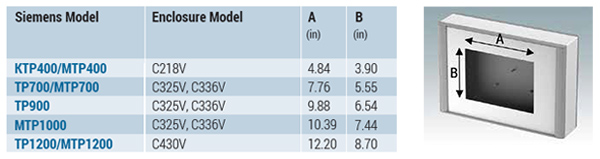

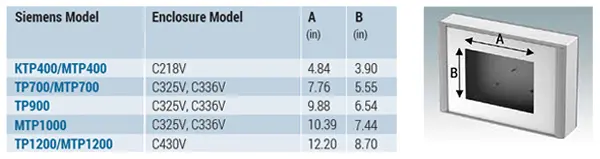

Please see the table below for the front panel punching details for Siemens KTP, TP and MTP displays. We can supply pre-punched front panels as a custom service. Panels are pre-punched with apertures for the display and for any other controls or interfaces. Photo-quality digital printing of logos, legends and graphics is also available.

Download the Siemens installation datasheet >>

INSTALLING TURCK BANNER DISPLAYS IN TECHNOMET-CONTROL ENCLOSURES

Increasingly our customers are specifying TECHNOMET-CONTROL for Turck Banner displays. These displays have become well regarded – particularly in the automation sector – since Hans Turck GmbH and Banner Engineering Corp. formed their joint venture in 1990 .

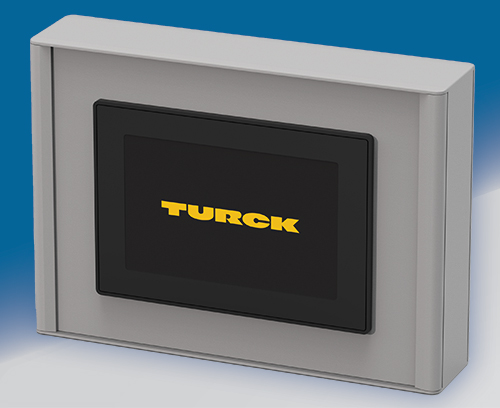

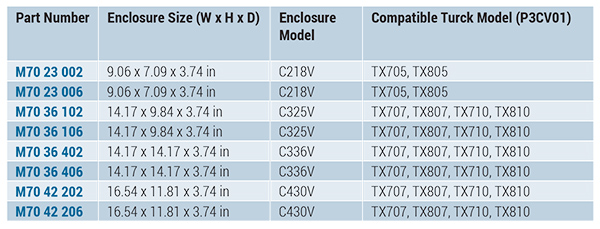

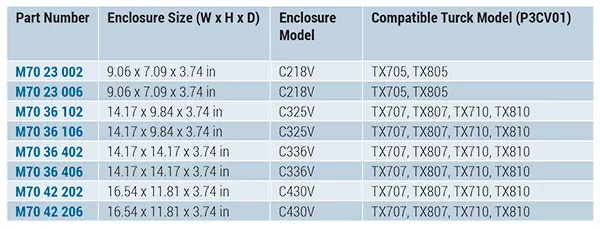

Turck Banner displays are known for their reliability and durability. TECHNOMET-CONTROL enclosures are compatible with Turck Banner TX700 and TX800 HMI touch panels: TX705-P3CV01, TX805-P3CV01, TX707-P3CV01, TX807-P3CV01, TX710-P3CV01 and TX810-P3CV01. View the table below to see which size of TECHNOMET-CONTROL is right for your Turck Banner display.

FRONT PANEL CUTOUT DETAILS

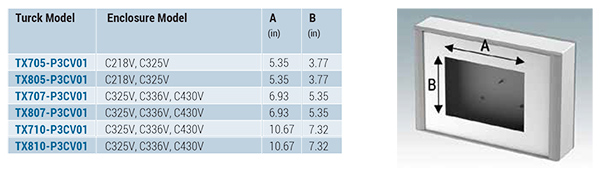

Please see the table below for the front panel punching details for Turck Banner displays. We can supply pre-punched front panels as a custom service. Panels are pre-punched with apertures for the display and for any other controls or interfaces. Photo-quality digital printing of logos, legends and graphics is also available.

Download the Turck installation datasheet >>

INSTALLING BEIJER DISPLAYS INTO TECHNOMET-CONTROL ENCLOSURES

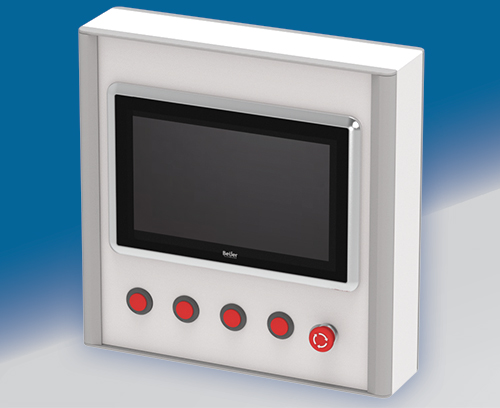

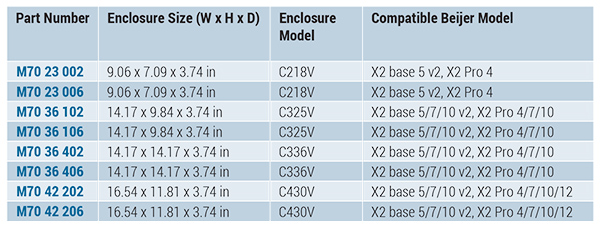

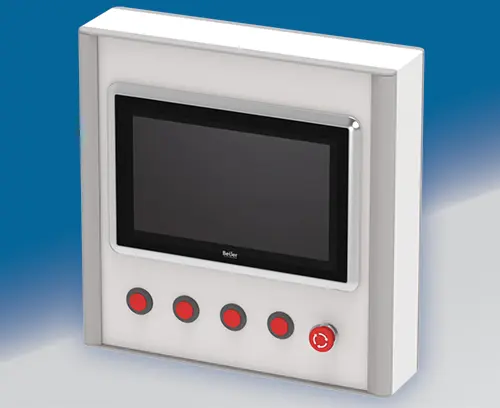

Beijer displays are also tough, dependable and designed for use in harsh industrial environments. Beijer’s X2 series represents “the next generation of HMI panels”. Specify TECHNOMET-CONTROL for Beijer X2 base and X2 pro displays: X2 base 5 v2, X2 base 7 v2, X2 base 10 v2, X2 pro 4, X2 pro 7, X2 pro 10 and X2 pro 12. View the table below for more details.

FRONT PANEL CUTOUT DETAILS

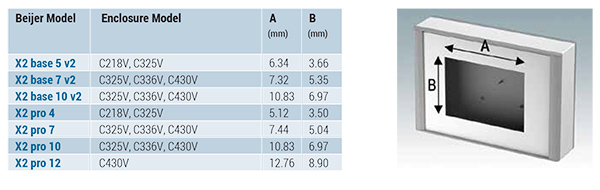

Please see the table below for the front panel punching details for Beijer X2 displays. We can supply pre-punched front panels as a custom service. Panels are pre-punched with apertures for the display and for any other controls or interfaces. Photo-quality digital printing of logos, legends and graphics is also available.

Download the Beijer installation datasheet >>

SPECIFY CUSTOMIZED TECHNOMET-CONTROL ENCLOSURES

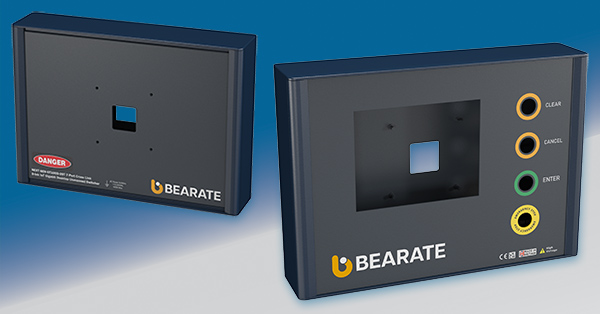

All these TECHNOMET-CONTROL enclosures can be supplied fully customized so they can go directly to your production line, ready for the installation of your electronics.

In-house customization services at METCASE include:

• bespoke sizes – TECHNOMET-CONTROL can be specified in custom heights, widths and depths
• custom front panels – the typical minimum order quantity is 10 pieces, based on the size of the panel
• CNC machining – punching, folding, milling, drilling and tapping
• fixings and inserts – choose from a wide selection, including threaded inserts and studs
• photo-quality digital printing of legends, logos and graphics.

METCASE customization services >>

GET EXPERT ADVICE ON TOUCH SCREEN DISPLAY ENCLOSURES

Contact the METCASE team for specialist advice on how to specify the best standard or customized metal enclosures for your touch screens and displays.
