M6435225 Technomet R312
Scroll

M6435225

Technomet R312

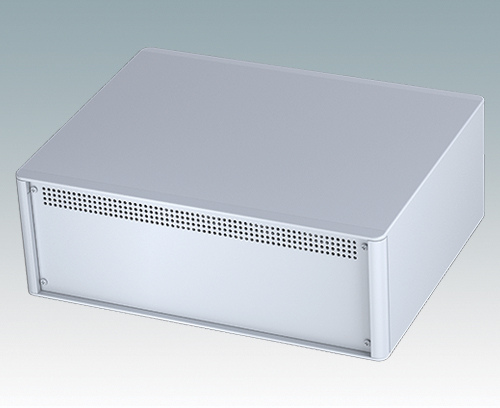

Modern and highly attractive instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted in the base. The internal chassis can also be fitted with 7 slide-in PCBs using the accessory snap-in guide M6490010 (order 4 guides per PCB).

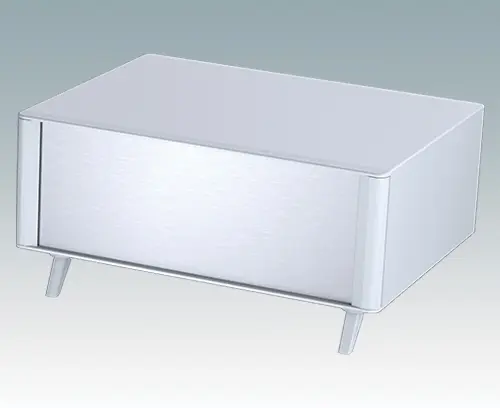

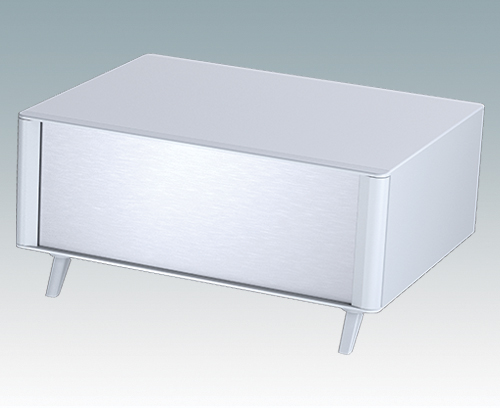

The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version

Without handle/bail arm

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), ABS tilt legs (x2), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6435225

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M5600010 PCB Fixing Screws, M3

M5600010

PCB Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB Fixing Screws, M3
product added to your basket
Steel
Zinc coated
0.24″
M6400706 Front Panel 312

M6400706

Front Panel 312 Front panel for Technomet R312 and R312H.

Supply Front panel (fixings supplied with the cases).

Close

M6400706

Front Panel 312
product added to your basket
Aluminum
Matt anodized
12.68″x0.08″x4.56″
M6490010 PCB Guide, 4.00"

M6490010

PCB Guide, 4.00" Snap-in PCB guide for 0.02" to 0.08" (0.5 mm to 2.0 mm) thick PCBs. See drawing for punching details. Suitable for Technomet R210, R210H, R212, R212H, SL212, R215S, R215H, R310, R310H, R312, R312H, R315S, R315H and SL315S. For Technomet enclosures see ordering details below:

Technomet Model Guides required per PCB PCB positions in case
R210/R210H 4 5
R212/R212H 4 7
R215S/R215H 4 9
R310/R310H 4 5
R312/R312H 4 7
R215S/R215H 4 9

Supply 1 PCB guide

Close

M6490010

PCB Guide, 4.00"
product added to your basket
PA 6/6 (UL 94 V-0)
Natural finish
4.00″x0.30″x0.14″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Light gray RAL 7035
Standards
REACH compliant
RoHS compliant
Width
13.780″
350 mm
Depth
10.827″
275 mm
Height
4.921″
125 mm
PCB length, base
10.118″
257 mm
PCB width, base
11.969″
304 mm

Catalog Pages

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
2.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
