M6219549 COMBIMET 19
Scroll

M6219549

COMBIMET 19" 5Ux10.43" Vented

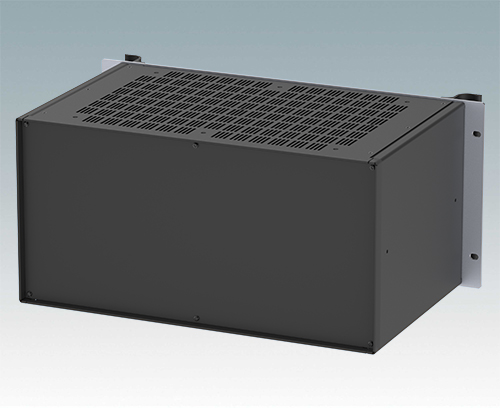

Modern aluminum 19" rack case with an anodized front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.

Version

With ventilation

Supply

19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6219549

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm fixing screws.

Close

M5600001

PCB mounting kit
product added to your basket
PA 6
Black RAL 9005
M5600010 PCB Fixing Screws, M3

M5600010

PCB Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB Fixing Screws, M3
product added to your basket
Steel
Zinc coated
0.24″
M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M5900018 19" mounting kit black screws

M5900018

19" mounting kit black screws Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack. Black screws and black cup washers.

Supply M6 caged nuts (x4), M6 x 16 mm black screw (x4) and black plastic cup washer (x4).

Close

M5900018

19" mounting kit black screws
product added to your basket
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light gray RAL 7035
M6200265 Mounting plate (10.43")

M6200265

Mounting plate (10.43") Internal mounting plate kit for COMBIMET 19" rack cases 10.43" deep. For mounting PCBs and electronic assemblies. Mounts to pre-punched holes in case base panels with the nylon pillars and screws supplied.

Supply Mounting plate, M3 nylon screw pillars (x9), M3 x 6 mm screws (x18).

Close

M6200265

Mounting plate (10.43")
product added to your basket
Aluminum
Natural finish
13.19″x9.06″x0.06″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
Black RAL 9005
Standards
DIN 41494
REACH compliant
IEC 60297-3
RoHS compliant
Height
8.701″
221 mm
Width
19.000″
482.6 mm
Depth
10.433″
265 mm
Height Unit
5 U
PCB length, base
9.055″
230 mm
PCB width, base
13.189″
335 mm

Catalog Pages

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
4 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
